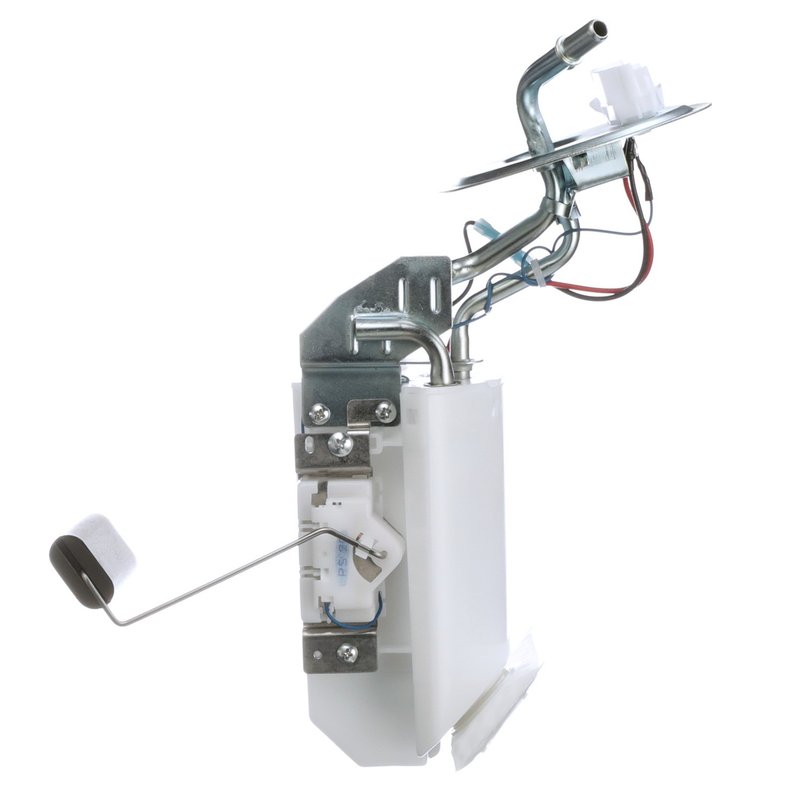

Delphi HP10275 Fuel Pump Hanger Assembly
| Brand | Delphi HP10275 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 21 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 93.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Lock Ring, Retainers, Screws, Seal, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 20.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 43 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Fits | Ford · 6 vehicles |
Standard replacement. OE heritage built into an aftermarket fuel pump hanger assembly.
Electric fuel pump. Delivers 21 average flow rating with 93 psi maximum pressure.
Complete assembly. Includes float arm, lock ring, retainers, screws, seal, and instruction sheet.
Cross-references Airtex Fuel Pumps E2064MN, Bosch 67003 and Carter P74107 for the same application. See all 11.
Fuel Pump Hanger Assembly for Ford Trucks
Delphi HP10275 is a standard replacement fuel pump hanger assembly for select 1990-1991 Ford F-150, F-250, and F-350 models with an 18 gallon tank and steel aft axle tank. It combines the in-tank electric pump, fuel level sender, strainer, seal, and hanger components in one service assembly for gas applications.
Key Features
- In-tank electric fuel pump assembly for 12-volt gas systems
- Maximum pressure rating of 93 psi with 43 psi system pressure
- Average flow rating of 21 and average current draw of 10
- Fuel level sender assembly included with 20 ohms empty and 160 ohms full resistance
- Quick-connect outlet design with two outlets and 0.375 in. outlet outside diameter
- External strainer and fuel pump strainer included
- Gasket or seal included for service replacement
- Pin-style, 4-terminal male electrical connection
Detailed Description
Delphi HP10275 fuel pump hanger assembly is built for direct replacement service on 1990-1991 Ford F-150, Ford F-250, and Ford F-350 trucks equipped with the specified 18 gallon steel aft axle tank. Delphi draws on OE experience and supplier knowledge developed over decades of original equipment work, bringing that engineering background into aftermarket fuel delivery parts. This assembly is intended for gas fuel systems and includes the fuel pump hanger, float arm, sender, seal, strainer, retainers, screws, lock ring, and instruction sheet as listed in the package contents.
This part cross-references Bosch 67003 and Carter P74107 for the same application. Delphi HP10275 is also referenced by part number DHP10275 in interchange listings.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Fuel pressure loss in the tank-mounted pump circuit
- Inaccurate fuel gauge readings from a worn sender
- Fuel starvation from a restricted or damaged strainer
- Service issues related to aging hanger and pump assembly components
Installation Notes and Tips
Confirm tank style, engine fuel system requirements, and connector style before installation. For 1990-1991 Ford F-150, F-250, and F-350 applications, the fitment notes specify an 18 gallon tank with a steel aft axle tank. Delphi also notes that fuel tank contamination is a leading cause of premature pump failure, and recommends cleaning the tank before installing a new pump; use of fuel tank cleaning kit FC01 is recommended.
Quality Assurance
Delphi builds this fuel pump hanger assembly using OE heritage and application knowledge developed through supplier relationships with major automakers. The HP10275 is a standard replacement part engineered for the listed Ford truck applications and fuel system specifications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | Ford | F-150 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1991 | Ford | F-250 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1991 | Ford | F-350 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1990 | Ford | F-150 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1990 | Ford | F-250 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1990 | Ford | F-350 | N/A | with 18 Gallon Tank; with Steel Aft Axle Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
