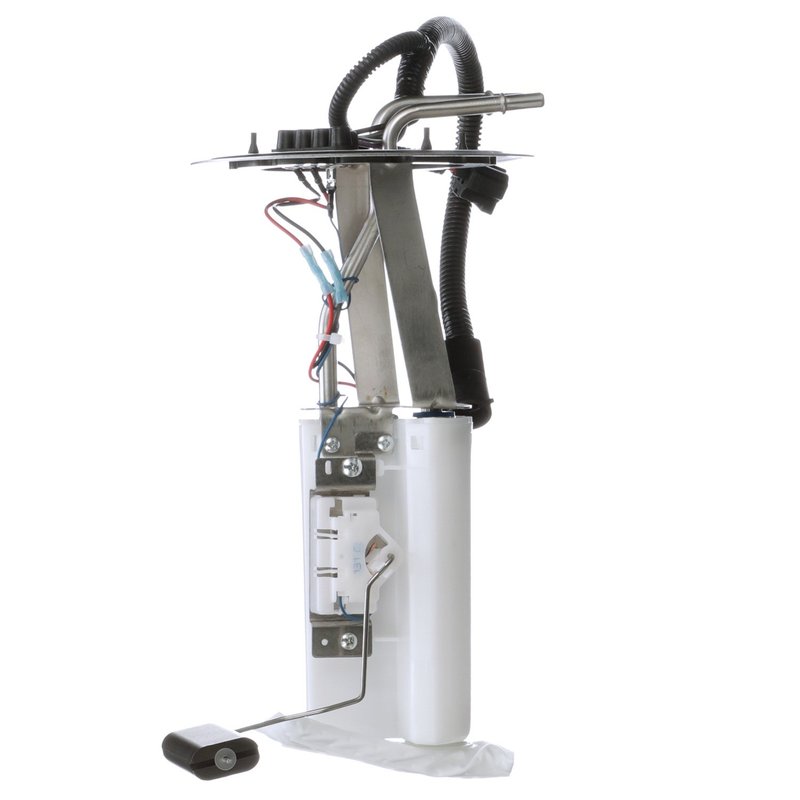

Delphi HP10276 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10276 fuel pump hanger assembly is designed specifically for Ford Explorer models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement requirements.

• Compatible with Ford Explorer vehicles
• 12.0 Volt electric fuel pump with 24 GPH average flow rating
• Includes external strainer and quick connect outlet fittings
• Fuel level sender assembly with float arm included
• Maximum system pressure of 43 psi and maximum pump pressure of 81 psi
• Blade-type male terminals with 7 terminal quantity
• Gasket and seal included for secure installation

Technical Specifications and Features

The Delphi HP10276 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375 inch outlet outside diameter with two quick connect outlets for efficient fuel flow. The pump delivers an average flow rating of 24 gallons per hour and maintains a system pressure of 43 psi, with a maximum pressure rating of 81 psi. The assembly includes an external strainer on the inlet side to protect the pump from contaminants. Electrical connections are made via seven male blade terminals, ensuring secure and reliable power delivery. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting accurate fuel level measurement. The package contains the fuel pump hanger assembly with float arm, bolts, washers, seal, and installation instructions.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford Explorer models
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Corrects inaccurate fuel level readings caused by a damaged sender assembly
• Prevents fuel contamination with the included external strainer
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

Installation of the Delphi HP10276 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections are clean and secure, and replace the included gasket and seal to prevent leaks. Follow the provided instructions carefully to avoid damage to the float arm or fuel lines. Verify system pressure after installation to confirm proper operation.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is manufactured to meet standard replacement quality standards. It includes a gasket and seal to ensure a proper fit and leak-free installation. While specific warranty details are not provided, Delphi products typically adhere to industry quality controls and reliability benchmarks suitable for professional automotive repair.
