Delphi HP10283 Fuel Pump Hanger Assembly
OE Quality 60-Day Returns
Delphi

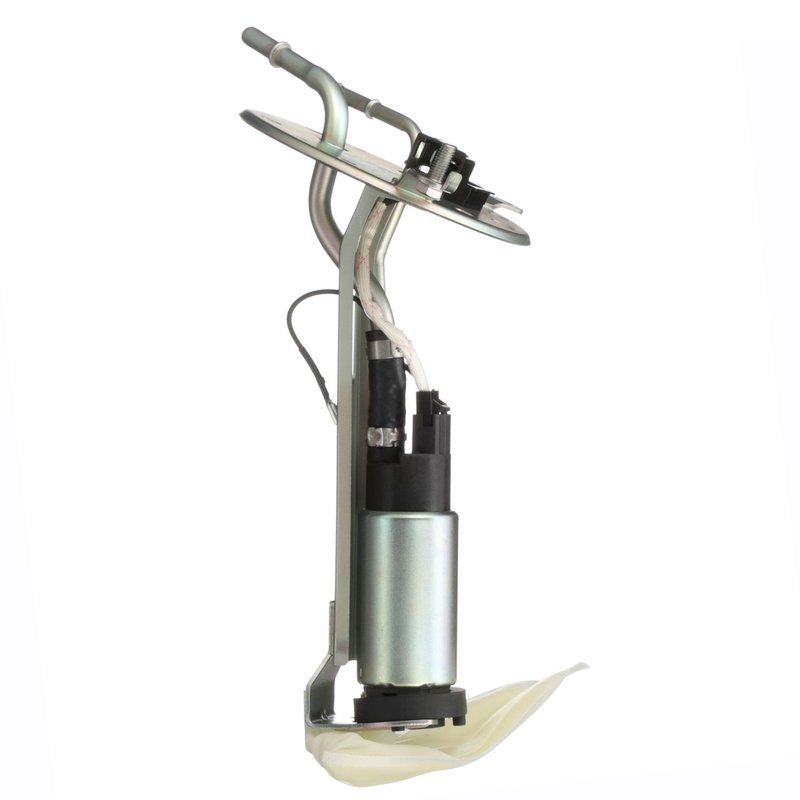

Delphi HP10283 Fuel Pump Hanger Assembly

Brand Delphi HP10283
Outlet Outside Diameter 0.3125
Voltage 12.0
Fuel Type Gas
Maximum Pressure 65.0
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 2
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Hose
Outlet Quantity 2
In Tank or External In tank
Internal Or External Strainer External
Average Current Draw 5
Pump Type Electric
Fuel Level Sender Assembly Included No
Item Grade Standard replacement
Package Contents Hanging pump, tank seal, instruction sheet
System Pressure 43 psi
Fits Honda · 7 vehicles

Standard replacement. A direct-fit fuel pump hanger assembly for straightforward service.

Electric pump. Runs on 12 volts with a 43 psi system pressure rating.

OE heritage. Built with Delphi's century of original-equipment experience.

Cross-references Airtex Fuel Pumps E8229, DENSO Auto Parts 951-0004 and MAHLE 67841 for the same application. See all 10.

$156.05Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $156.05
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Hanger Assembly options

Delphi HP10283 Fuel Pump Hanger Assembly

The Delphi HP10283 fuel pump hanger assembly is a standard replacement in-tank electric fuel pump for gasoline applications. Built with Delphi’s OE heritage and fuel system experience, it is specified for 1996-1997 Honda Accord models and includes the tank seal, strainer, and instruction sheet for a complete fuel delivery service.

Key Features

  • In-tank electric fuel pump hanger assembly for gasoline fuel systems
  • 12.0-volt design with 5 amp average current draw
  • Maximum pressure rating of 65.0 psi and system pressure of 43 psi
  • Blade terminals, male terminal gender, 2 terminals
  • External strainer included with gasket or seal included
  • Hose outlet design with 2 outlets and 0.3125 in. outlet outside diameter
  • Standard replacement grade for service work on fuel delivery systems

Detailed Description

Delphi HP10283 is an in-tank fuel pump hanger assembly engineered for gasoline-powered vehicles that require a direct replacement fuel delivery component. It is listed for 1996-1997 Honda Accord and 1996 Honda Accord, including California Emission System applications, making it a focused choice for Honda Accord fuel pump replacement work. Delphi draws on OE supplier experience to build aftermarket parts with the fit and function expected in service repairs. This part cross-references Airtex Fuel Pumps E8229 and DENSO Auto Parts 951-0004 for the same application.

What It Is Used For

  • Replacing a failing in-tank fuel pump on a 1996-1997 Honda Accord
  • Restoring fuel pressure in a Honda Accord with hard-start or no-start symptoms
  • Addressing fuel delivery issues caused by a worn electric pump or clogged strainer
  • Servicing California Emission System vehicles that require the correct fuel pump assembly
  • Repairing fuel starvation, hesitation, or stalling related to pump output loss

Installation Notes and Tips

Fits 1996-1997 Honda Accord, N/A. Fits 1996 Honda Accord, N/A. Clean the fuel tank before installing the pump to help prevent seal problems and premature pump failure. For 1996 Honda Accord vehicles with California Emission System, Delphi recommends cleaning the tank before installation and using the FC01 cleaning kit. Verify electrical connector style, outlet routing, and fuel system pressure requirements before installation.

Quality Assurance

Delphi builds this fuel pump hanger assembly using OE-focused engineering knowledge developed through long-term supplier experience with major automakers. The HP10283 is a standard replacement part designed for consistent fuel system service on the listed Honda Accord applications.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodel# DoorsPositionNotes
1997HondaAccord——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1996HondaAccordValue Package—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1996HondaAccordLX4 DoorN/ARecommended for vehicles with California Emission System; prevent premature fuel pump failure by cleaning the fuel tank before installing a new pump, use FC01 cleaning kit.
1996HondaAccordEX4 DoorN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1996HondaAccordDX4 DoorN/ARecommended for vehicles with California Emission System; prevent premature fuel pump failure by cleaning the fuel tank before installing a new pump, use FC01 cleaning kit.
1996HondaAccordLX2 DoorN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1996HondaAccordEX2 DoorN/AClean fuel tank before installing fuel pump to prevent future seal problems.
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E8229DENSO Auto Parts — 951-0004MAHLE — 67841Spectra Premium — SP8349H17040-SV1-L0117040-SV1-L02CHP10283E16009P72192SP1118
