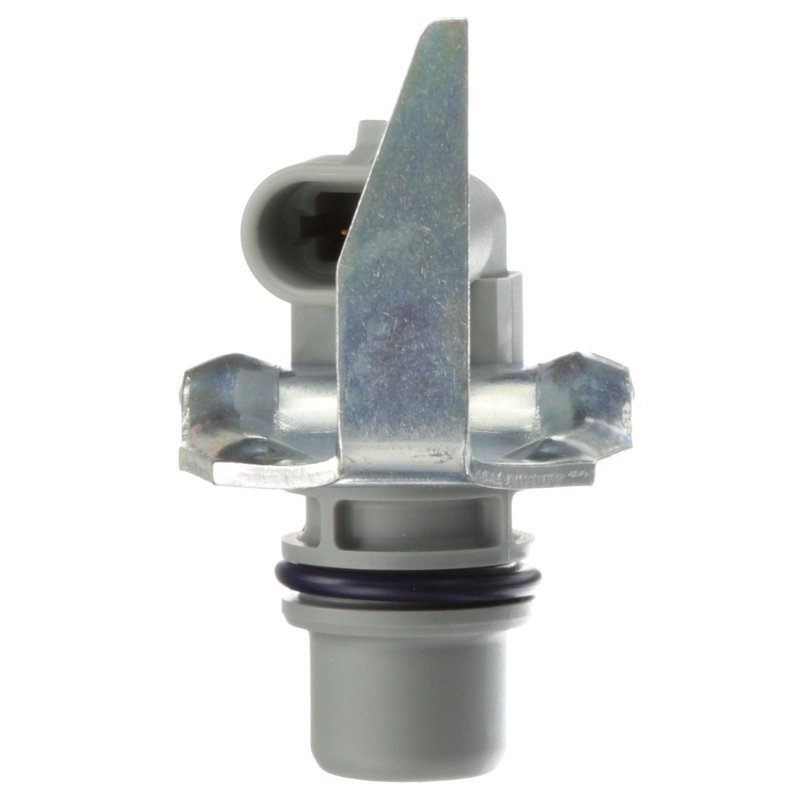

Delphi HTS101 Engine Camshaft Position Sensor

Overview of Delphi Engine Camshaft Position Sensor HTS101

The Delphi HTS101 engine camshaft position sensor is designed for precise engine timing and performance in select Ford vehicles. This gray sensor features a three-pin oval connector and includes a mounting bracket for secure installation.

• Color: Gray
• Terminal Type: Pin
• Connector Shape: Oval
• Terminal Quantity: 3
• Connector Gender: Female
• Terminal Gender: Male
• Mounting Bracket Included
• Package Contents: Engine camshaft position sensor, instruction sheet

Detailed Product Description

The Delphi HTS101 camshaft position sensor is engineered to provide accurate feedback on camshaft position to the engine control unit (ECU). Its gray housing and three-pin oval connector ensure compatibility with the wiring harnesses of Ford E-350 Club Wagon, E-350 Econoline, E-350 Super Duty, Excursion, F-250, and F-350 models. The sensor’s female connector and male terminals facilitate a secure electrical connection, while the included mounting bracket simplifies installation and ensures proper alignment. Note that the wiring harness is not included, so existing vehicle harnesses must be used.

Compatible Ford Models and Applications

This camshaft position sensor is compatible with a range of Ford vehicles, including:

• Ford E-350 Club Wagon
• Ford E-350 Econoline and Econoline Club Wagon
• Ford E-350 Super Duty
• Ford Excursion
• Ford F-250, F-250 HD, and F-250 Super Duty
• Ford F-350 and F-350 Super Duty

Common Issues Addressed by the HTS101 Sensor

• Engine misfires due to inaccurate camshaft position data
• Difficulty starting or stalling engines in compatible Ford models
• Check engine light triggered by camshaft sensor faults
• Poor fuel efficiency related to timing errors
• Irregular engine idle or performance problems

Installation Notes and Tips

Installation of the Delphi HTS101 sensor requires removal of the old camshaft position sensor and mounting the new sensor using the included bracket. Ensure the three-pin oval connector is properly aligned and securely connected to the vehicle’s wiring harness. Since the wiring harness is not included, verify the existing harness is in good condition before installation. Follow the instruction sheet provided for torque specifications and sensor orientation to avoid damage.

Quality Assurance and Warranty

Delphi manufactures the HTS101 camshaft position sensor to meet OEM standards for durability and performance. The sensor undergoes rigorous testing to ensure reliable operation in demanding engine environments. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
