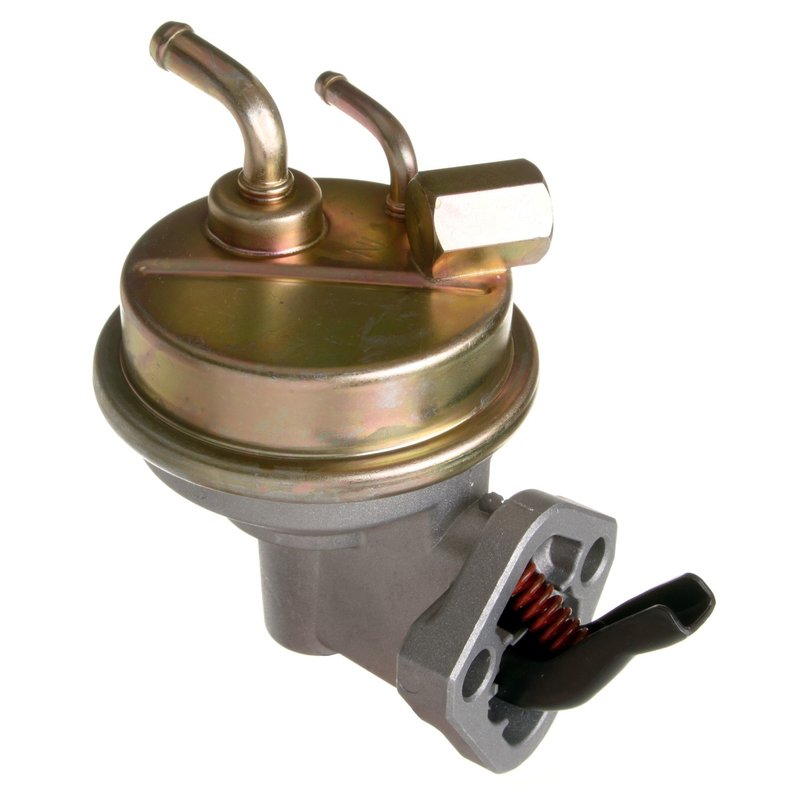

Delphi MF0004 Mechanical Fuel Pump

Reliable Mechanical Fuel Pump for Chevrolet and GMC Trucks

The Delphi MF0004 mechanical fuel pump is designed to provide consistent fuel delivery for a range of Chevrolet and GMC trucks. Engineered for gas fuel systems, this pump ensures steady flow and pressure to support your vehicle's performance.

• Inlet outside diameter: 0.375 inches
• Fuel type: Gasoline compatible
• Includes gasket for secure installation
• Inlet type: Hose bead connection
• Two threaded outlets with 5/8-18 UNF fitting size
• Average flow rating of 40 gallons per hour
• System pressure rating of 9 psi
• Standard replacement grade for reliable operation
• Package includes mechanical fuel pump, gasket, and instruction sheet

Product Details and Specifications

The Delphi MF0004 mechanical fuel pump is built to meet the fuel delivery needs of various Chevrolet and GMC models, including C10, C20, C30, C1500, C2500, C3500, Jimmy, K5 Blazer, K10, K20, K30, and their Suburban variants. Its 0.375-inch inlet diameter and hose bead inlet type allow for secure fuel line connections, while the dual threaded outlets with 5/8-18 UNF threads provide versatility for fuel routing. The pump supports an average flow rate of 40 gallons per hour at a system pressure of 9 psi, suitable for standard gas fuel systems. This mechanical fuel pump comes with a gasket and installation instructions to facilitate proper mounting and sealing.

Compatible Vehicles and Applications

This mechanical fuel pump is compatible with a wide range of Chevrolet and GMC trucks, including:

• Chevrolet C10, C20, C30 series
• Chevrolet C1500, C2500, C3500 and Suburban models
• GMC Jimmy and K5 Blazer
• GMC K10, K20, K30, K1500, K2500, K3500 and their Suburban variants
• GMC R30, V30, V3500 models

Common Issues Addressed by the Delphi MF0004

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance
• Leaks or poor sealing due to worn gaskets or fittings
• Inadequate fuel flow for gas-powered engines
• Replacement of worn or damaged mechanical fuel pumps in older trucks

Installation Notes and Tips

When installing the Delphi MF0004 mechanical fuel pump, ensure the gasket is properly seated to prevent fuel leaks. Use the included instruction sheet for guidance on mounting orientation and torque specifications. Verify that the hose bead inlet and threaded outlet connections are secure and compatible with your vehicle’s fuel lines. It is recommended to inspect fuel lines and fittings for wear or damage during installation to maintain system integrity.

Quality Assurance and Warranty

Delphi manufactures the MF0004 mechanical fuel pump to meet standard replacement grade specifications, ensuring dependable performance for your Chevrolet or GMC truck. The product includes a gasket and detailed instructions to support proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
