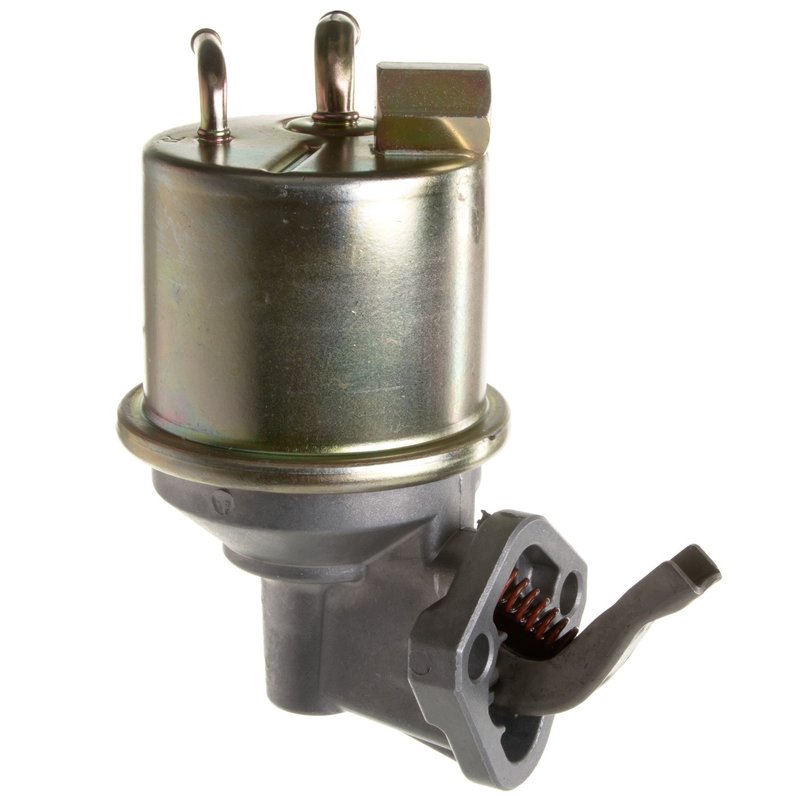

Delphi MF0011 Mechanical Fuel Pump

Delphi MF0011 Mechanical Fuel Pump

The Delphi MF0011 is a standard replacement mechanical fuel pump for gasoline applications that require a 6 psi system pressure and a 30 average flow rating. Built from Delphi’s OE heritage and decades of supplier experience, it is a direct-fit option for select Chevrolet and GMC trucks, vans, and passenger vehicles with a 3 line pump configuration.

Key Features

• Mechanical fuel pump for gas applications
• 6 psi system pressure
• 30 average flow rating
• Hose bead inlet with 0.375 in. outside diameter
• Threaded outlet with 5/8-18 UNF fitting size
• Two outlet ports
• Gasket or seal included
• Package contents include the pump, gasket, and instruction sheet
• Standard replacement grade for service repairs

Fitment and Application

Compatible with select Chevrolet C10, C20, C30, C10 Suburban, C20 Suburban, P20, P30, K10, K20, K30, G20, G30, Blazer, Malibu, Bel Air, Caprice, Impala, El Camino, Monte Carlo, and GMC C1500, C2500, C3500, P1500, P3500, G25, G35, Jimmy, and K3500 models equipped with a 3 line pump. Fits 1986 Chevrolet C20, N/A; 1985 Chevrolet C20, N/A; 1985 Chevrolet C20 Suburban, N/A; 1985 Chevrolet C30, N/A; 1984-1985 Chevrolet P30, N/A; 1985 GMC C2500, N/A; 1985 GMC C2500 Suburban, N/A; 1985 GMC C3500, N/A; 1985 GMC P3500, N/A; 1975-1984 Chevrolet C20, N/A; 1973-1984 Chevrolet C20 Suburban, N/A; 1975-1984 Chevrolet C30, N/A; 1979-1984 GMC C2500, N/A; 1979-1984 GMC C2500 Suburban, N/A; 1979-1984 GMC C3500, N/A; 1979-1984 GMC P3500, N/A; 1975-1983 Chevrolet P30, N/A; 1975-1980 Chevrolet C10, N/A; 1973-1980 Chevrolet C10 Suburban, N/A; 1979-1980 GMC C1500, N/A; 1979-1980 GMC C1500 Suburban, N/A; 1979 Chevrolet P20, N/A; 1976 Chevrolet P20, N/A; 1979 GMC K3500, N/A; 1979 GMC P1500, N/A; 1976-1978 Chevrolet K20, N/A; 1976-1978 Chevrolet K5 Blazer, N/A; 1977 Chevrolet K30, N/A; 1976 Chevrolet G20, N/A; 1975-1976 Chevrolet G30, N/A; 1976 Chevrolet K10, N/A; 1975-1976 GMC G25, N/A; 1976 GMC G35, N/A; 1976 GMC Jimmy, N/A; 1973-1974 GMC Jimmy, N/A; 1971-1975 Chevrolet El Camino, N/A; 1971-1975 Chevrolet Monte Carlo, N/A; 1973 Chevrolet Blazer, N/A; 1973 Chevrolet Malibu, N/A; 1971-1972 Chevrolet Bel Air, N/A; 1971-1972 Chevrolet Caprice, N/A; 1971-1972 Chevrolet Impala, N/A; and 1971-1972 Chevrolet Monte Carlo, N/A. This part cross-references Airtex Fuel Pumps 40963 and Carter M6628 for the same application.

What This Pump Helps Address

• Hard starting caused by weak fuel delivery
• Fuel starvation under load
• Low fuel pressure in carbureted systems
• Intermittent stalling from inconsistent pump output
• Restoration or repair of a worn mechanical fuel pump

Installation Notes and Tips

Verify the vehicle uses a 3 line pump before ordering. Confirm the inlet and outlet style, including the hose bead inlet and threaded 5/8-18 UNF outlet, against the original pump before installation. Use the included gasket during service, and follow the instruction sheet for proper mounting and fuel line connection. The MF0011 is listed for specific Chevrolet and GMC applications, including several C/K series trucks and classic passenger models such as the Chevrolet Bel Air, Caprice, and Impala.

Quality Assurance

Delphi builds aftermarket parts using OE heritage and knowledge developed through more than 100 years of original equipment experience. The MF0011 reflects that background with a standard replacement design for select Chevrolet and GMC fuel systems.
