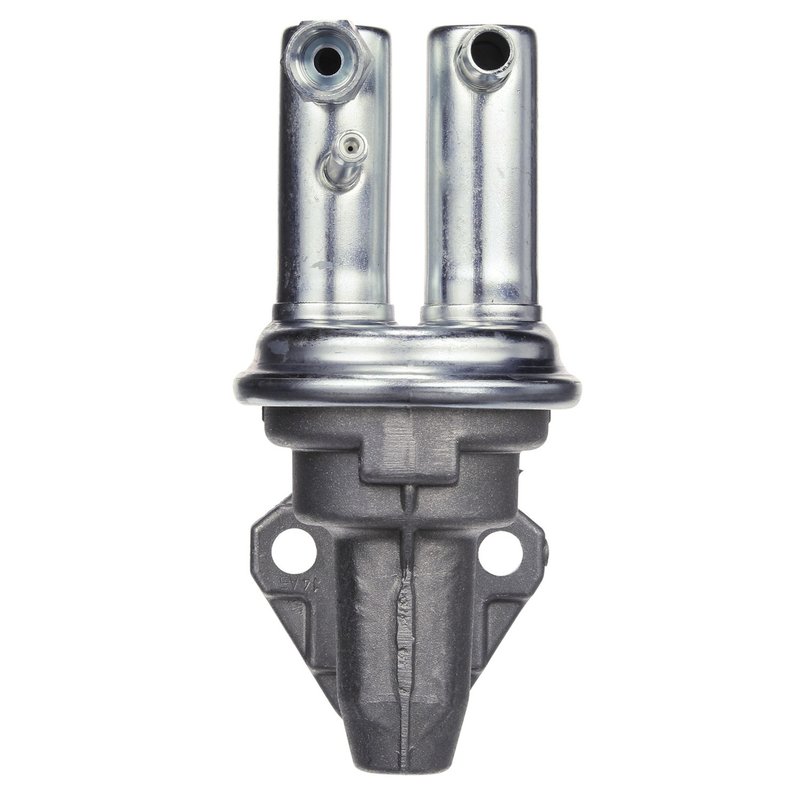

Delphi MF0116 Mechanical Fuel Pump

Delphi MF0116 Mechanical Fuel Pump Overview

The Delphi MF0116 is a standard replacement mechanical fuel pump for gasoline applications that require a 7 psi system pressure and a 45 average flow rating. Built with Delphi OE heritage and application knowledge, it is a direct-fit option for select Ford, Lincoln, and Mercury vehicles from 1975-1977, including LTD, Thunderbird, Continental, Cougar, Grand Marquis, Marquis, and Montego.

Compatible With 1975-1977 Ford LTD and Thunderbird applications, as well as 1976 Lincoln Continental and select 1976 Mercury models, the MF0116 is built for vehicles using a return line and a 3-line pump setup. The Delphi MF0116 also cross-references Airtex Fuel Pumps 6753 and Carter M6753 for the same application.

Key Features

• Mechanical fuel pump for gasoline fuel systems
• Standard replacement grade for direct service use
• 7 psi system pressure
• 45 average flow rating
• Hose bead inlet with 0.375 in. inlet outside diameter
• Threaded outlet with 1/2-20 UNF outlet fitting thread size
• Two outlet ports
• Gasket or seal included
• Package contents include the mechanical fuel pump, gaskets, and instruction sheet

Detailed Description

Delphi MF0116 is engineered for fuel delivery service on select classic Ford, Lincoln, and Mercury vehicles. It is specified for gas applications and uses a hose bead inlet, threaded outlet connection, and dual outlet configuration to match the original fuel system layout on vehicles equipped with a return line and 3-line pump arrangement. Delphi’s OE background informs the design and manufacturing approach, helping support consistent fuel delivery in the applications listed below.

Fits 1975-1976 Ford Thunderbird, return line; with 3 line pump. Fits 1976-1977 Ford LTD, return line; with 3 line pump. Fits 1976 Lincoln Continental, return line; with 3 line pump. Fits 1976 Mercury Cougar, return line; with 3 line pump. Fits 1976 Mercury Grand Marquis, return line; with 3 line pump. Fits 1976 Mercury Marquis, return line; with 3 line pump. Fits 1976 Mercury Montego, return line; with 3 line pump.

What It Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel starvation under normal driving conditions
• Loss of fuel pressure in a mechanical pump system
• Leaking pump seals or worn pump components
• Incorrect replacement fitment on return-line, 3-line pump applications

Installation Notes and Tips

Confirm the vehicle uses a return line and 3-line pump configuration before installation. Verify inlet and outlet connection styles, including the 0.375 in. hose bead inlet and 1/2-20 UNF threaded outlet, against the original pump. Clean the mounting surface thoroughly, replace the gasket during service, and follow the included instruction sheet for proper installation and priming procedures.

Quality Assurance

Delphi draws on more than a century of OE experience and supplies components to major automakers, with aftermarket parts built from that OE knowledge. The MF0116 is a standard replacement fuel pump designed to meet the needs of the listed Ford, Lincoln, and Mercury applications.
