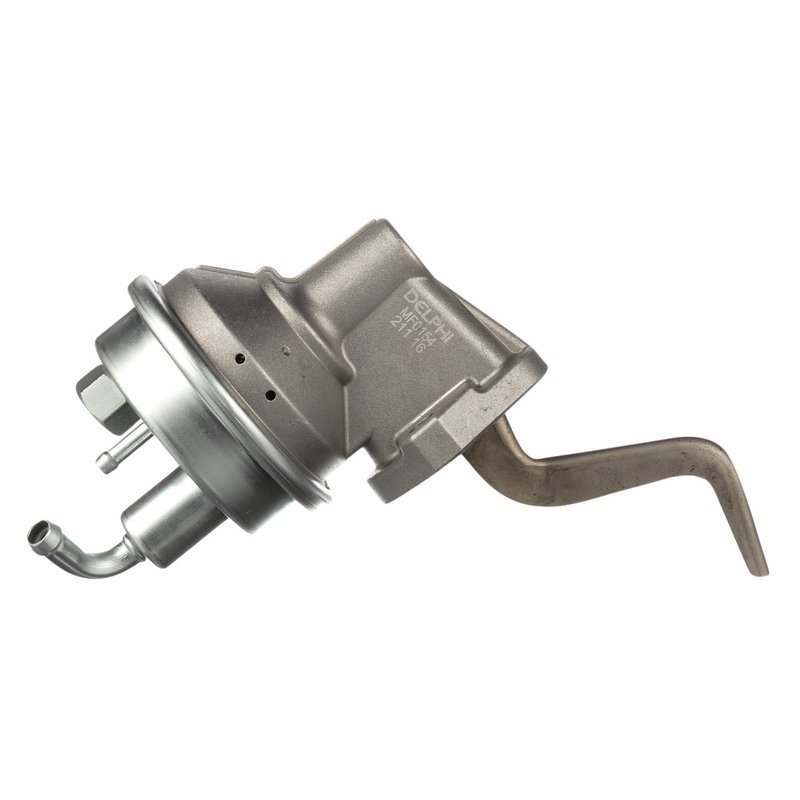

Delphi MF0154 Mechanical Fuel Pump

Delphi MF0154 Mechanical Fuel Pump

The Delphi MF0154 mechanical fuel pump is a standard replacement for gasoline applications that need steady fuel delivery and OE-style fitment. Built from Delphi’s OE heritage and aftermarket engineering experience, it is a practical choice for classic Pontiac fuel system service.

Key Features

• Mechanical fuel pump for gasoline engines
• Standard replacement grade for direct service use
• 6 psi system pressure
• 40 average flow rating
• Hose bead inlet with 0.375 in. outside diameter
• Threaded outlet with 5/8-18 UNF fitting thread size
• Two outlet ports for 3-line pump applications
• Package includes the mechanical fuel pump and instruction sheet

Detailed Description

Delphi MF0154 is a mechanical fuel pump engineered for gasoline fuel systems that require consistent pressure and dependable delivery. It features a hose bead inlet, threaded outlet design, and dual outlet configuration, making it a strong match for vehicles originally equipped with a 3-line pump setup. This part cross-references Airtex Fuel Pumps 40607 and Carter M4690 for the same application. Compatible with 1968 Pontiac Bonneville, Catalina, Firebird, Grand Prix, GTO, LeMans, and Tempest when equipped with air conditioning and a 3-line pump, the Delphi MF0154 supports accurate restoration and maintenance work on classic Pontiac fuel systems.

What It Helps Solve

• Hard starting caused by weak fuel delivery
• Fuel starvation at idle or under load
• Pressure loss in a worn mechanical pump
• Restoration needs for 1968 Pontiac models with A/C and a 3-line pump
• Fuel system service on gasoline-powered classic vehicles

Installation Notes and Tips

Verify inlet and outlet orientation before installation, and confirm the vehicle uses the correct 3-line pump configuration with air conditioning. Check the 5/8-18 UNF outlet connection and 0.375 in. inlet size against the existing fuel lines before assembly. Prime the fuel system and inspect for leaks after installation.

Quality Assurance

Delphi draws on more than a century of OE experience and supplier knowledge from major automakers, with aftermarket parts built from that engineering background. The MF0154 is part of a broad Delphi portfolio covering a wide range of vehicles and model years.
