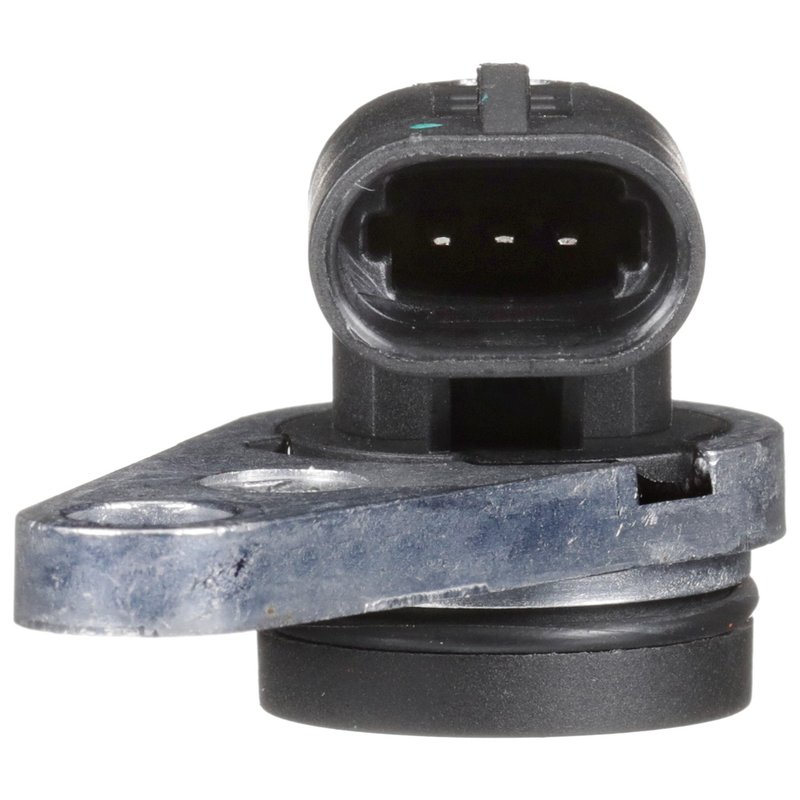

Delphi SS10025 Engine Camshaft Position Sensor

Delphi SS10025 Camshaft Position Sensor

The Delphi SS10025 engine camshaft position sensor is built for accurate camshaft signal input in a wide range of GM, Honda, Acura, and Isuzu applications. With OE heritage behind the design, this camshaft position sensor supports reliable engine timing feedback for vehicles such as the Chevrolet Impala, Pontiac Grand Prix, and Buick LeSabre.

Key Features

• Engine camshaft position sensor for ignition and engine management systems
• Black housing with oval female connector and 3 male terminals
• Mounting bracket included for proper sensor placement
• No wiring harness included
• Package includes the sensor and instruction sheet
• Cross-reference example: Standard Ignition PC102

Detailed Description

Delphi SS10025 is an OE-style camshaft position sensor engineered from Delphi’s long history supplying original equipment to major automakers. It uses a pin-style terminal layout, oval connector shape, and integrated mounting bracket to support a secure electrical and mechanical connection. This part number, SS10025, is used across many applications including Buick LaCrosse, Chevrolet Monte Carlo, and Pontiac Bonneville models, making it a practical replacement when restoring camshaft signal accuracy.

Compatible With 2005-2009 Buick LaCrosse, 2006-2008 Buick Lucerne, 1997-2008 Pontiac Grand Prix, 2004-2005 Buick LeSabre, 2004-2005 Buick Park Avenue, 2000-2005 Chevrolet Impala, 1998-2005 Chevrolet Monte Carlo, and additional listed applications through 1995-1997 import and domestic vehicles. The Delphi SS10025 is also referenced by part number 5S1210 and Standard Ignition PC102 for the same application.

What It Helps Address

• Intermittent camshaft position signal loss
• Hard starting caused by incorrect cam timing input
• Rough idle or engine hesitation related to sensor signal errors
• Check engine light conditions tied to camshaft position sensor faults
• Driveability issues on vehicles such as the Chevrolet Impala and Pontiac Grand Prix

Installation Notes and Tips

Verify connector shape, terminal count, and mounting style before installation. This sensor uses a female oval connector with 3 terminals and includes a mounting bracket, while the wiring harness is not included. Confirm the vehicle’s exact year, make, model, and engine configuration against the fitment list before replacing the original sensor. For best results, inspect the connector and surrounding wiring for corrosion or damage during service.

Quality Assurance

Delphi builds aftermarket parts using OE experience and knowledge developed through decades of supplying original equipment to global automakers. That OE heritage is reflected in the SS10025 camshaft position sensor’s design, materials, and application coverage.
