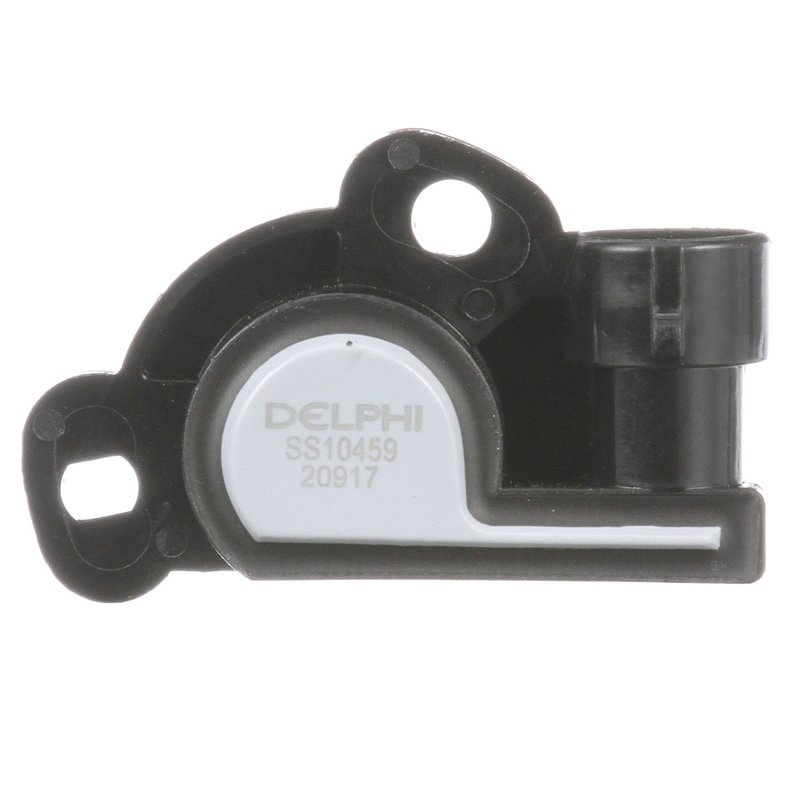

Delphi SS10459 Throttle Position Sensor

Delphi Throttle Position Sensor SS10459 Overview

The Delphi Throttle Position Sensor SS10459 is designed for precise throttle monitoring in various GM and import vehicles. This adjustable, bolt-on sensor provides reliable input to the engine control unit, ensuring optimal engine performance and emission control.

• Adjustable throttle position sensor for fine-tuning
• Bolt-on mount type for secure installation
• Blade terminal type with 3 male terminals
• Single round female connector for easy connection
• Includes throttle position sensor and instruction sheet

Technical Details and Features

This Delphi SS10459 throttle position sensor is not throttle body mounted, allowing flexible placement in the engine bay. It features a blade terminal type with three male terminals and a single round female connector, designed for compatibility with a range of vehicles. The bolt-on mount type ensures a secure fit without the need for additional mounting brackets or hardware, which are not included. The sensor is adjustable, enabling precise calibration to match specific engine requirements. The package includes the sensor itself and an instruction sheet to assist with installation and adjustment.

Compatible Vehicles and Applications

This throttle position sensor is compatible with multiple makes and models, including Acura, Buick, Cadillac, Chevrolet, Geo, GMC, Honda, Isuzu, Oldsmobile, and Pontiac. It fits models such as the Chevrolet Camaro, Blazer, Impala, S10, and Silverado, as well as the Pontiac Grand Am, Firebird, and Sunbird. The Delphi SS10459 is suitable for vehicles requiring a bolt-on, adjustable throttle position sensor with a blade terminal connection.

Common Issues Addressed by the Delphi SS10459

• Erratic or unstable idle speed
• Poor throttle response or hesitation
• Check engine light triggered by throttle position faults
• Engine stalling or surging during acceleration
• Inaccurate throttle position readings affecting fuel delivery

Installation Notes and Tips

Installation requires basic mechanical skills and tools for bolt-on mounting. Ensure the sensor is properly aligned and securely fastened to avoid inaccurate readings. The adjustable feature allows fine-tuning after installation; refer to the included instruction sheet for calibration procedures. Since mounting hardware and brackets are not included, reuse existing components or source compatible hardware as needed. Disconnect the battery before installation to prevent electrical shorts.

Quality Assurance and Warranty

Delphi manufactures the SS10459 throttle position sensor to meet OEM specifications for durability and performance. While mounting hardware is not included, the sensor itself undergoes rigorous testing to ensure reliable operation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary by region and application.
