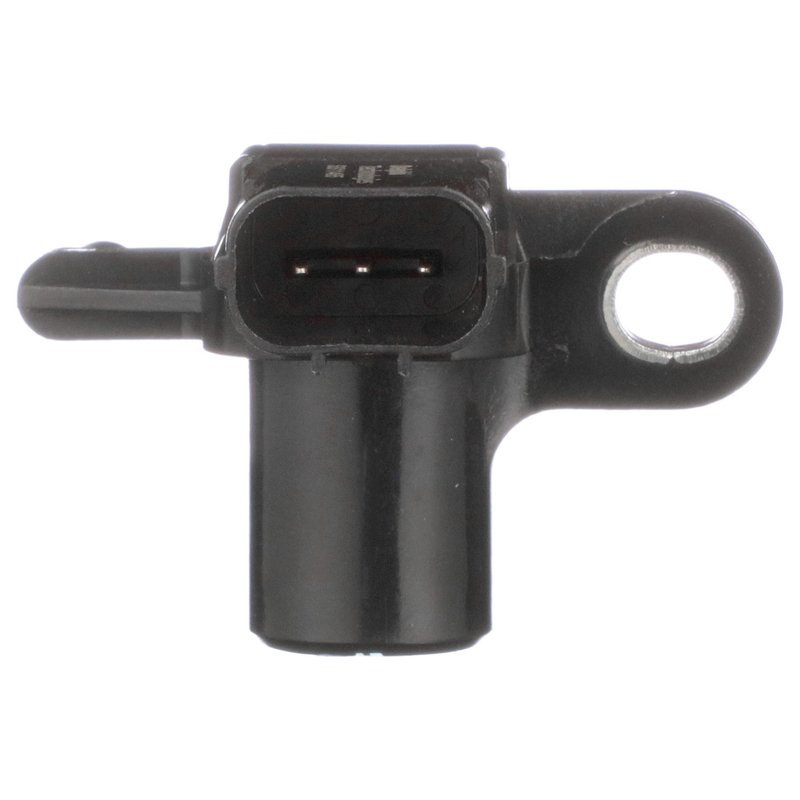

Delphi SS11465 Engine Camshaft Position Sensor

Delphi SS11465 Camshaft Position Sensor

The Delphi SS11465 engine camshaft position sensor is a direct-fit ignition sensor for select Honda Civic applications. Built with Delphi OE heritage and application knowledge, it provides the signal needed for accurate camshaft timing input on 2001-2005 Honda Civic models.

Key Features

• Engine camshaft position sensor for ignition system service
• Black housing with oval female connector
• 3-pin terminal design with male terminals
• No wiring harness included
• No mounting bracket included
• Package includes the sensor and instruction sheet
• Cross-reference part numbers include Standard Ignition PC618 and Spectra Premium S10013

Detailed Description

Delphi SS11465 is an engine camshaft position sensor engineered for 2001-2005 Honda Civic vehicles. It uses a 3-terminal, oval connector layout with a female connector and male terminals, matching the electrical interface required for the application. The black sensor body is supplied as a replacement component for restoring camshaft position signal accuracy in the ignition system. Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers, and that background is reflected in the design and construction of this aftermarket part.

This part cross-references Standard Ignition PC618 and Spectra Premium S10013 for the same application. The Delphi SS11465 is also referenced by part number 37840-RJH-006 in interchange listings.

What It Helps Address

• Camshaft position signal loss
• Intermittent engine stalling related to sensor input
• Hard starting caused by incorrect cam timing data
• Check engine light conditions tied to camshaft sensor faults
• Rough running from inconsistent ignition timing information

Installation Notes

Verify connector shape, terminal count, and sensor location before installation. This Delphi SS11465 camshaft position sensor does not include a wiring harness or mounting bracket, so reuse existing vehicle components where applicable. For 2001-2005 Honda Civic service, confirm the original sensor connector and mounting points match the replacement part before final assembly.

Quality Assurance

Delphi builds aftermarket parts using OE heritage and supplier experience developed through work with leading automakers. That background supports consistent fit, electrical interface, and application-specific design for Honda Civic camshaft position sensor replacement service.
