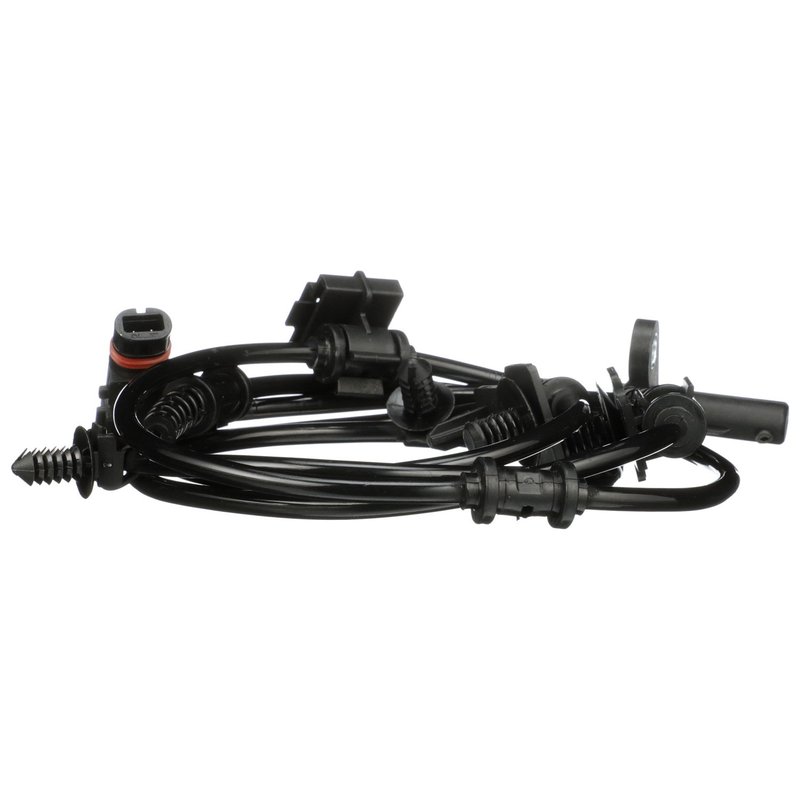

Delphi SS11557 ABS Wheel Speed Sensor - Rear Left

Rear Left ABS Wheel Speed Sensor for Chrysler and Dodge

Delphi SS11557 is a rear left ABS wheel speed sensor built with a 59.0-inch wiring harness, oval female connector, and 2-pin terminal design. It is a direct-fit replacement for select Chrysler 300, Dodge Charger, and Dodge Magnum applications that use a built-in harness at the rear left wheel position.

Key Features

• Rear left ABS wheel speed sensor for select Chrysler and Dodge vehicles
• 59.0-inch wiring harness included for the sensor lead
• Oval connector with female connector gender and 2 terminals
• Pin-style terminal design with male terminal gender
• Package includes the ABS wheel speed sensor and instruction sheet
• Delphi SS11557 cross-references Standard Ignition ALS1124 for the same application

Detailed Product Overview

Delphi SS11557 is engineered for rear left wheel speed monitoring in vehicles equipped with an ABS system that uses a built-in wiring harness. It is listed for 2005-2010 Chrysler 300, 2007-2008 Dodge Charger, 2010 Dodge Charger, and 2005-2008 Dodge Magnum applications. Delphi draws on OE heritage and supplier experience with major automakers, bringing that background into this aftermarket ABS wheel speed sensor.

This part number, SS11557, is a practical replacement choice when the original rear left sensor has failed, the harness is damaged, or the ABS signal is inconsistent. It also cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

What This Sensor Helps Address

• ABS warning light caused by a failed rear left wheel speed sensor
• Intermittent or missing wheel speed signal at the rear left wheel
• ABS system faults related to damaged sensor wiring or connector issues
• Brake control concerns tied to inaccurate wheel speed input
• Diagnostic trouble codes associated with the rear left ABS sensor circuit

Installation Notes and Tips

Verify the vehicle’s rear left sensor style, connector shape, and harness length before installation. This Delphi SS11557 uses a female oval connector, 2-pin terminal layout, and includes a wiring harness, so matching the original configuration is important for proper fitment on Chrysler 300, Dodge Charger, and Dodge Magnum models. Mounting hardware is not included.

Quality Assurance

Delphi builds aftermarket parts using OE experience and knowledge developed through years of supplying major automakers. That background supports consistent fit, connector design, and sensor construction for service replacement use.
