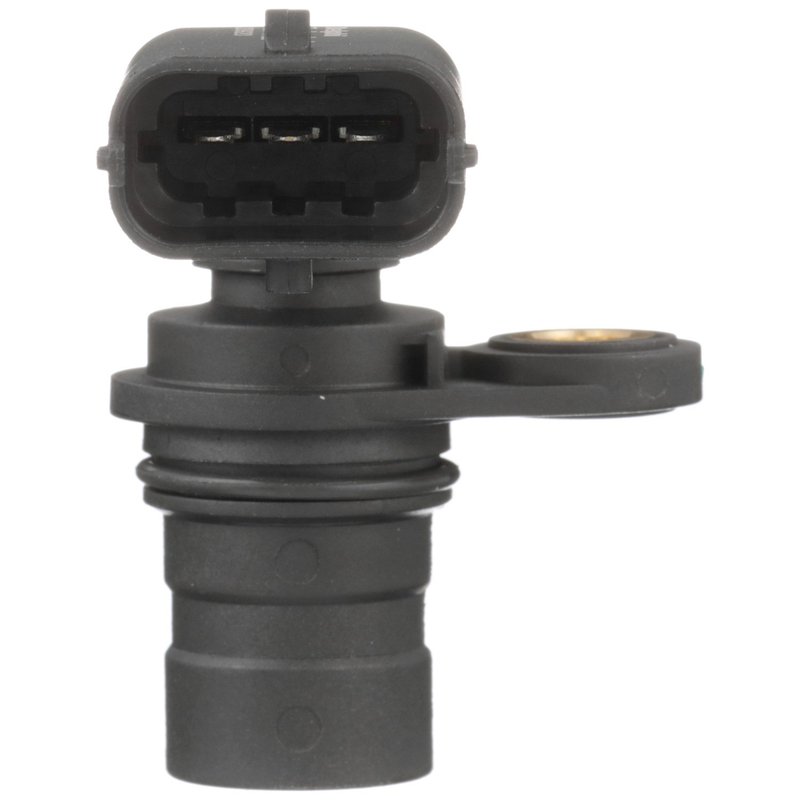

Delphi SS11735 Engine Camshaft Position Sensor

Delphi SS11735 Camshaft Position Sensor

The Delphi SS11735 engine camshaft position sensor is built for precise camshaft signal input on select Cadillac applications. It uses a 3-terminal blade connection with a female rectangle connector and a black housing for a direct-fit replacement on the listed vehicles.

• Engine camshaft position sensor for ignition system signal monitoring
• Black housing with rectangle female connector
• 3-terminal blade design
• Package contents: engine camshaft position sensor and instruction sheet
• OE heritage backed by Delphi’s long history supplying original equipment to major automakers

Fitment

Compatible With 2004-2006 Cadillac SRX, N/A. Compatible With 2005-2006 Cadillac STS, N/A. Compatible With 2004-2006 Cadillac XLR, N/A.

This part cross-references Standard Ignition PC609 for the same application.

Detailed Description

Delphi SS11735 is an engine camshaft position sensor engineered for the Cadillac SRX, Cadillac STS, and Cadillac XLR applications listed above. Delphi draws on OE experience and original-equipment knowledge to produce aftermarket sensors that match the electrical and connector requirements of the vehicle platform. The SS11735 part number is a direct reference for shoppers searching for a Cadillac camshaft position sensor replacement, Delphi camshaft sensor, or SS11735 ignition sensor.

With a female rectangle connector, male blade terminals, and 3-terminal layout, this sensor is specified for the correct electrical interface on the covered vehicles. The black sensor body and included instruction sheet support a straightforward replacement process when the original camshaft position sensor has failed or is showing intermittent signal issues. Search terms such as 2004 Cadillac SRX camshaft position sensor, 2005 Cadillac STS camshaft position sensor, and 2004-2006 Cadillac XLR camshaft position sensor all point to this application.

What It Helps Solve

• Camshaft signal loss or erratic sensor readings
• Check engine light concerns related to camshaft position input
• Hard starting or extended crank conditions tied to sensor failure
• Rough running caused by inaccurate camshaft timing feedback
• Intermittent drivability issues on the listed Cadillac models

Installation Notes and Tips

Verify the connector shape, terminal count, and sensor location before installation. Compare the removed part to Delphi SS11735 to confirm the rectangle female connector and 3-terminal blade configuration match the original unit. No wiring harness or mounting bracket is included, so reuse the vehicle’s existing components where applicable. Clear diagnostic trouble codes after installation and confirm proper engine operation.

Quality Assurance

Delphi builds this camshaft position sensor using OE-focused engineering and supplier experience developed over decades of original-equipment production. The SS11735 is intended to meet the fit and electrical requirements of the listed Cadillac applications while supporting reliable sensor replacement.
