Delphi SS11741 Engine Camshaft Position Sensor

Delphi SS11741 Camshaft Position Sensor

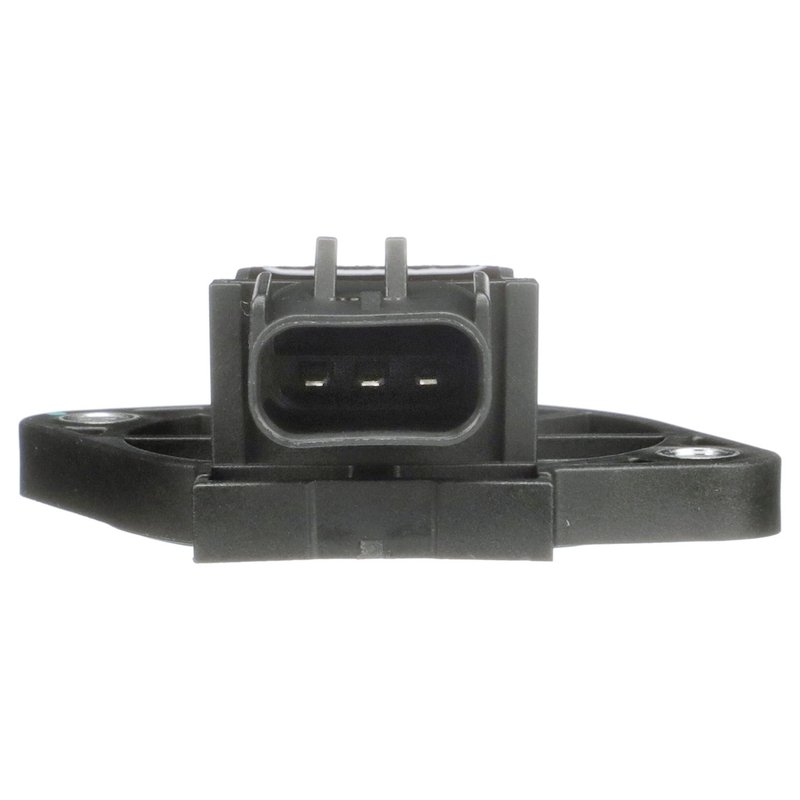

The Delphi SS11741 engine camshaft position sensor is an OE-style replacement built from Delphi’s long history of supplying original equipment to major automakers. It is a black sensor with a rectangular female connector, 3 terminals, and blade-style terminals for a direct-fit service replacement on select Chrysler, Dodge, and Mitsubishi applications.

Key Features

• Engine camshaft position sensor for ignition and engine management systems
• Black housing with rectangular connector shape
• 3-terminal design with female connector and male terminals
• Wiring harness not included
• Mounting bracket not included
• Package includes the sensor and instruction sheet

Detailed Description

Delphi SS11741 is engineered for vehicles that rely on accurate camshaft position input for ignition timing and fuel control. This sensor is a direct replacement for select 1997-1999 Chrysler Sebring, 1997-1999 Dodge Avenger, and 1999 Mitsubishi Eclipse applications. Delphi’s OE heritage and application knowledge are reflected in the sensor design, helping maintain the signal quality expected by the engine control system. This part cross-references Standard Ignition PC475 and Walker Products 235-1050 for the same application.

What It Helps Address

• Camshaft position sensor fault codes
• Hard starting or extended crank conditions
• Rough idle or intermittent stalling
• Misfire concerns tied to cam signal loss
• Check engine light illumination related to camshaft position input

Installation Notes and Tips

Verify connector style, terminal count, and mounting location before installation. Fits 1997-1999 Chrysler Sebring, N/A; Fits 1997-1999 Dodge Avenger, N/A; Fits 1999 Mitsubishi Eclipse, N/A. Because the wiring harness and mounting bracket are not included, reuse existing vehicle components where applicable and inspect the connector for corrosion or damaged terminals. Confirm the old sensor part number against Delphi SS11741 before service.

Quality Assurance

Delphi builds aftermarket parts using OE experience and supplier knowledge developed over decades of original equipment production. The SS11741 is packaged with an instruction sheet to support proper replacement on the listed applications.
