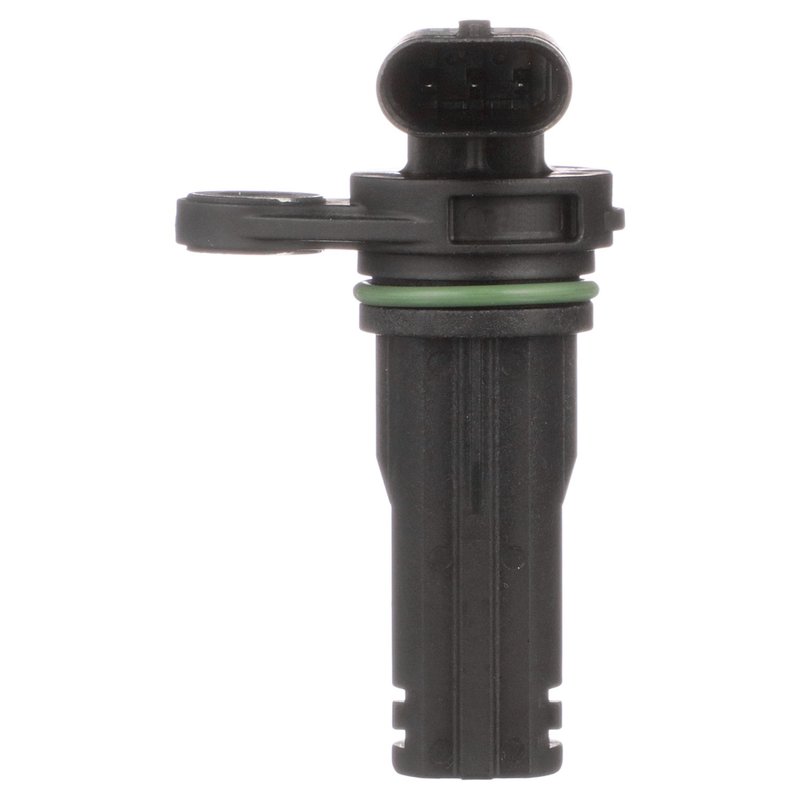

Delphi SS11760 Engine Crankshaft Position Sensor

Reliable Engine Crankshaft Position Sensor for Chrysler and Dodge Vehicles

The Delphi SS11760 engine crankshaft position sensor is designed to provide accurate and consistent crankshaft position data for optimal engine performance. Compatible with a range of Chrysler, Dodge, Jeep, Fiat, and Ram models, this sensor ensures precise timing and efficient engine operation.

• Color: Black for easy identification and durability
• Terminal Type: Blade terminals for secure electrical connections
• Connector Quantity: Single connector for straightforward installation
• Connector Shape: Oval design to match factory specifications
• Terminal Quantity: Three terminals to support accurate signal transmission
• Connector Gender: Female connector compatible with male terminals
• Terminal Gender: Male terminals for reliable contact
• Wiring Harness: Not included, designed for direct replacement
• Package Contents: Engine crankshaft position sensor and instruction sheet

Detailed Description of Delphi SS11760 Crankshaft Position Sensor

This Delphi crankshaft position sensor (part number SS11760) is engineered to meet OEM standards for fit and function. Its black housing and oval female connector with three male blade terminals ensure compatibility with factory wiring harnesses. The sensor is designed for use in various Chrysler, Dodge, Jeep, Fiat, and Ram vehicles, including models such as the Jeep Grand Cherokee, Dodge Durango, Ram 1500 Classic, and Fiat 500X. The sensor accurately monitors the crankshaft's rotational position, providing critical data to the engine control unit (ECU) for ignition timing and fuel injection control.

Compatible Vehicles and Applications

• Chrysler 200, Pacifica, Voyager
• Dodge Dart, Durango
• Fiat 500X
• Jeep Cherokee, Compass, Grand Cherokee, Grand Cherokee L, Grand Cherokee WK, Renegade, Wrangler
• Ram 1500, 1500 Classic, ProMaster 1500, 2500, 3500, ProMaster City

Common Issues Addressed by the SS11760 Sensor

• Engine misfires or rough idling due to inaccurate crankshaft position data
• Difficulty starting the engine or no-start conditions
• Check engine light triggered by crankshaft position sensor faults
• Poor fuel economy caused by incorrect ignition timing
• Engine stalling or hesitation during acceleration

Installation Notes and Tips

Installation of the Delphi SS11760 sensor requires no wiring harness as it is designed for direct replacement. Ensure the vehicle’s ignition is off before beginning installation. Disconnect the battery to prevent electrical shorts. Carefully remove the old sensor and inspect the mounting area for debris or damage. Align the oval female connector properly with the male terminals and secure the sensor firmly to avoid vibration-related issues. Refer to the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty Information

Delphi manufactures the SS11760 crankshaft position sensor to meet strict quality standards, ensuring reliable performance and durability. This sensor undergoes rigorous testing to verify electrical and mechanical integrity. While specific warranty details may vary, Delphi typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
