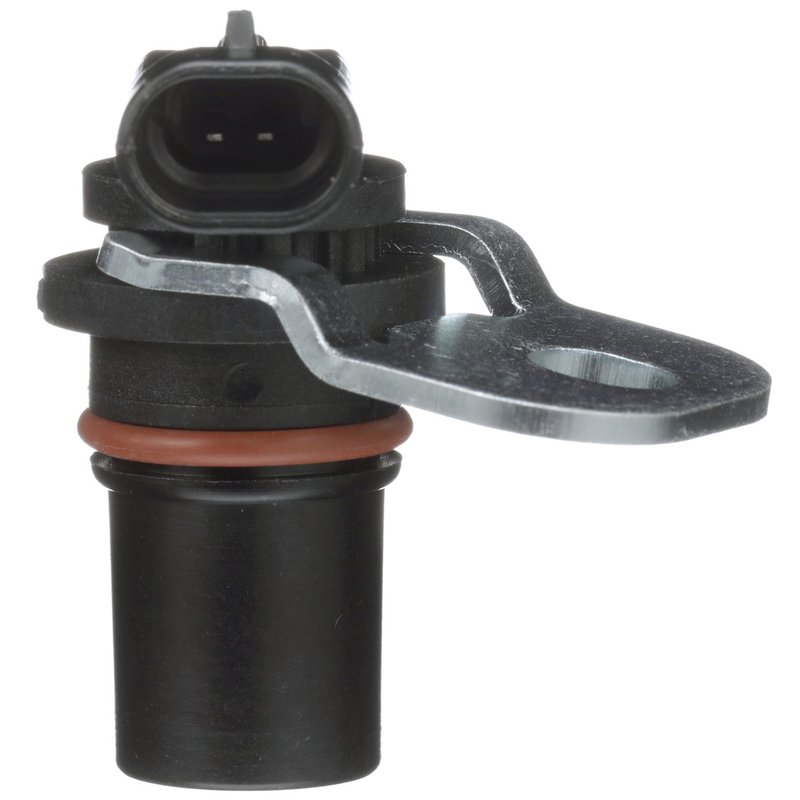

Delphi SS11824 Automatic Transmission Speed Sensor

Delphi Automatic Transmission Speed Sensor Overview

The Delphi SS11824 automatic transmission speed sensor is designed for precise speed monitoring in select Chevrolet and GMC heavy-duty trucks. Engineered with a blade terminal type and a single oval female connector, this sensor ensures reliable communication with your vehicle's transmission system.

• Terminal Type: Blade for secure electrical connection
• Connector Quantity: 1 with an oval shape for easy fitment
• Terminal Quantity: 2 male terminals for accurate signal transmission
• Mounting Hardware: Not included, allowing for flexible installation options
• Package Contents: Includes the automatic transmission speed sensor and an instruction sheet

Technical Details and Compatibility

The Delphi SS11824 sensor is specifically compatible with Chevrolet and GMC models such as the Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, and Silverado 3500 HD, including their Classic variants. Its design features a female connector with two male blade terminals, ensuring a secure and precise connection to the vehicle’s wiring harness (not included). The sensor’s oval connector shape facilitates proper alignment and fitment within the transmission system.

Function and Application

This automatic transmission speed sensor plays a critical role in monitoring the rotational speed of the transmission output shaft. It provides essential data to the vehicle’s transmission control module (TCM) to optimize shifting and overall transmission performance.

• Helps resolve erratic shifting or delayed gear engagement
• Addresses transmission speedometer inaccuracies
• Prevents transmission slipping caused by incorrect speed readings
• Supports smooth operation of the transmission control system
• Assists in diagnosing transmission-related fault codes

Installation Notes and Tips

Installation of the Delphi SS11824 sensor requires removal of the old sensor and careful connection to the vehicle’s wiring harness. Since mounting hardware and wiring harness are not included, ensure you have the necessary tools and components before beginning installation. Follow the included instruction sheet for proper sensor placement and connector engagement. Verify the sensor’s secure fit to avoid signal interruptions.

Quality Assurance and Warranty

Delphi manufactures the SS11824 sensor to meet OEM standards for durability and performance. While mounting hardware and wiring harness are not supplied, the sensor itself is built to withstand the demanding conditions of heavy-duty Chevrolet and GMC trucks. Please refer to Delphi’s warranty policy for specific coverage details related to this part number.
