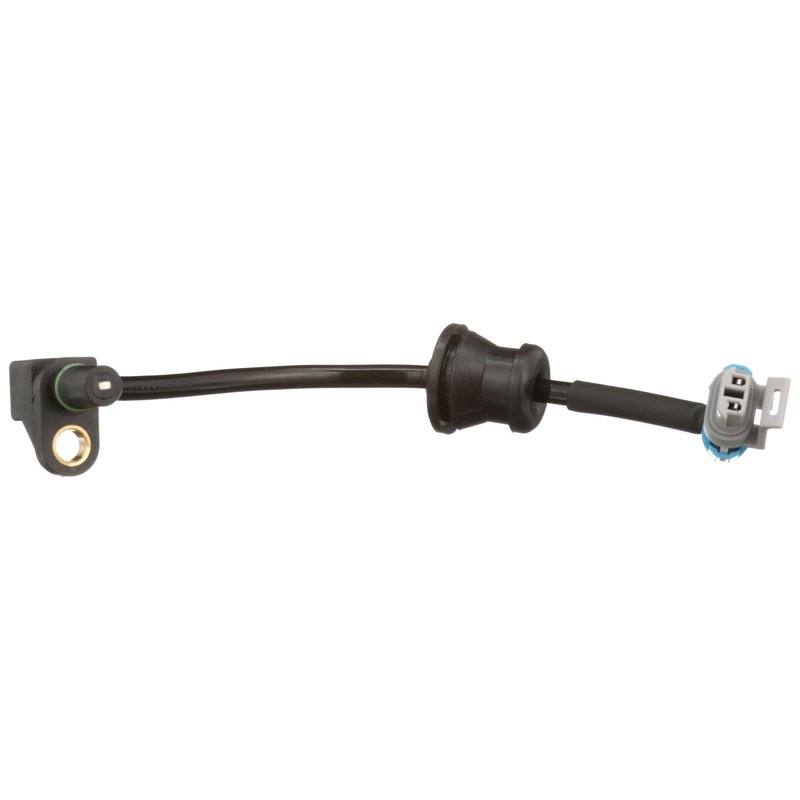

Delphi SS11911 ABS Wheel Speed Sensor - Rear Left or Rear Right

Delphi ABS Wheel Speed Sensor Overview

The Delphi SS11911 ABS wheel speed sensor is designed for precise wheel speed monitoring on select Chevrolet, Pontiac, and Saturn vehicles. Engineered to provide reliable data to your vehicle's ABS system, this sensor supports safe braking performance on the rear left or rear right wheel hub.

• Wiring harness length of 7.28 inches for optimal fitment
• Pin-type terminal with two female terminals for secure electrical connection
• Includes wiring harness and instruction sheet for installation guidance
• Single oval-shaped male connector for compatibility with factory wiring
• Mounts directly to the wheel hub without included mounting hardware
• Compatible with rear left and rear right positions

Technical Details and Compatibility

The Delphi SS11911 ABS wheel speed sensor features a 7.28-inch wiring harness that ensures proper reach and connection within the wheel hub assembly. Its pin terminal type with two female terminals and a single oval male connector provides a secure and reliable electrical interface. This sensor is designed specifically for the rear left and rear right wheel hub locations, making it suitable for vehicles such as the Chevrolet Equinox, Pontiac Torrent, and Saturn Vue. The package includes the sensor itself along with an instruction sheet to assist with installation, though mounting hardware is not included.

Applications and Problem Resolution

This ABS wheel speed sensor is used to monitor wheel rotation speed and relay this information to the vehicle's anti-lock braking system. It helps maintain vehicle stability and control during braking. Common issues addressed by replacing this sensor include:

• ABS warning light illumination due to sensor failure
• Intermittent or inaccurate wheel speed readings
• Loss of anti-lock braking functionality on rear wheels
• Erratic braking behavior or traction control problems
• Diagnostic trouble codes related to wheel speed sensor faults

Installation Notes and Tips

When installing the Delphi SS11911 sensor, ensure the wiring harness is routed without sharp bends or pinches to avoid damage. Verify the connector is fully seated and locked to prevent electrical issues. Since mounting hardware is not included, reuse existing hardware or source compatible fasteners. Installation is recommended on the rear left or rear right wheel hub as specified for proper sensor operation.

Quality Assurance and Warranty

Delphi manufactures the SS11911 ABS wheel speed sensor to meet OEM specifications for fit, form, and function. The sensor undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. Warranty coverage details should be confirmed at the point of purchase, as they may vary.
