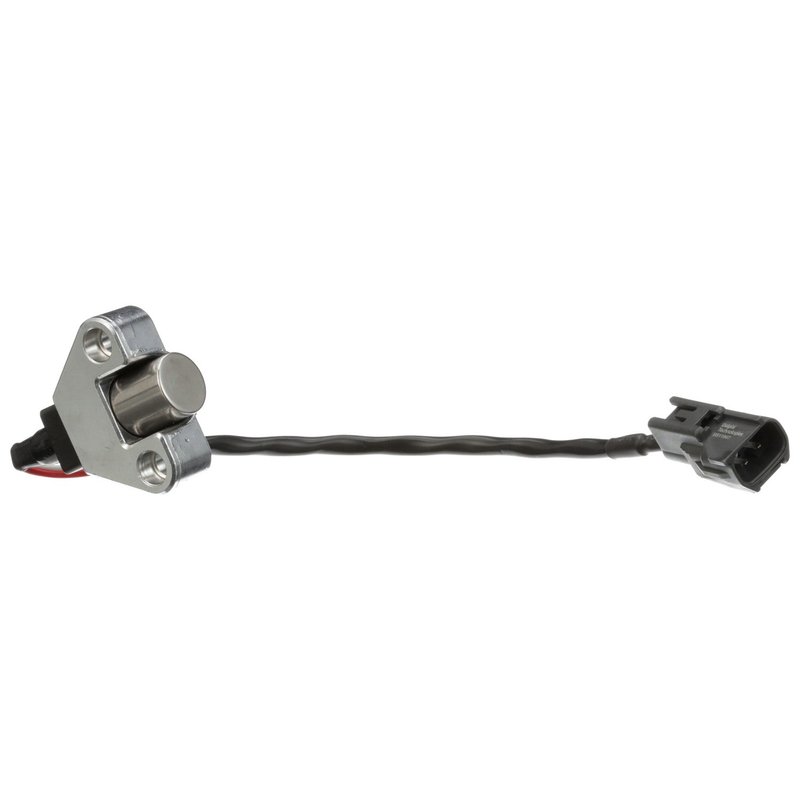

Delphi SS11942 Engine Camshaft Position Sensor
| Brand | Delphi SS11942 |
|---|---|
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangle |
| Mounting Bracket Included | No |
| Package Contents | Engine Camshaft Position Sensor, Instruction Sheet |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
| Fits | Lexus and Toyota · 59 vehicles |
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Blade terminals. Female connector with a rectangular shape for straightforward electrical connection.
Wiring harness included. Comes with an instruction sheet for easier installation.
Cross-references Standard Ignition PC409, 19300-50020 and CSS1082 for the same application. See all 5.
Delphi SS11942 Camshaft Position Sensor
Delphi SS11942 is an engine camshaft position sensor built for direct replacement on select Lexus and Toyota applications. It uses a black housing, rectangular female connector, blade terminals, and includes the wiring harness for a cleaner service replacement.
Key Features
- Engine camshaft position sensor for ignition and engine management systems
- Black sensor body with rectangular connector shape
- 2-terminal design with male blade terminals and female connector
- Wiring harness included for the listed application
- Package includes the engine camshaft position sensor and instruction sheet
- Delphi part number SS11942
Application Details
Compatible With 2002-2010 Lexus SC430, located in the timing cover; 2001-2007 Lexus GS430, located in the timing cover; 2001-2006 Lexus LS430, located in the timing cover; 2005 Lexus LX470, to 05/2005; 1998-2005 Toyota Land Cruiser; 2003-2004 Lexus GX470; 1998-2004 Lexus LX470; 2001-2004 Toyota Sequoia; 2000-2004 Toyota Tundra; 2003 Toyota 4Runner; 1998-2000 Lexus GS400, located in the timing cover; 1998-2000 Lexus LS400, located in the timing cover; and 1998-2000 Lexus SC400, located in the timing cover.
This part cross-references Standard Ignition PC409 for the same application.
What It Helps Address
- Hard starting caused by incorrect camshaft position signal
- Check engine light related to cam sensor circuit faults
- Rough idle or drivability issues tied to timing signal loss
- Intermittent stalling from inconsistent camshaft position input
- Misfire or synchronization problems in the engine management system
Installation Notes
Verify the timing-cover location and connector style before installation. Compare the original sensor, connector shape, terminal count, and harness routing to the removed part. Use the included instruction sheet during service and inspect the connector and wiring for corrosion or damage before reconnecting.
Quality Assurance
Delphi brings OE heritage and more than a century of original-equipment experience to aftermarket parts, with engineering knowledge carried into each replacement component. SS11942 is built to meet the needs of the listed Lexus and Toyota applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2009 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2008 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2007 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2007 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2006 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2006 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2006 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2005 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2005 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2005 | Lexus | LX470 | N/A | To 05/2005 |
| 2005 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2005 | Toyota | Land Cruiser | N/A | — |
| 2004 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2004 | Lexus | GX470 | N/A | — |
| 2004 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2004 | Lexus | LX470 | N/A | — |
| 2004 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2004 | Toyota | Land Cruiser | N/A | — |
| 2004 | Toyota | Sequoia | N/A | — |
| 2004 | Toyota | Tundra | N/A | — |
| 2003 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2003 | Lexus | GX470 | N/A | — |
| 2003 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2003 | Lexus | LX470 | N/A | — |
| 2003 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2003 | Toyota | 4Runner | N/A | — |
| 2003 | Toyota | Land Cruiser | N/A | — |
| 2003 | Toyota | Sequoia | N/A | — |
| 2003 | Toyota | Tundra | N/A | — |
| 2002 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2002 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2002 | Lexus | LX470 | N/A | — |
| 2002 | Lexus | SC430 | N/A | Located in Timing Cover |
| 2002 | Toyota | Land Cruiser | N/A | — |
| 2002 | Toyota | Sequoia | N/A | — |
| 2002 | Toyota | Tundra | N/A | — |
| 2001 | Lexus | GS430 | N/A | Located in Timing Cover |
| 2001 | Lexus | LS430 | N/A | Located in Timing Cover |
| 2001 | Lexus | LX470 | N/A | — |
| 2001 | Toyota | Land Cruiser | N/A | — |
| 2001 | Toyota | Sequoia | N/A | — |
| 2001 | Toyota | Tundra | N/A | — |
| 2000 | Lexus | GS400 | N/A | Located in Timing Cover |
| 2000 | Lexus | LS400 | N/A | Located in Timing Cover |
| 2000 | Lexus | LX470 | N/A | — |
| 2000 | Lexus | SC400 | N/A | Located in Timing Cover |
| 2000 | Toyota | Land Cruiser | N/A | — |
| 2000 | Toyota | Tundra | N/A | — |
| 1999 | Lexus | GS400 | N/A | Located in Timing Cover |
| 1999 | Lexus | LS400 | N/A | Located in Timing Cover |
| 1999 | Lexus | LX470 | N/A | — |
| 1999 | Lexus | SC400 | N/A | Located in Timing Cover |
| 1999 | Toyota | Land Cruiser | N/A | — |
| 1998 | Lexus | GS400 | N/A | Located in Timing Cover |
| 1998 | Lexus | LS400 | N/A | Located in Timing Cover |
| 1998 | Lexus | LX470 | N/A | — |
| 1998 | Lexus | SC400 | N/A | Located in Timing Cover |
| 1998 | Toyota | Land Cruiser | N/A | — |
