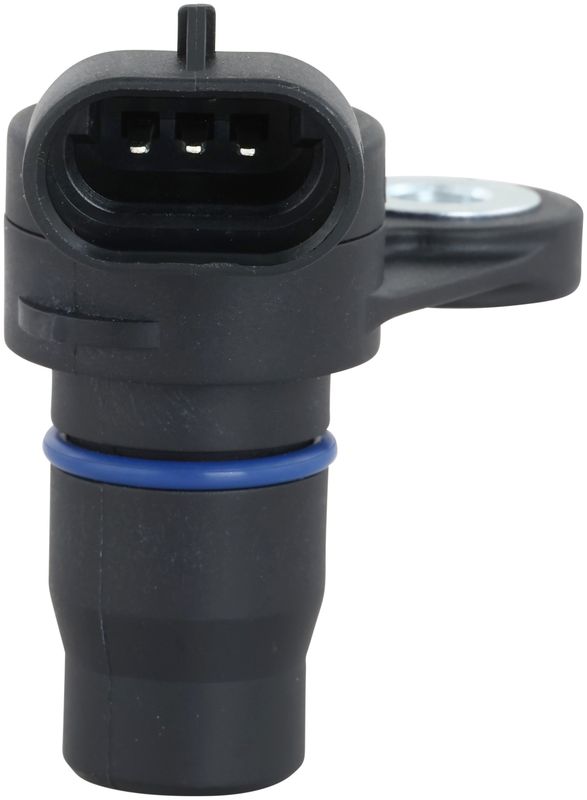

Delphi SS11946 Engine Camshaft Position Sensor - Intake

Delphi SS11946 Intake Camshaft Position Sensor

The Delphi SS11946 is an engine camshaft position sensor for intake-side applications. It is built with a black housing, oval female connector, 3 blade terminals, and OE-calibrated testing to support accurate signal readings in the ignition system.

Key Features

• Engine camshaft position sensor for the intake position
• Black sensor body with oval connector shape
• 3-terminal blade connection, female connector with male terminals
• No wiring harness included
• No mounting bracket included
• Package includes the sensor and instruction sheet
• Delphi SS11946 is tested and calibrated to OE standards

Application Details

Compatible with 2004-2007 Chevrolet Colorado, intake; 2004-2007 GMC Canyon, intake; and 2006-2007 Hummer H3, intake. This part cross-references Standard Ignition PC658 for the same application. If you are replacing a Delphi SS11946 on a Chevrolet Colorado, GMC Canyon, or Hummer H3, verify the intake position and connector style before installation.

What It Helps Address

• Camshaft position signal faults
• Hard starting related to cam sensor input
• Intermittent engine performance concerns tied to timing signal loss
• Check engine light conditions associated with camshaft sensor codes
• Driveability issues caused by inaccurate intake camshaft readings

Installation Notes

Confirm the intake position, oval connector shape, and 3-terminal blade layout before replacement. The Delphi SS11946 does not include a wiring harness or mounting bracket, so reuse existing vehicle components as applicable. Follow the instruction sheet and inspect the connector and terminals for corrosion or damage during service.

Quality Assurance

Delphi sensors are developed with OE-focused validation methods and calibrated to OE standards to help deliver accurate readings and reduce repeat repairs. The SS11946 is part of Delphi’s sensor portfolio for ignition and engine management applications.
