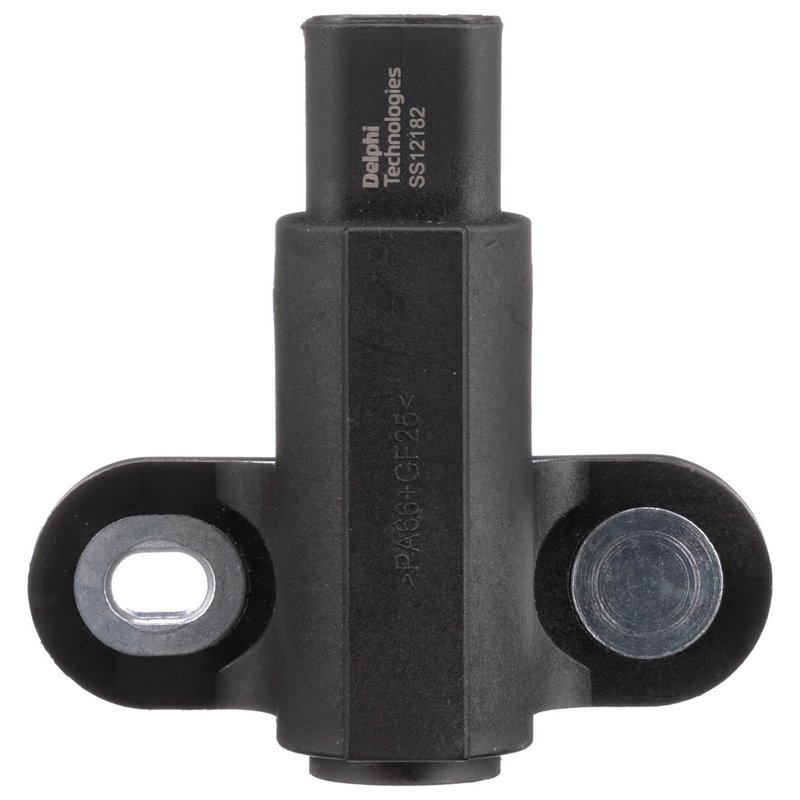

Delphi SS12182 Engine Camshaft Position Sensor

Delphi SS12182 Camshaft Position Sensor

Delphi SS12182 is an engine camshaft position sensor for select Ford Ranger applications. Built from Delphi’s OE heritage and aftermarket engineering experience, it is made for accurate camshaft signal input in the ignition and engine management system.

Key Features

• Engine camshaft position sensor for ignition system service
• Black housing with square connector shape
• 2-terminal design with female connector and male terminals
• Package contents include the sensor and instruction sheet
• Direct-fit replacement for select Ford Ranger model years
• Part number SS12182 for easy identification

Detailed Description

This Delphi camshaft position sensor is engineered for 1995-2001 Ford Ranger models. It uses a square, female connector with two male terminals and a black sensor body for a straightforward OE-style replacement. Delphi’s long history supplying original equipment to major automakers informs the design and manufacturing approach behind SS12182.

Use Delphi SS12182 when servicing a Ford Ranger camshaft position sensor circuit and restoring proper engine timing signal input. This part cross-references Standard Ignition PC318 for the same application. The SS12182 part number is also referenced by interchange listings including CSS1067.

What It Helps Solve

• Camshaft position signal loss
• Hard starting or extended crank conditions
• Intermittent stalling related to sensor input
• Check engine light concerns tied to camshaft signal faults
• Rough running caused by inaccurate camshaft position data

Installation Notes and Tips

Verify connector shape, terminal count, and mounting location before installation. This sensor does not include a wiring harness or mounting bracket, so reuse existing vehicle components where applicable. Compare the old unit to SS12182 before final installation on a 1995-2001 Ford Ranger to confirm fitment and connector match.

Quality Assurance

Delphi builds this sensor using OE experience and supplier knowledge developed over more than a century in the automotive industry. That background supports consistent fit and signal performance for Ford Ranger camshaft position sensor replacement service.
