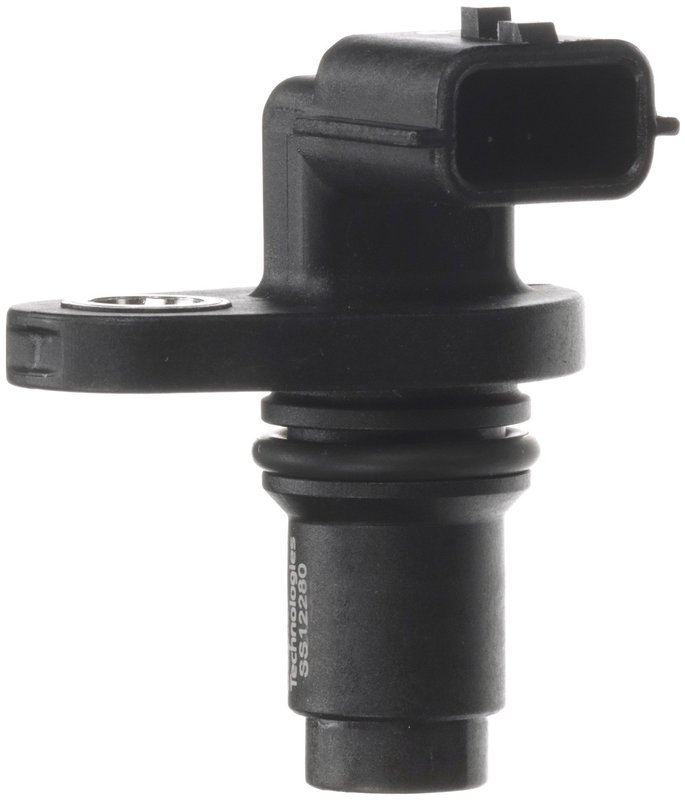

Delphi SS12280 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor for Nissan and INFINITI

Delphi SS12280 is an engine camshaft position sensor built for direct-fit service on select Nissan and INFINITI vehicles. It uses a 3-terminal blade connection, square connector shape, and male connector/terminal design to support accurate camshaft signal input for engine management.

Compatible With 2009-2023 INFINITI and Nissan applications, including QX80, Armada, TITAN, TITAN XD, NV2500, NV3500, Q70, Q70L, QX70, FX50, M56, and QX56.

• Delphi part number SS12280
• Black sensor housing
• 3-terminal blade connector
• Square connector shape
• Male connector and male terminal design
• Wiring harness not included
• Package contents: engine camshaft position sensor and instruction sheet

Detailed Product Overview

This Delphi camshaft position sensor is engineered for OE-style signal accuracy and validated to OE standards during development and calibration. For Nissan Armada, TITAN, TITAN XD, and INFINITI QX80 applications, a stable camshaft signal is critical for proper ignition timing, fuel delivery, and engine synchronization. Delphi SS12280 is built to support that signal path with the correct connector style and terminal count for the listed vehicles.

This part cross-references Standard Ignition PC928 for the same application.

Common Symptoms This Sensor May Address

• Check engine light related to camshaft position sensor faults
• Hard starting or extended crank time
• Rough idle or intermittent stalling
• Misfire or timing-related drivability concerns
• Loss of engine synchronization data from the camshaft signal circuit

Installation Notes and Tips

Verify the connector shape, terminal count, and vehicle application before installation. This sensor uses a square, 3-terminal male connector and does not include a wiring harness. Inspect the connector and surrounding harness for corrosion, bent terminals, or damaged locking tabs before connecting the new sensor.

For best results, clear diagnostic trouble codes after installation and confirm proper engine operation on the affected Nissan or INFINITI model. Delphi SS12280 is listed for multiple model years, so match the exact year and vehicle configuration before ordering.

Quality Assurance

Delphi sensors are developed and validated to OE standards, with calibration checks intended to support accurate readings and reduce repeat repairs. The SS12280 follows that OE-focused testing approach for dependable camshaft position signal performance.
