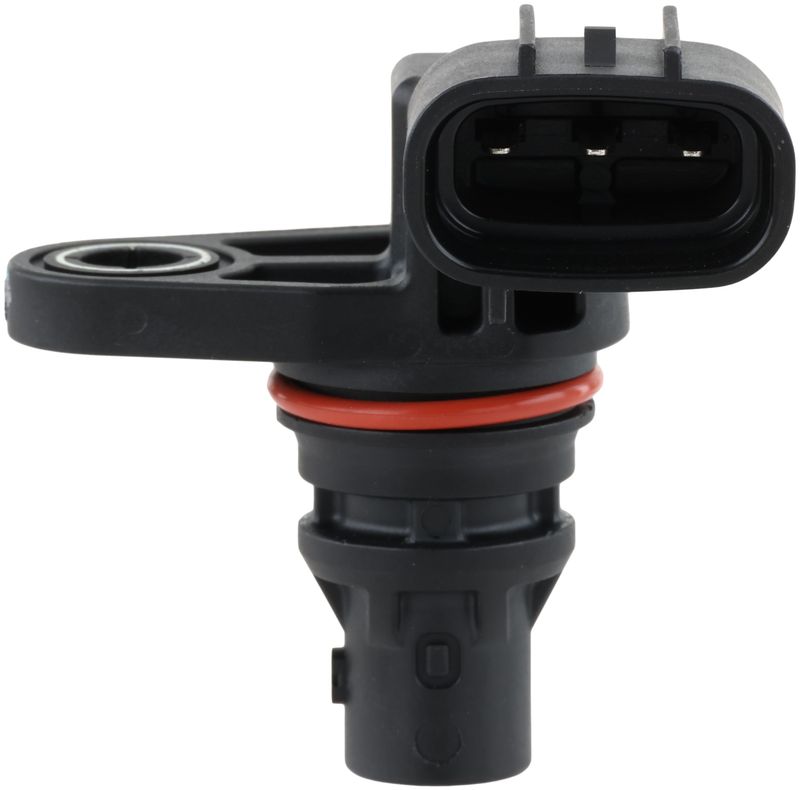

Delphi SS12341 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor for Kia and Hyundai

Delphi SS12341 is an engine camshaft position sensor built for precise signal output and OE-style fitment on select Kia and Hyundai applications. It is a direct replacement option for vehicles such as the Kia Forte, Kia Soul, Hyundai Elantra, and Hyundai Kona.

Key Features

• Black sensor housing
• 1 female oval connector
• 3 male blade terminals
• No wiring harness included
• Package contents: engine camshaft position sensor and instruction sheet
• OE-standard testing and calibration for accurate readings

Product Details

Delphi SS12341 is part of Delphi’s sensor portfolio, which is developed and validated to OE standards for consistent signal accuracy. As a camshaft position sensor, it monitors camshaft position data used by the engine control system for timing and synchronization. This part number, SS12341, is cross-referenced with Standard Ignition PC1141 for the same application.

Compatible With 2017-2022 Kia Forte, 2021-2022 Kia Seltos, 2017-2022 Kia Soul, 2018-2021 Hyundai Kona, 2019-2021 Hyundai Veloster, 2017-2020 Hyundai Elantra, 2018-2020 Hyundai Elantra GT, and 2017-2018 Kia Forte5. If you are searching for a camshaft position sensor for Kia Forte or Hyundai Elantra engine management repair, SS12341 is listed for these applications.

Common Issues This Part Can Address

• Camshaft position signal loss
• Check engine light related to cam sensor performance
• Hard starting or extended crank conditions tied to timing input faults
• Rough idle or drivability concerns from incorrect camshaft data
• Engine control synchronization errors

Installation Notes

Verify connector shape, terminal count, and OE part number before installation. This sensor uses a single oval female connector with three male blade terminals and does not include a wiring harness. Confirm the vehicle application by year, make, and model before replacing the original sensor.

Quality Assurance

Delphi tests and calibrates its sensors to OE standards and uses stringent development and validation methods to support accurate readings and reduce repeat repairs. SS12341 is built to meet the demands of select Kia and Hyundai engine management systems.
