Delphi SS12441 Engine Camshaft Position Sensor - Intake

OE-Style Camshaft Position Sensing

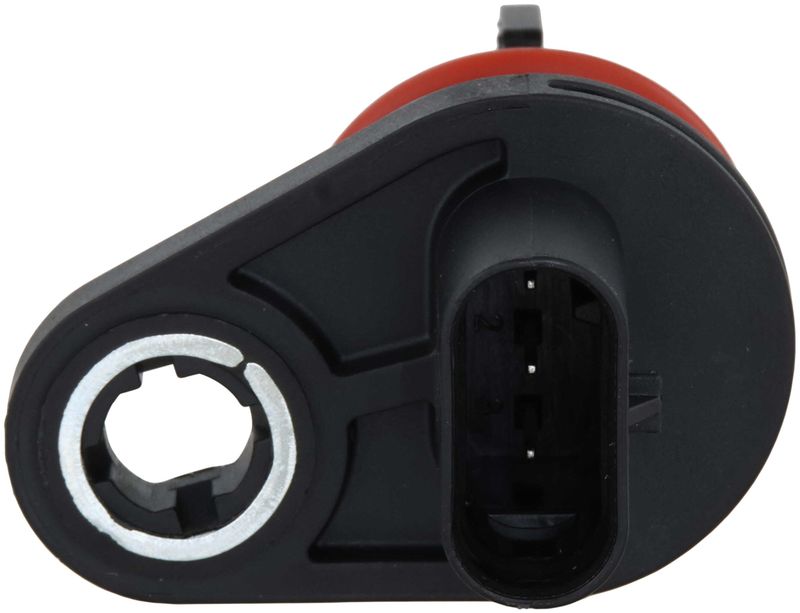

Delphi SS12441 is an engine camshaft position sensor built for intake-side applications on select GM vehicles. It uses a black housing, a 3-terminal male pin connection, and a single oblong connector to deliver OE-standard signal accuracy for proper engine timing feedback.

Compatible with 2019-2023 Chevrolet Silverado 1500, 2020-2023 Cadillac XT5, and 2021-2023 GMC Yukon applications, this Delphi camshaft position sensor supports precise intake camshaft position monitoring across a wide range of Buick, Cadillac, Chevrolet, and GMC models.

Key Features

• Delphi SS12441 engine camshaft position sensor for intake position applications
• Black sensor body with 1 oblong connector
• 3-terminal male pin design
• OE-standard testing and calibration for accurate readings
• Package includes the sensor and instruction sheet
• No wiring harness included

Detailed Description

Delphi SS12441 is engineered for vehicles that rely on accurate intake camshaft position data for engine control. Delphi validates its sensors to OE standards, helping maintain consistent signal output for the engine management system. This part cross-references Standard Ignition PC1236 for the same application. Common search terms for this part include intake camshaft position sensor for Chevrolet Silverado 1500, Cadillac XT5 camshaft sensor replacement, and GMC Yukon intake cam sensor.

Vehicle coverage includes 2020-2023 Buick Encore GX, 2021-2023 Buick Envision, 2020-2023 Cadillac CT4, 2019-2023 Cadillac XT4, 2020-2023 Chevrolet Blazer, 2019-2023 Chevrolet Silverado 1500, 2020-2023 GMC Acadia, and 2021-2023 GMC Yukon. The Delphi SS12441 part number is also searched as a direct replacement for intake camshaft sensor service on select GM platforms.

Common Issues This Sensor Can Address

• Camshaft position signal faults stored by the engine control module
• Rough running caused by inaccurate intake camshaft timing feedback
• Hard starting related to incorrect camshaft sensor input
• Check engine light concerns tied to camshaft position sensor performance
• Intermittent drivability issues from unstable sensor readings

Installation Notes and Tips

Verify connector shape, terminal count, and intake position before installation. Inspect the harness connector for corrosion, bent terminals, or damaged locking tabs before plugging in the new sensor. Clear diagnostic trouble codes after installation and confirm proper engine operation with a scan tool if required.

Quality Assurance

Delphi backs this sensor with OE development and product validation methods, and each unit is tested and calibrated to OE standards for accurate readings and reduced comeback risk.
