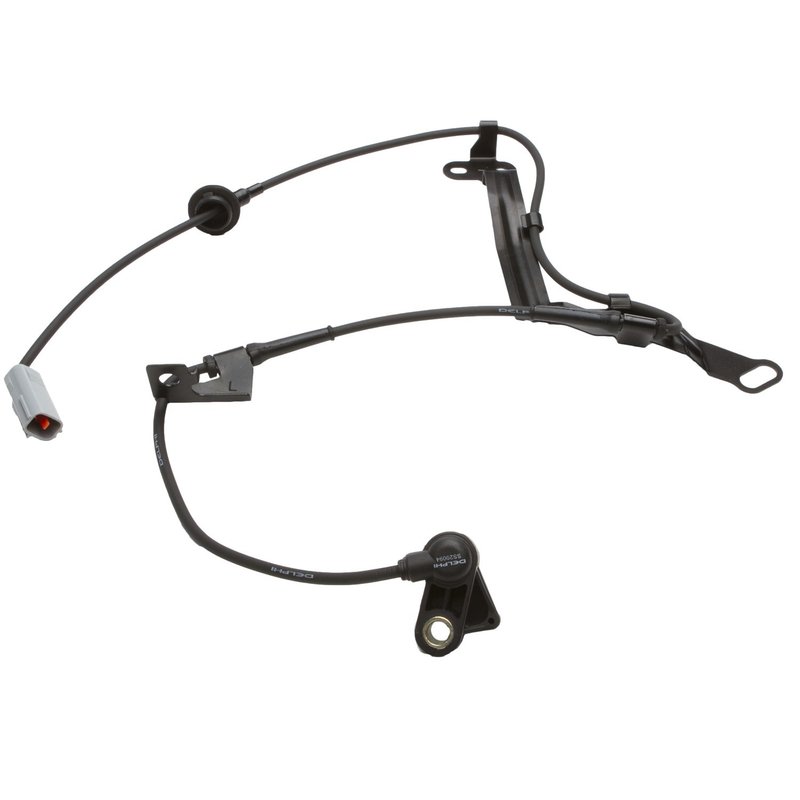

Delphi SS20094 ABS Wheel Speed Sensor - Front Left

Delphi ABS Wheel Speed Sensor SS20094

Delphi SS20094 is a front left ABS wheel speed sensor for select Mazda Protege and Mazda Protege5 applications. It uses a square female connector with a blade-style terminal interface and includes a wiring harness for a direct replacement on the specified position.

Key Features

• ABS wheel speed sensor for the front left position
• Square connector with 1 female connector and 2 male blade terminals
• Wiring harness included for the listed application
• Package contents include the ABS wheel speed sensor and instruction sheet
• Built from Delphi OE heritage and aftermarket engineering knowledge

Detailed Description

Delphi SS20094 is an ABS wheel speed sensor engineered for 1999-2003 Mazda Protege and 2002-2003 Mazda Protege5 front left applications. It is built around Delphi’s OE experience, drawing on supplier knowledge developed through work with major automakers and applied to aftermarket replacement parts. The sensor’s connector and terminal layout are matched to the listed vehicle fitment for straightforward integration with the factory ABS system.

This part cross-references Standard Ignition ALS1212 for the same application. If you are replacing a failed Mazda Protege ABS sensor or servicing a Mazda Protege5 front left wheel speed sensor, Delphi SS20094 provides the correct fitment-specific replacement.

What It Helps Fix

• ABS warning light caused by a failed front left wheel speed sensor
• Erratic or missing wheel speed signal at the front left wheel
• ABS system fault codes related to wheel speed input
• Loss of anti-lock brake function from a damaged sensor or harness
• Intermittent braking system alerts tied to connector or wiring issues

Installation Notes and Tips

Verify the front left position before installation and compare the connector shape, terminal count, and harness routing to the original part. Inspect the wheel hub area, tone ring, and wiring path for damage or corrosion before installing the new sensor. For 1999-2003 Mazda Protege and 2002-2003 Mazda Protege5 models, confirm the ABS fault is related to the wheel speed sensor circuit before clearing codes.

Quality Assurance

Delphi builds this replacement sensor using OE-based engineering knowledge developed from long-term supplier experience with leading automakers. The included instruction sheet supports proper installation and service on the listed Mazda applications.
