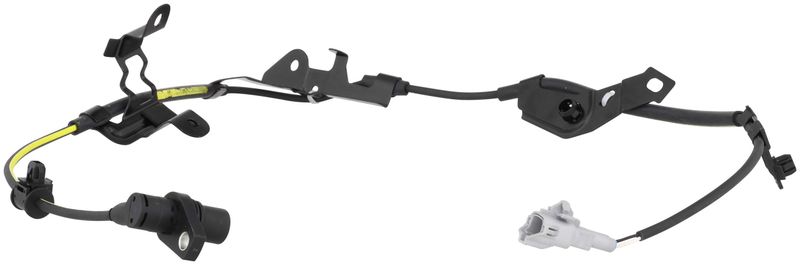

Delphi SS21632 ABS Wheel Speed Sensor - Front Right
| Brand | Delphi SS21632 |
|---|---|
| Position | Front Right |
| Wiring Harness Length | 992 |
| Connector Color | Gray |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Female |
| Wiring Harness Included | Yes |
| Package Contents | Abs wheel speed sensor, instruction sheet |
| Fits | Toyota · 10 vehicles |
OE-standard calibration. Tested for accurate wheel speed signal output and consistent ABS performance.
Connector matched design. Gray female oval connector with pin terminals for a direct electrical interface.
Harness included. Supplied with a wiring harness and instruction sheet for service replacement.
Cross-references Standard Ignition ALS770, 5S6805 and 89542-35050 for the same application. See all 5.
ABS Wheel Speed Sensor Overview
Delphi SS21632 is an ABS wheel speed sensor for select Toyota applications. It is built with OE development and validation methods, and it is tested and calibrated to OE standards for accurate signal output and reduced comebacks.
Key Features
- ABS wheel speed sensor with OE-standard testing and calibration
- Gray female connector with oval shape and 2 terminals
- Includes a wiring harness for the sensor assembly
- Wiring harness length: 992
- Part number SS21632 for easy identification
Detailed Description
This Delphi ABS wheel speed sensor is engineered for direct replacement service on compatible Toyota brake and stability systems. The sensor uses a single gray female connector, pin terminals, and an oval connector design to match the original-style electrical interface. Delphi SS21632 is backed by OE-focused development and product validation, helping deliver consistent wheel speed data for the ABS system. This part cross-references Standard Ignition ALS770 for the same application.
Compatible With 1996-2002 Toyota 4Runner, front right, and 1998-2000 Toyota Tacoma, front right. Use SS21632 when replacing a worn or inaccurate ABS wheel speed sensor on these Toyota 4Runner and Toyota Tacoma applications.
What It Is Used For
- Restoring ABS warning light concerns caused by a faulty sensor
- Correcting erratic wheel speed signal readings
- Addressing traction control or stability system faults tied to wheel speed input
- Replacing a damaged connector or harness at the sensor
Installation Notes and Tips
Verify connector shape, terminal count, and harness routing before installation. Confirm front right fitment and compare the original sensor location and electrical connection to the vehicle before final assembly. Part number SS21632 should be matched to the application listing and existing sensor configuration.
Quality Assurance
Delphi sensors are tested and calibrated to OE standards, with product validation methods used to support accurate readings and consistent performance.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2002 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 2001 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 2000 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 2000 | Toyota | Tacoma | SR5 | 4WD | 3.4L | V6 | Front Right | — |
| 1999 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 1999 | Toyota | Tacoma | SR5 | 4WD | 3.4L | V6 | Front Right | — |
| 1998 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 1998 | Toyota | Tacoma | SR5 | 4WD | 3.4L | V6 | Front Right | — |
| 1997 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
| 1996 | Toyota | 4Runner | SR5 | — | 3.4L | V6 | Front Right | — |
