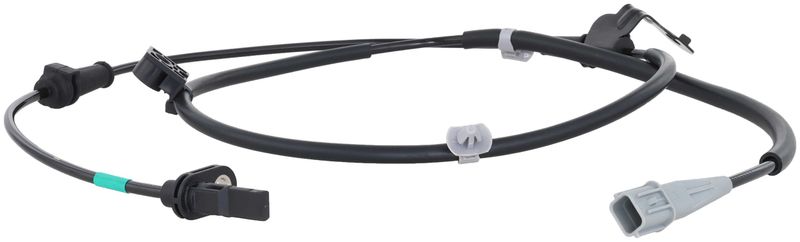

Delphi SS21680 ABS Wheel Speed Sensor - Front Left
| Brand | Delphi SS21680 |
|---|---|
| Position | Front Left |
| Length | 1350 |
| Length | 53.19 |
| Wiring Harness Length | 1350 |
| Wiring Harness Length | 5319 |
| Connector Color | Gray |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Connector Quantity | 1 |
| Connector Shape | Recangular |
| Terminal Quantity | 2 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Package Contents | Abs wheel speed sensor, instruction sheet |
| Fits | Hyundai and Kia · 8 vehicles |
OE-standard calibration. Delphi sensors are tested for accurate readings and fewer comebacks.
Wiring harness included. Comes with an integrated harness for a simpler replacement.
Mounting hardware included. Installation hardware is included for added convenience.
Cross-references Standard Ignition ALS3363, 5S17478 and 58930-S9000 for the same application. See all 5.
Delphi ABS Wheel Speed Sensor SS21680
Delphi SS21680 is a front left ABS wheel speed sensor built for precise wheel-speed signal reporting on select Hyundai and Kia applications. It is a direct-fit replacement for 2020-2023 Hyundai Palisade and 2020-2023 Kia Telluride front left positions, with OE-calibrated testing to support accurate braking system input.
Key Features
- ABS wheel speed sensor for the front left position
- OE-standard testing and calibration for consistent signal output
- Includes wiring harness and instruction sheet
- Gray connector with rectangular 1-connector, 2-terminal design
- Mounting hardware included
- Wiring harness length: 1350 mm (53.19 in.)
Product Details
Delphi SS21680 is part of Delphi’s sensor portfolio, which is developed and validated using OE-focused methods. For Hyundai Palisade and Kia Telluride front left ABS service, this sensor is built to deliver accurate wheel-speed readings that the ABS system uses to monitor wheel rotation and support braking control. The part number SS21680 is also referenced in cross-application listings, including Standard Ignition ALS3363.
Compatible With 2020-2023 Hyundai Palisade, front left, and 2020-2023 Kia Telluride, front left. If you are replacing a failing Hyundai Palisade ABS wheel speed sensor or a Kia Telluride front left wheel speed sensor, SS21680 provides a direct replacement path for the listed applications.
Common Issues This Part May Address
- ABS warning light illuminated on the dash
- Wheel speed signal loss at the front left corner
- Intermittent ABS or traction control fault codes
- Erratic braking system input from a damaged sensor
- Sensor failure caused by wiring or connector wear
Installation Notes
Verify the connector shape, terminal count, and front left position before installation. Inspect the wheel hub area, harness routing, and connector condition for corrosion, abrasion, or damage before installing the new sensor. Clear stored ABS fault codes after installation and confirm proper system operation with a scan tool.
Quality Assurance
Delphi tests and calibrates these sensors to OE standards to help maintain accurate readings and reduce repeat repairs. The SS21680 is backed by Delphi’s OE development and product validation process.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Hyundai | Palisade | XRT | 3.8L | V6 | Front Left | — |
| 2023 | Kia | Telluride | SX | 3.8L | V6 | Front Left | — |
| 2022 | Hyundai | Palisade | SEL | 3.8L | V6 | Front Left | — |
| 2022 | Kia | Telluride | SX | 3.8L | V6 | Front Left | — |
| 2021 | Hyundai | Palisade | SEL | 3.8L | V6 | Front Left | — |
| 2021 | Kia | Telluride | SX | 3.8L | V6 | Front Left | — |
| 2020 | Hyundai | Palisade | SEL | 3.8L | V6 | Front Left | — |
| 2020 | Kia | Telluride | SX | 3.8L | V6 | Front Left | — |
