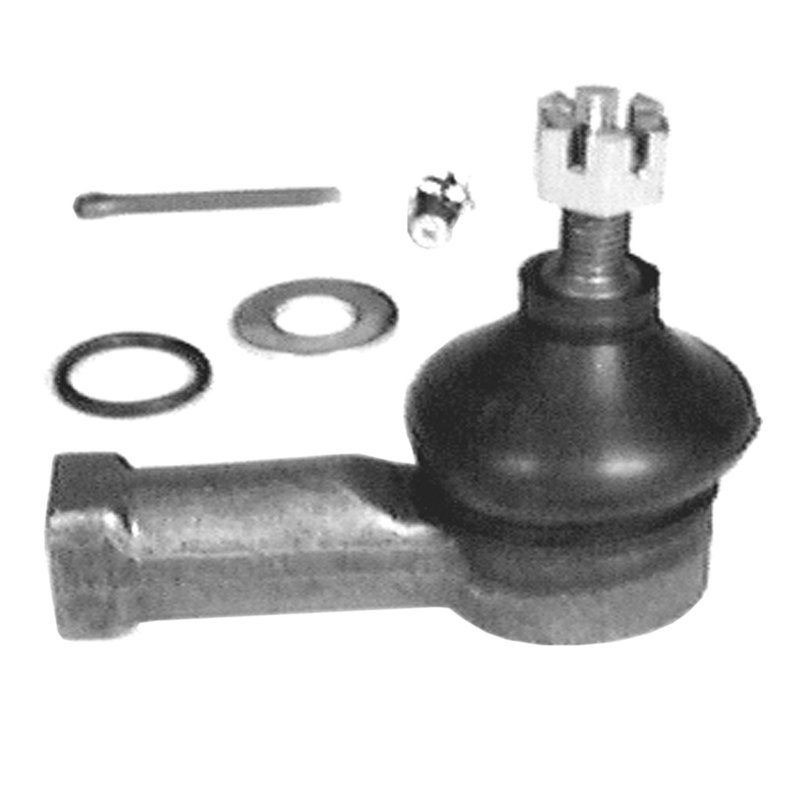

Delphi TA1146 Steering Tie Rod End - Outer

Delphi Steering Tie Rod End TA1146 Overview

The Delphi TA1146 steering tie rod end is designed for reliable steering performance on select Chrysler, Dodge, Hyundai, Mitsubishi, and Plymouth vehicles. This outer tie rod end provides a precise fit for models such as the Dodge Avenger, Hyundai Elantra, Mitsubishi Eclipse, and Plymouth Sundance, ensuring stable and responsive steering control.

• Length: 91.5 mm
• Color: Gray with coated finish for corrosion resistance
• Ends: Female (End 1) and Male (End 2) with clockwise thread direction
• Dust boot made of durable chloroprene rubber included
• High strength steel housing and steel tie rod material
• Standard grade replacement with included mounting hardware
• Non-adjustable, straight type design
• Compatible with multiple models from Chrysler, Dodge, Hyundai, Mitsubishi, and Plymouth

Technical Details and Construction

The Delphi TA1146 tie rod end features a high strength steel housing and steel tie rod material, providing durability and resistance to wear. The coated finish helps protect against corrosion, extending the service life of the component. Both ends have threaded studs with clockwise thread direction—End 1 with a 14.0 mm diameter and 1.5 pitch, and End 2 with a 10.0 mm diameter and 1.25 pitch. The included chloroprene rubber dust boot safeguards the bearing area from dirt and moisture, while the plastic bearing material ensures smooth steering operation. This standard grade, non-adjustable, straight tie rod end is designed as an outer component and comes with all necessary mounting hardware for installation.

Compatible Vehicles and Applications

This steering tie rod end is compatible with a range of vehicles, including but not limited to:

• Chrysler Sebring, Stratus
• Dodge Avenger, Colt, Stealth
• Hyundai Elantra, Excel, Sonata
• Mitsubishi Eclipse, Galant, Laser, Tredia
• Plymouth Sundance, Scoupe

Use the Delphi TA1146 for reliable steering component replacement on these models to maintain proper alignment and steering response.

Common Issues Addressed by the Delphi TA1146

• Steering play or looseness causing imprecise handling
• Uneven tire wear due to misaligned tie rod ends
• Noise or clunking sounds during steering maneuvers
• Vibration or shaking in the steering wheel
• Damaged or torn dust boot allowing contaminants to enter

Installation Notes and Tips

Installation of the Delphi TA1146 tie rod end requires proper tools and alignment equipment. Ensure the vehicle is securely lifted and the steering system is inspected for additional wear. The included mounting hardware simplifies replacement, but it is recommended to have a professional alignment performed after installation to maintain optimal steering geometry. Thread directions are clockwise on both ends; verify thread pitch and diameter compatibility with your vehicle’s specifications before installation.

Quality Assurance and Warranty

Delphi manufactures the TA1146 tie rod end to meet standard replacement grade specifications, using high strength steel and durable materials for long-lasting performance. The product includes a coated finish and a chloroprene rubber dust boot to protect against environmental damage. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
