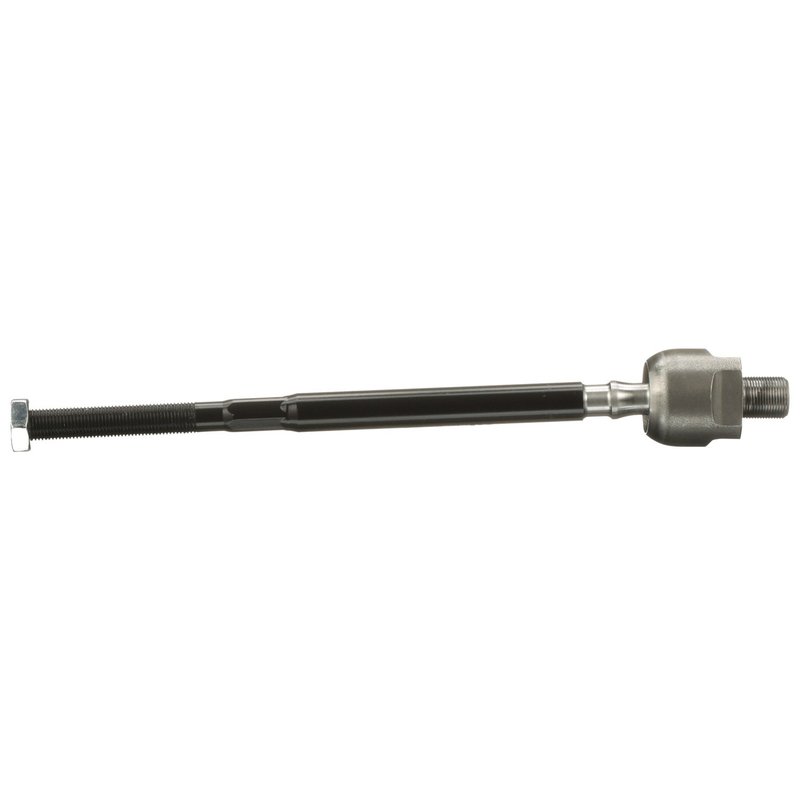

Delphi TA1147 Steering Tie Rod End - Inner
| Brand | Delphi TA1147 |
|---|---|
| Position | Inner |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 16.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 12.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 36.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 9.449 |
| Length Stud Center to End | 240.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Inner |
| Pre-Greased | Yes |
| Tie Rod Material | Steel |
| Tube Diameter | 0.571 |
| Tube Diameter | 14.5 |
| Type | Straight |
| Weight | 1.06 |
| Width | 36.0 |
| Fits | Nissan · 23 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with pre-greased operation.
Adjustable tie rod end. Includes mounting hardware for a straightforward install.
Cross-references Beck/Arnley 101-3621, Mevotech Supreme MEV169 and 48521-35F00 for the same application. See all 14.
Delphi TA1147 Front Inner Tie Rod End
Delphi TA1147 is a standard replacement steering tie rod end for front inner applications on select Nissan vehicles. It is built with OE-focused dimensional and material analysis to support proper steering geometry and consistent fitment on compatible Nissan 240SX, Pulsar NX, Sentra, Maxima, and Pulsar models.
Key Features
- Front inner steering tie rod end
- Delphi part number TA1147
- Steel housing and steel tie rod construction
- Pre-greased design
- Coated black finish
- Adjustable straight style
- Male end connections
- Mounting hardware included
- Polyoxymethylene (POM) bearing material
- OE-focused dimensional and material analysis
Detailed Description
Delphi TA1147 steering tie rod end is engineered as a standard replacement for the front inner steering position. It features a straight, adjustable design with a steel housing, steel tie rod material, and a coated finish for dependable service in steering linkage applications. The unit is pre-greased and uses POM bearing material for smooth operation, while the male threaded ends and specified thread dimensions support accurate installation on the intended Nissan applications. Delphi applies OE-level testing to steering components, including exposure to extreme temperatures and salt spray, to verify durability under demanding conditions. This part cross-references Beck/Arnley 101-3621 for the same application.
Compatible With 1989-1994 Nissan 240SX, inner; 1987-1990 Nissan Pulsar NX, inner; 1983-1984 Nissan Pulsar NX, inner; 1987-1990 Nissan Sentra, inner; 1982-1983 Nissan Sentra, inner; 1985-1988 Nissan Maxima, inner; 1983 Nissan Pulsar, inner.
What This Part Helps Address
- Loose or worn steering linkage at the front inner tie rod location
- Steering play or imprecise road feel
- Uneven tire wear related to steering geometry wear
- Noisy or unstable steering response from a worn tie rod end
- Restoration needs on Nissan 240SX, Sentra, Maxima, Pulsar NX, and Pulsar steering systems
Installation Notes and Tips
Verify thread direction, thread diameter, and overall length before installation. This Delphi TA1147 tie rod end is listed for front inner use and includes mounting hardware. After installation, perform a professional alignment to confirm steering geometry and toe settings. Always compare the removed part to the replacement before assembly on Nissan 240SX and Sentra steering components.
Quality Assurance
Delphi applies OE-based engineering and validation to its steering portfolio, including temperature and corrosion testing and dimensional analysis for fit consistency. The TA1147 is built as a standard replacement part for the listed Nissan applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Nissan | 240SX | — | Inner | — |
| 1993 | Nissan | 240SX | — | Inner | — |
| 1992 | Nissan | 240SX | — | Inner | — |
| 1991 | Nissan | 240SX | — | Inner | — |
| 1990 | Nissan | 240SX | — | Inner | — |
| 1990 | Nissan | Pulsar NX | — | Inner | — |
| 1990 | Nissan | Sentra | 4WD | Inner | — |
| 1989 | Nissan | 240SX | — | Inner | — |
| 1989 | Nissan | Pulsar NX | — | Inner | — |
| 1989 | Nissan | Sentra | 4WD | Inner | — |
| 1988 | Nissan | Maxima | — | Inner | — |
| 1988 | Nissan | Pulsar NX | — | Inner | — |
| 1988 | Nissan | Sentra | — | Inner | — |
| 1987 | Nissan | Maxima | — | Inner | — |
| 1987 | Nissan | Pulsar NX | — | Inner | — |
| 1987 | Nissan | Sentra | — | Inner | — |
| 1986 | Nissan | Maxima | — | Inner | — |
| 1985 | Nissan | Maxima | — | Inner | — |
| 1984 | Nissan | Pulsar NX | — | Inner | — |
| 1983 | Nissan | Pulsar | — | Inner | — |
| 1983 | Nissan | Pulsar NX | — | Inner | — |
| 1983 | Nissan | Sentra | — | Inner | — |
| 1982 | Nissan | Sentra | — | Inner | — |
