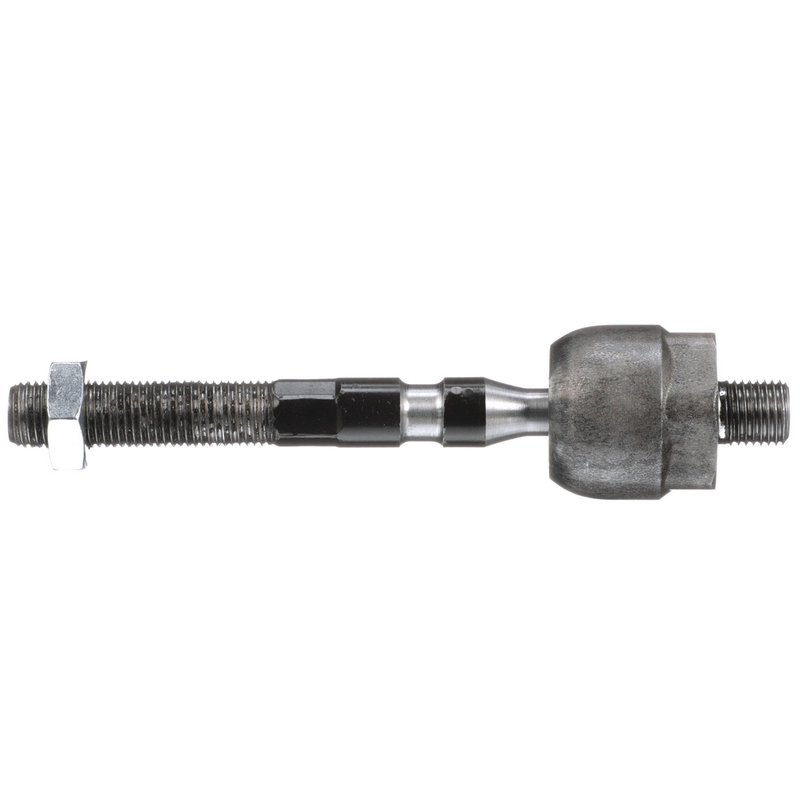

Delphi TA1149 Steering Tie Rod End - Inner
| Brand | Delphi TA1149 |
|---|---|
| Position | Inner |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Dust Boot Included | No |
| End 1 Gender | Male |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 37.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 2.717 |
| Length Stud Center to End | 69.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Inner |
| Pre-Greased | Yes |
| Tie Rod Material | Steel |
| Tube Diameter | 0.591 |
| Tube Diameter | 15.0 |
| Type | Straight |
| Weight | 0.86 |
| Width | 37.0 |
| Fits | Toyota · 12 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Coated for added corrosion resistance and durability.
Pre-greased design. Includes mounting hardware for a smoother install.
Cross-references Mevotech Supreme MEV165, 101-3738 and 45503-10020 for the same application. See all 9.
Delphi TA1149 Front Inner Steering Tie Rod End
Delphi TA1149 is a standard replacement steering tie rod end for front inner applications on select Toyota vehicles. It is built with a steel housing and steel tie rod material, pre-greased for service-ready installation, and finished with a coated black surface for added corrosion resistance.
Key Features
- Front inner steering tie rod end
- Fits select 1980-1987 Toyota applications, including Corolla, Starlet, and Tercel
- Adjustable straight design for steering linkage service
- Steel housing and steel tie rod construction
- Pre-greased and supplied with mounting hardware
- Clockwise thread direction on both ends
- End thread diameter: 14.0 mm
- Delphi part number TA1149
Detailed Description
Delphi TA1149 is engineered as a standard replacement steering tie rod end for the front inner position. It uses OE-focused dimensional and material analysis to support proper fitment and steering linkage compatibility on select Toyota Corolla, Toyota Starlet, and Toyota Tercel models. The straight, adjustable design helps restore steering connection integrity where wear, looseness, or thread damage has affected the original part. Delphi part number TA1149 is also cross-referenced to Mevotech Supreme MEV165 for the same application.
Built with a steel housing, steel tie rod material, and polyoxymethylene bearing material, this tie rod end is pre-greased and finished in black coated protection. It is intended for vehicles that require a front inner steering tie rod end with 14.0 mm thread diameter, clockwise thread direction, and a 69.0 mm stud-center-to-end length.
What This Part Helps Address
- Steering play or looseness at the front inner linkage
- Uneven steering response caused by worn tie rod components
- Clunking or knocking from steering linkage wear
- Thread wear or fitment issues at the inner tie rod connection
- Restoration of steering geometry on Toyota Corolla, Starlet, and Tercel applications
Installation Notes and Tips
Verify thread direction, thread diameter, and front inner position before installation. Delphi TA1149 includes mounting hardware and arrives pre-greased, which supports a cleaner service process. After installation, a professional wheel alignment is recommended to confirm steering geometry and toe settings. Confirm vehicle-specific fitment for 1980-1982 Toyota Tercel, 1981-1984 Toyota Starlet, and 1983-1987 Toyota Corolla before ordering.
Quality Assurance
Delphi applies OE-level testing and dimensional analysis to its steering portfolio. This part is evaluated for extreme temperature exposure and salt-spray resistance to support durability in demanding service conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1987 | Toyota | Corolla | RWD | Inner | — |
| 1986 | Toyota | Corolla | RWD | Inner | — |
| 1985 | Toyota | Corolla | RWD | Inner | — |
| 1984 | Toyota | Corolla | RWD | Inner | — |
| 1984 | Toyota | Starlet | — | Inner | — |
| 1983 | Toyota | Corolla | — | Inner | — |
| 1983 | Toyota | Starlet | — | Inner | — |
| 1982 | Toyota | Starlet | — | Inner | — |
| 1982 | Toyota | Tercel | — | Inner | — |
| 1981 | Toyota | Starlet | — | Inner | — |
| 1981 | Toyota | Tercel | — | Inner | — |
| 1980 | Toyota | Tercel | — | Inner | — |
