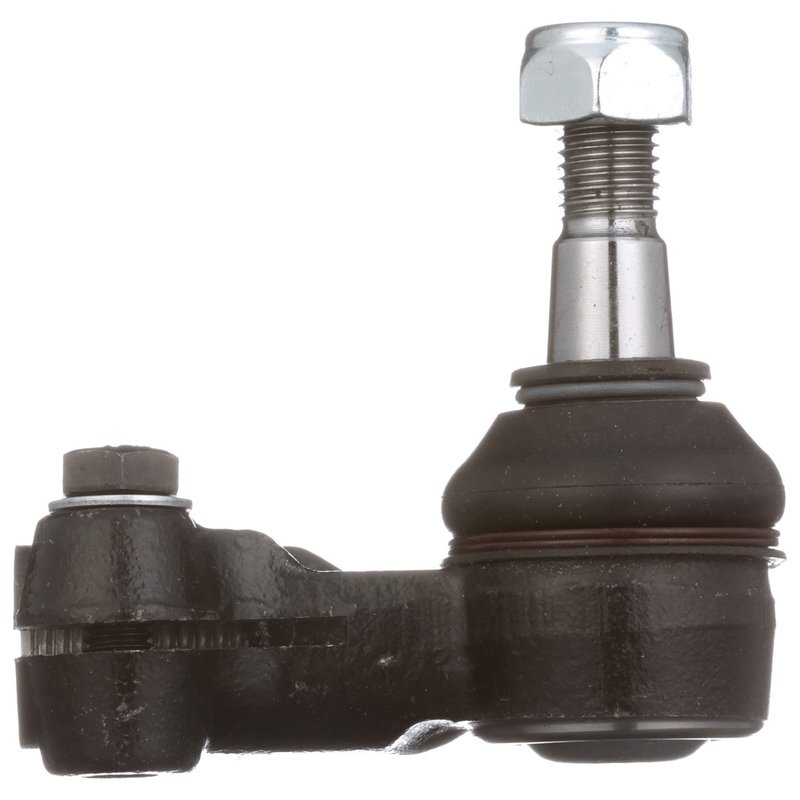

Delphi TA1209 Steering Tie Rod End - Left Outer

Delphi Steering Tie Rod End TA1209 Overview

The Delphi TA1209 steering tie rod end is designed specifically for Saab 9-3 and 900 models, providing reliable steering performance. This black-coated, bent tie rod end ensures a precise fit and durable operation for your vehicle's steering system.

• Compatible with Saab 9-3 and Saab 900 models
• Black coated finish for corrosion resistance
• Pre-greased with dust boot included for protection
• Steel housing and tie rod material for strength
• Includes mounting hardware for straightforward installation

Technical Specifications and Features

The Delphi TA1209 features a bent design with a 43.0 mm width and 87.8 mm height, optimized for the steering geometry of Saab 9-3 and 900 vehicles. Both ends have clockwise thread directions, with End 1 measuring 12.0 mm diameter and End 2 at 16.0 mm diameter. The tie rod end is constructed from steel with a plastic bearing and a chloroprene rubber dust boot to protect against contaminants. It comes pre-greased but is not greaseable, and does not include a grease fitting. The tube diameter is 23.0 mm (0.906 inches), and the stud type is threaded, with a stud length from center to end of 67.0 mm (2.638 inches). The product weighs approximately 1.06 lbs.

Application and Problem Solving

This steering tie rod end is used to connect the steering rack to the steering knuckle, playing a critical role in vehicle handling and alignment. It addresses common steering issues such as:

• Excessive play or looseness in steering
• Uneven tire wear due to misalignment
• Steering vibration or noise
• Difficulty maintaining directional control
• Worn or damaged tie rod ends causing steering instability

Installation Notes and Tips

Installation of the Delphi TA1209 tie rod end requires proper tools and alignment equipment. Since the part is pre-greased and includes mounting hardware, it simplifies the replacement process. Ensure the vehicle is securely lifted and the steering system is inspected for related wear. After installation, a professional wheel alignment is recommended to maintain optimal steering performance and tire life.

Quality Assurance and Warranty

Delphi manufactures the TA1209 steering tie rod end with high-quality steel and protective coatings to meet OEM standards. The inclusion of a dust boot and pre-greased joint helps extend service life. While specific warranty details are not provided, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
