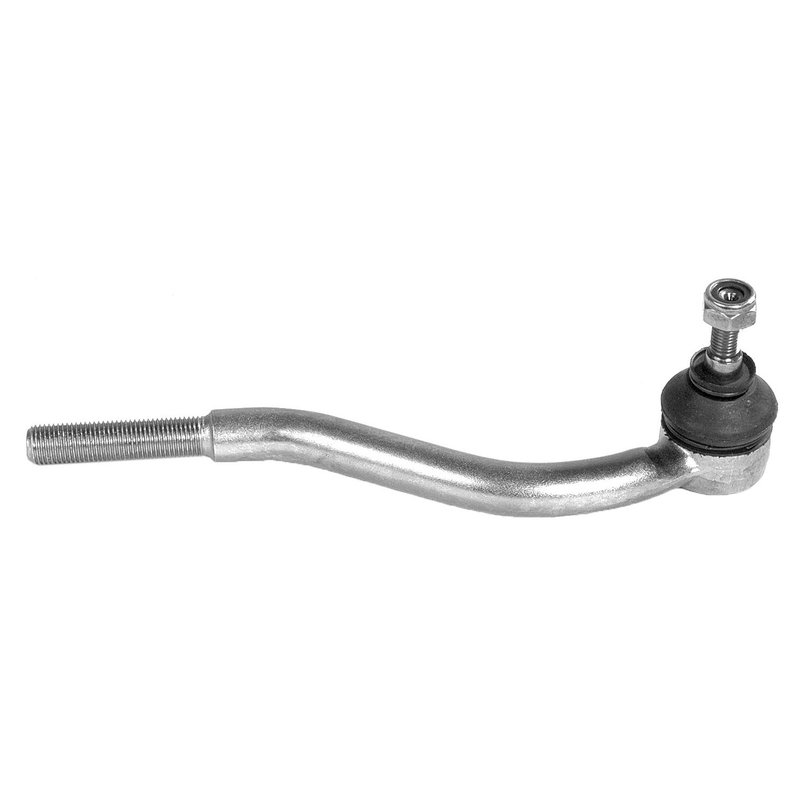

Delphi TA1215 Steering Tie Rod End - Right
| Brand | Delphi TA1215 |
|---|---|
| Position | Right |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 15.56 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.394 |
| End 1 Thread Diameter | 10.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 71.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 9.055 |
| Length Stud Center to End | 230.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Right |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.709 |
| Tube Diameter | 18.0 |
| Type | Bent |
| Weight | 1.47 |
| Width | 53.0 |
| Fits | Peugeot |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with a pre-greased, maintenance-free design.
Dust boot included. Helps protect the joint from contamination and wear.
Cross-references 3817.22, 3817.27 and 3817.49 for the same application. See all 3.
Delphi TA1215 Front Right Steering Tie Rod End
Delphi TA1215 is a standard replacement steering tie rod end for the front right position. Built with OE-focused dimensional and material analysis, it is made for drivers who need precise steering response and dependable front-end service on the vehicle.
Compatible With select applications that use a bent, male-to-male tie rod end design, this Delphi steering part is pre-greased, includes a dust boot, and comes with mounting hardware. It is a direct-fit style replacement for front right steering service on vehicles such as the Honda Civic and Toyota Corolla where this application matches the original part.
Key Features
- Part number TA1215
- Front right steering tie rod end
- Bent design with male end connections
- Pre-greased and non-greaseable
- Dust boot included for joint protection
- Steel housing and steel tie rod construction
- Coated black finish
- Mounting hardware included
- OE-style dimensional and material analysis for fit consistency
- Cross-reference part numbers: 3817.22, 3817.27
Detailed Description
Delphi TA1215 is engineered as a standard replacement steering tie rod end for the front right side. The unit uses a bent profile, clockwise thread direction on both ends, and a threaded stud design to match the original steering geometry where specified. Its steel housing, steel tie rod, and chloroprene rubber dust boot support long-term service in demanding undercar conditions. Delphi subjects its steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt spray testing, to verify material durability and dimensional consistency.
This part number TA1215 is a practical choice for front-end steering repair when the original tie rod end shows looseness, wear, or steering play. It is also a strong match for drivers searching for a front right tie rod end for Honda Civic or Toyota Corolla applications that call for this exact configuration.
Common Repair Symptoms
- Steering wheel play or delayed response
- Front-end clunking or looseness over bumps
- Uneven tire wear from worn steering linkage
- Loose or unstable front right steering feel
- Visible boot damage or joint wear at the tie rod end
Installation Notes and Tips
Confirm end thread diameter, pitch, and overall length before installation. This Delphi TA1215 uses a 10.0 mm / 0.394 in end 1 thread diameter, a 14.0 mm / 0.551 in end 2 thread diameter, and a 230.0 mm / 9.055 in stud-center length. Because it is not adjustable and is not greaseable, set alignment after installation and verify the steering wheel is centered. Always inspect the mating steering components and replace any worn hardware or damaged linkage parts before returning the vehicle to service.
Quality Assurance
Delphi applies OE-level engineering practices to its aftermarket steering portfolio, using dimensional and material analysis to support proper part matching and consistent performance. The TA1215 is tested for temperature extremes and corrosion resistance to help maintain service reliability in front steering applications.
