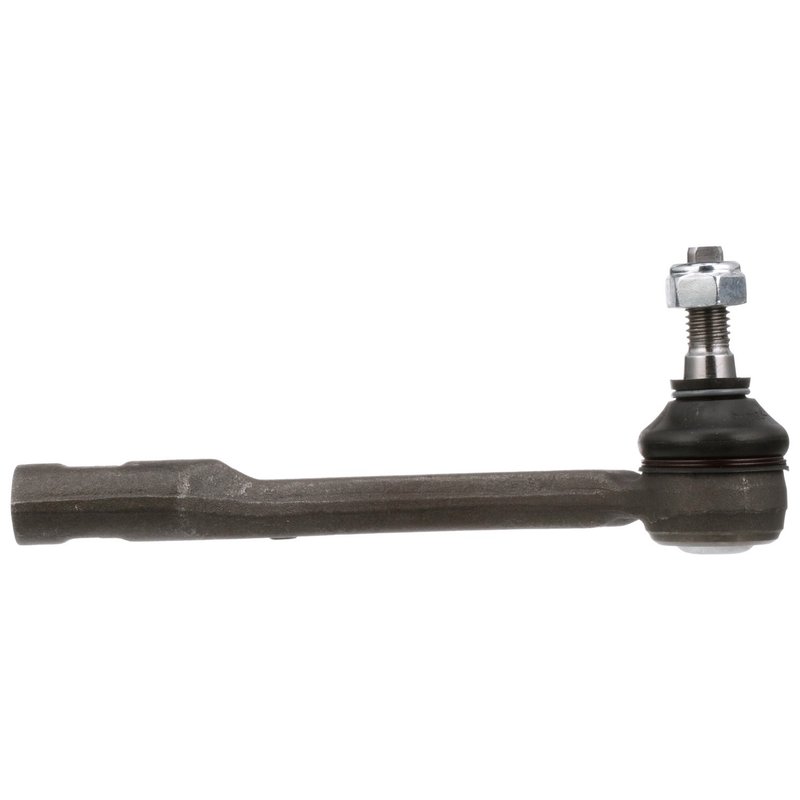

Delphi TA1495 Steering Tie Rod End - Left Outer
| Brand | Delphi TA1495 |
|---|---|
| Position | Left Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Gray |
| Cone Outside Diameter | 16.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Thread Diameter | 0.472 |
| End 1 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Female |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 2.0 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 78.1 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 7.087 |
| Length Stud Center to End | 180.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Left Outer, Left Outer. For the position specific to your vehicle, refer to the Application tab. |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.866 |
| Tube Diameter | 22.0 |
| Type | Bent |
| Weight | 1.54 |
| Width | 57.0 |
| Fits | Volvo · 25 vehicles |
Standard replacement. Built as an OE-style steering tie rod end for dependable compatibility.
Coated steel construction. Helps resist corrosion while maintaining a durable steering connection.
Pre-greased design. Includes a dust boot and mounting hardware for easier installation.
Cross-references Beck/Arnley 101-4692, Beck/Arnley 101-4935 and Mevotech Supreme MES3257 for the same application. See all 12.
Delphi TA1495 Steering Tie Rod End
Delphi TA1495 is a standard replacement steering tie rod end built for front left outer applications on select Volvo models. It combines OE-focused dimensional control with a coated steel housing, pre-greased construction, and a dust boot to support precise steering response in everyday driving.
Key Features
- Part number: TA1495
- Steering tie rod end for front left outer / left outer position
- Fits select 1993-2004 Volvo 850, 960, S70, S90, V70, V90, and C70 applications
- Pre-greased design with no grease fitting
- Dust boot included with chloroprene rubber material
- Coated steel housing and steel tie rod construction
- Bent design with threaded stud type
- Mounting hardware included
- Non-adjustable, greaseable: No
Detailed Description
Delphi TA1495 is engineered as a standard replacement steering tie rod end for Volvo steering systems that require a left outer fitment. Delphi applies OE dimensional and material analysis to help maintain proper compatibility between the replacement part and the original steering geometry. This part number TA1495 is listed for 1993-1997 Volvo 850, 1995-1997 Volvo 960, 1997-1998 Volvo S90, 1997-1998 Volvo V90, 1998-2000 Volvo S70, 1998-2000 Volvo V70, and 1998-2004 Volvo C70. This part cross-references MOOG Chassis Products ES3257 for the same application.
What It Helps Address
- Loose or vague steering feel at the front left outer tie rod location
- Clunking or play caused by worn steering linkage joints
- Uneven tire wear related to steering end wear
- Steering response issues from a damaged or corroded tie rod end
- Replacement needs on Volvo 850, 960, S70, S90, V70, V90, and C70 models
Installation Notes and Tips
Install TA1495 at the front left outer steering position only where the application matches your vehicle. Verify thread direction, thread diameter, and overall dimensions before installation. Because this tie rod end is pre-greased and does not use a grease fitting, no routine greasing point is provided. After installation, a professional wheel alignment is recommended to restore correct steering geometry.
Quality Assurance
Delphi subjects its steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. The brand also uses dimensional and material analysis to support OE-style fit and function in the aftermarket. Part number TA1495 reflects that OE-focused engineering approach for Volvo steering service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Volvo | C70 | Left Outer | — |
| 2003 | Volvo | C70 | Left Outer | — |
| 2002 | Volvo | C70 | Left Outer | — |
| 2001 | Volvo | C70 | Left Outer | — |
| 2000 | Volvo | C70 | Left Outer | — |
| 2000 | Volvo | S70 | Left Outer | — |
| 2000 | Volvo | V70 | Left Outer | — |
| 1999 | Volvo | C70 | Left Outer | — |
| 1999 | Volvo | S70 | Left Outer | — |
| 1999 | Volvo | V70 | Left Outer | — |
| 1998 | Volvo | C70 | Left Outer | — |
| 1998 | Volvo | S70 | Left Outer | — |
| 1998 | Volvo | S90 | Left Outer | TRW Design Steering Tie Rod End for Rack & Pinion Gear |
| 1998 | Volvo | V70 | Left Outer | — |
| 1998 | Volvo | V90 | Left Outer | — |
| 1997 | Volvo | 850 | Left Outer | — |
| 1997 | Volvo | 960 | Left Outer | — |
| 1997 | Volvo | S90 | Left Outer | TRW Design Steering Tie Rod End for Rack & Pinion Gear |
| 1997 | Volvo | V90 | Left Outer | — |
| 1996 | Volvo | 850 | Left Outer | — |
| 1996 | Volvo | 960 | Left Outer | — |
| 1995 | Volvo | 850 | Left Outer | — |
| 1995 | Volvo | 960 | Left Outer | — |
| 1994 | Volvo | 850 | Left Outer | — |
| 1993 | Volvo | 850 | Left Outer | — |
