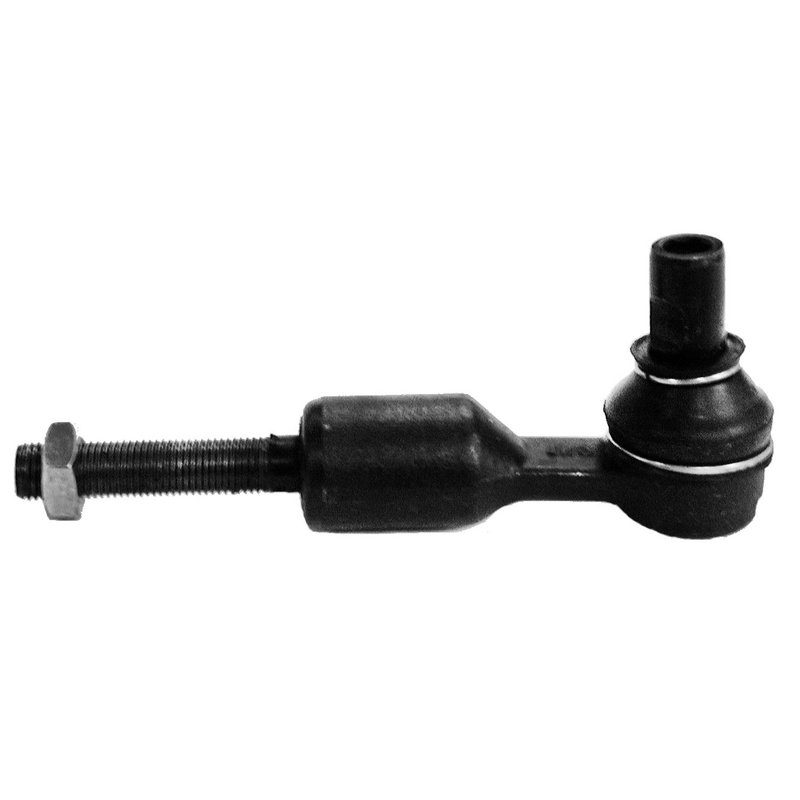

Delphi TA1583 Steering Tie Rod End - Outer
| Brand | Delphi TA1583 |
|---|---|
| Position | Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 17.45 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.687 |
| End 1 Thread Diameter | 17.45 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 70.2 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 6.142 |
| Length Stud Center to End | 156.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Outer |
| Pre-Greased | Yes |
| Stud Type | Non-Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 1.22 |
| Tube Diameter | 31.0 |
| Type | Straight |
| Weight | 0.84 |
| Width | 31.0 |
| Fits | Audi · 18 vehicles |
Standard replacement. OE-style steering tie rod end for dependable fit and function.
Coated steel construction. Built to resist corrosion and handle demanding conditions.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references Beck/Arnley 101-4393, Mevotech Supreme MES3646 and MOOG Chassis Products ES3646 for the same application. See all 13.
Delphi TA1583 Front Outer Tie Rod End
Delphi TA1583 is a standard replacement steering tie rod end built for front outer applications on select Audi models. It combines OE-based dimensional analysis with durable materials to support precise steering response and consistent fitment on compatible vehicles.
Key Features
- Front outer steering tie rod end for select Audi A4, A4 Quattro, A8, and A8 Quattro applications
- Pre-greased design with dust boot included
- Steel housing and steel tie rod construction with coated finish
- Male end configuration with non-threaded stud type
- Mounting hardware included
- Delphi part number TA1583
Detailed Description
Delphi TA1583 is engineered as a standard replacement steering tie rod end for the front outer position. It features a straight design, black coated finish, steel housing, steel tie rod material, and a chloroprene rubber dust boot. The unit is pre-greased and does not require a grease fitting, which helps simplify service while maintaining a sealed steering joint. Delphi applies OE-focused dimensional and material analysis to support proper compatibility with the original steering geometry on vehicles such as the Audi A4, Audi A4 Quattro, Audi A8, and Audi A8 Quattro. This part cross-references MOOG ES3646 for the same application.
Common Uses
- Restoring steering precision when the outer tie rod end is worn
- Addressing looseness or play in the front steering linkage
- Correcting clunking or knocking from the front suspension and steering area
- Replacing a damaged dust boot or corroded steering joint
- Supporting proper toe alignment after steering service
Installation Notes
Fits 1996-1999 Audi A4, outer. Fits 1996-1999 Audi A4 Quattro, outer. Fits 1997-1999 Audi A8, outer. Fits 1997-2002 Audi A8 Quattro, outer. Fits 2003 Audi A8 Quattro, outer, to VIN # 4D-004 999. Verify thread direction, end dimensions, and alignment settings before returning the vehicle to service. Delphi TA1583 is a front outer tie rod end, so final wheel alignment is required after installation.
Quality Assurance
Delphi subjects steering components to temperature extremes below -40 C and above 120 C, along with extended salt-spray exposure, to evaluate durability and corrosion resistance. The brand’s OE background and dimensional checks help support consistent replacement quality for Audi steering repairs.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Audi | A8 Quattro | Outer | To VIN # 4D-004 999 |
| 2002 | Audi | A8 Quattro | Outer | — |
| 2001 | Audi | A8 Quattro | Outer | — |
| 2000 | Audi | A8 Quattro | Outer | — |
| 1999 | Audi | A4 | Outer | — |
| 1999 | Audi | A4 Quattro | Outer | — |
| 1999 | Audi | A8 | Outer | — |
| 1999 | Audi | A8 Quattro | Outer | — |
| 1998 | Audi | A4 | Outer | — |
| 1998 | Audi | A4 Quattro | Outer | — |
| 1998 | Audi | A8 | Outer | — |
| 1998 | Audi | A8 Quattro | Outer | — |
| 1997 | Audi | A4 | Outer | — |
| 1997 | Audi | A4 Quattro | Outer | — |
| 1997 | Audi | A8 | Outer | — |
| 1997 | Audi | A8 Quattro | Outer | — |
| 1996 | Audi | A4 | Outer | — |
| 1996 | Audi | A4 Quattro | Outer | — |
