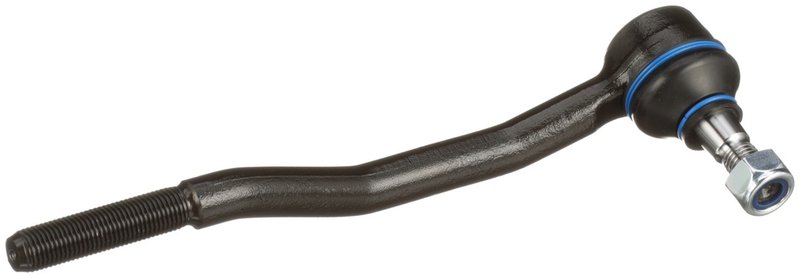

Delphi TA1593 Steering Tie Rod End - Left Outer or Outer
| Brand | Delphi TA1593 |
|---|---|
| Position | Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Cone Outside Diameter | 15.3 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.472 |
| End 1 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 76.7 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 9.094 |
| Length Stud Center to End | 231.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.63 |
| Tube Diameter | 16.0 |
| Type | Bent |
| Weight | 1.4 |
| Width | 46.3 |
| Fits | Cadillac · 5 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with a dust boot for added protection and durability.
Pre-greased design. Includes mounting hardware for a ready-to-install setup.
Cross-references Mevotech Supreme MES80561, Mevotech Supreme MES80955 and MOOG Chassis Products ES80561 for the same application. See all 12.
Delphi TA1593 Outer Tie Rod End
Delphi TA1593 is an outer steering tie rod end built as a standard replacement for select Cadillac Catera applications. It uses OE-focused dimensional and material analysis to support proper fit and steering response on 1997-2001 Cadillac Catera models.
Key Features
- Outer steering tie rod end for the Cadillac Catera
- Pre-greased design with a dust boot included
- Coated black finish with steel housing and steel tie rod construction
- Bent style with male threaded ends and threaded stud design
- Clockwise thread direction on both ends
- Mounting hardware included
- Standard replacement part number TA1593
Fitment Details
Fits 2000-2001 Cadillac Catera, outer. Fits 1997-1999 Cadillac Catera, left outer. This Delphi TA1593 tie rod end is a direct-fit steering component for Cadillac Catera outer steering service, including left outer applications where specified.
What It Helps Address
- Loose or imprecise steering feel at the front end
- Clunking or play from a worn outer tie rod end
- Uneven tire wear caused by steering linkage wear
- Steering wheel wander or poor directional stability
- Failed inspection due to worn steering components
Installation Notes
Verify thread diameter, thread pitch, and position before installation. Delphi TA1593 is pre-greased and includes a dust boot, which supports clean installation and service life. After replacement, perform a professional wheel alignment to restore steering geometry and tire wear characteristics. This part cross-references MOOG Chassis Products ES80561 for the same application.
Quality Assurance
Delphi applies OE-level engineering and testing to its steering portfolio, including exposure to extreme temperatures and extended salt-spray testing. The brand also uses dimensional and material analysis to improve OE-to-aftermarket part matching for the Cadillac Catera platform.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Cadillac | Catera | Outer | — |
| 2000 | Cadillac | Catera | Outer | — |
| 1999 | Cadillac | Catera | Left Outer | — |
| 1998 | Cadillac | Catera | Left Outer | — |
| 1997 | Cadillac | Catera | Left Outer | — |
