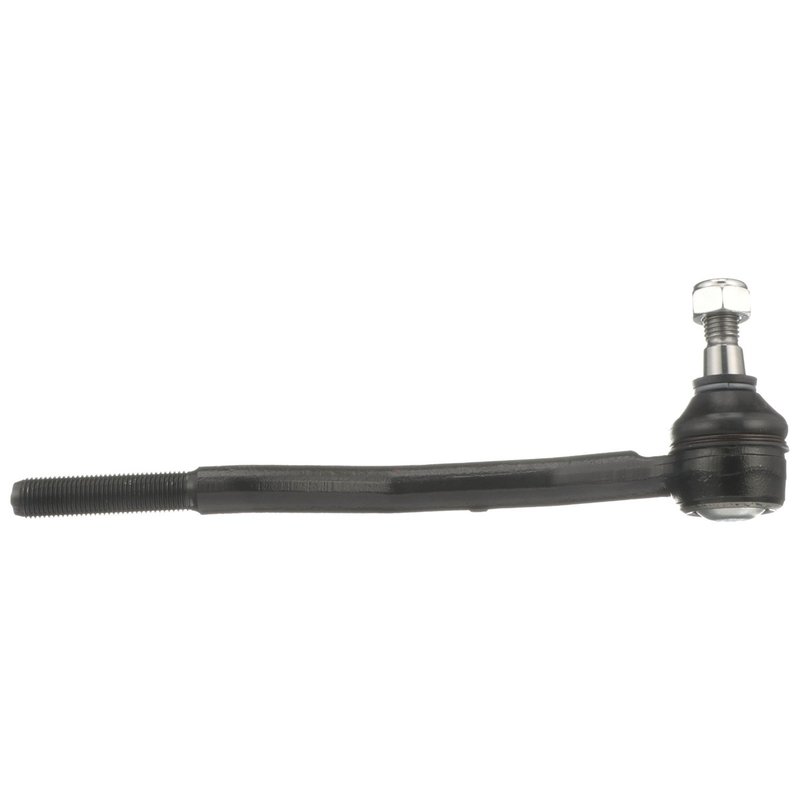

Delphi TA1594 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Delphi

Delphi TA1594 Steering Tie Rod End - Right Outer

Brand Delphi TA1594
Position Right Outer
Adjustable No
Bearing Material Plastic
Color Black
Cone Outside Diameter 15.3
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Male
End 1 Thread Diameter 0.472
End 1 Thread Diameter 12.0
End 1 Thread Direction Clockwise
End 2 Gender Male
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Counterclockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grease Fitting Included No
Greaseable No
Height 76.7
Housing Material Steel
Item Grade Standard Replacement
Length Stud Center to End 9.094
Length Stud Center to End 231.0
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.63
Tube Diameter 16.0
Type Bent
Weight 1.4
Width 46.3
Fits Cadillac · 5 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the original part.

Coated steel construction. Built for durability with a pre-greased, corrosion-resistant finish.

Dust boot included. Helps protect the joint from dirt and wear for smoother steering action.

Cross-references Mevotech Supreme MES80560, MOOG Chassis Products ES80560 and 90510654 for the same application. See all 5.

$29.72Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $29.72
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

OE-Style Steering Tie Rod End

The Delphi TA1594 steering tie rod end is a standard replacement for the right outer steering position on select Cadillac Catera models. Built with OE-focused dimensional and material analysis, it is made to match the original steering geometry and fitment requirements for a precise repair.

Fits 1997-2001 Cadillac Catera, right outer. This Delphi TA1594 tie rod end is pre-greased, includes a dust boot, and comes with mounting hardware for service replacement work on the Cadillac Catera steering system.

Key Features

  • Part number: TA1594
  • Position: right outer steering tie rod end
  • Standard replacement design
  • Pre-greased for service readiness
  • Dust boot included to help protect the joint
  • Mounting hardware included
  • Steel housing and steel tie rod construction
  • Coated black finish
  • Bent style with threaded stud design
  • Non-adjustable, non-greaseable construction

Detailed Description

Delphi applies OE engineering practices to its steering portfolio, and the TA1594 reflects that approach with careful dimensional and material matching for the aftermarket. It features a male-to-male configuration, clockwise and counterclockwise thread directions at the ends, and a chloroprene rubber dust boot for added joint protection. The steel housing, steel tie rod, and coated finish are selected for everyday steering service, while the pre-greased design helps simplify installation and initial operation. This part cross-references MOOG Chassis Products ES80560 and Mevotech Supreme MES80560 for the same application.

What It Helps Fix

  • Loose or wandering steering at the right front wheel
  • Clunking or play from a worn outer tie rod end
  • Uneven tire wear caused by steering linkage wear
  • Steering response issues during alignment correction
  • Front-end noise traced to the outer steering linkage

Installation Notes and Tips

Verify the right outer position before installation and compare thread direction, thread diameter, and overall dimensions to the removed part. After replacement, a professional wheel alignment is recommended to restore steering geometry on the Cadillac Catera. Confirm all steering fasteners are tightened to the vehicle manufacturer’s specifications.

Quality Assurance

Delphi tests steering components across extreme temperature ranges and salt-spray exposure to evaluate durability and OE-level performance characteristics. The TA1594 is backed by Delphi’s OE-focused engineering and material validation process for aftermarket steering replacement.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2001CadillacCateraRight Outer—
2000CadillacCateraRight Outer—
1999CadillacCateraRight Outer—
1998CadillacCateraRight Outer—
1997CadillacCateraRight Outer—
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mevotech Supreme — MES80560MOOG Chassis Products — ES8056090510654JTE337TO22042
