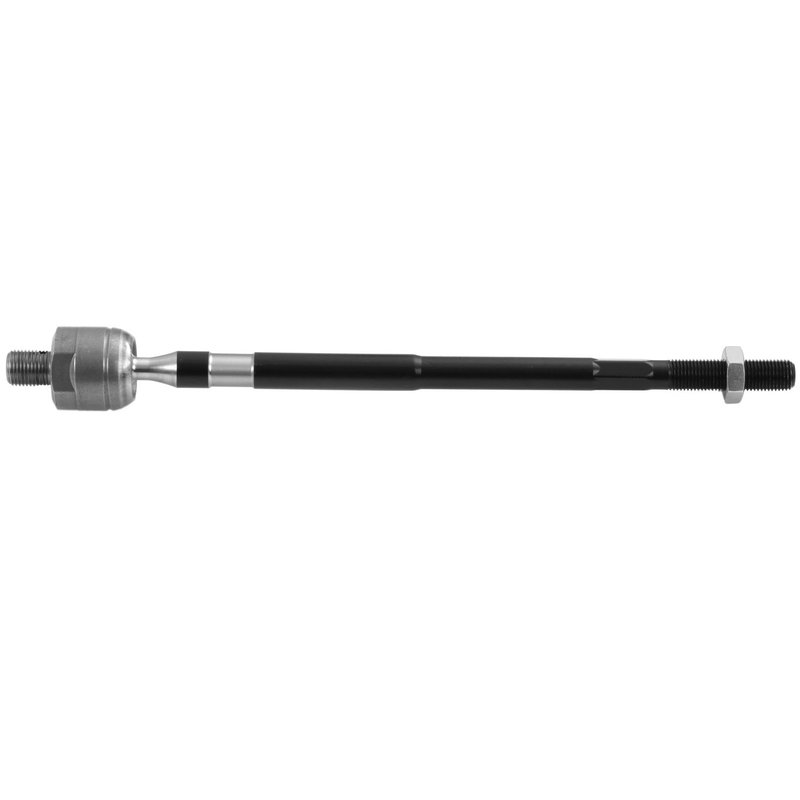

Delphi TA1860 Steering Tie Rod End - Inner

Delphi Steering Tie Rod End TA1860 Overview

The Delphi TA1860 steering tie rod end is designed for precise steering control and reliable performance. Engineered for Hyundai Elantra and Tiburon models, this front inner tie rod end ensures a secure connection within the steering system.

• Compatible with Hyundai Elantra and Tiburon front inner steering positions
• Constructed from durable steel with a coated black finish for corrosion resistance
• Pre-greased for immediate use, reducing maintenance needs
• Adjustable straight type design with male ends on both sides
• Includes mounting hardware for straightforward installation

Technical Specifications and Features

The TA1860 features a steel housing and tie rod material, providing strength and durability under typical driving conditions. Both ends have male threads with a 16.0 mm diameter on end 1 and 14.0 mm on end 2, each with a clockwise thread direction and a 1.5 thread pitch on end 2. The tie rod end measures 292.0 mm in length from stud center to end, with a tube diameter of 16.0 mm and a width and height of 36.0 mm. The bearing material is polyoxymethylen (POM), which offers low friction and wear resistance. This part is pre-greased but does not include a grease fitting or dust boot. The product weight is approximately 1.28 kg.

Application and Problem Solving

This steering tie rod end is specifically designed for Hyundai Elantra and Tiburon vehicles, providing a direct replacement for the front inner tie rod end. It addresses common steering issues such as:

• Loose or imprecise steering response
• Uneven tire wear caused by misalignment
• Steering vibration or noise during operation
• Excessive play in the steering linkage
• Difficulty maintaining proper wheel alignment

Installation Notes and Tips

Installation of the Delphi TA1860 tie rod end requires basic mechanical skills and proper tools. The included mounting hardware facilitates a secure fit. Since the part is pre-greased, additional lubrication is not necessary during installation. Ensure the steering system is properly aligned after replacement to maintain optimal vehicle handling and tire wear.

Quality Assurance and Warranty

The Delphi TA1860 is a standard replacement grade part manufactured to meet OEM specifications for Hyundai Elantra and Tiburon models. The steel construction and coated finish provide durability and corrosion resistance. While specific warranty details are not provided, Delphi parts typically adhere to industry standards for quality and reliability.
