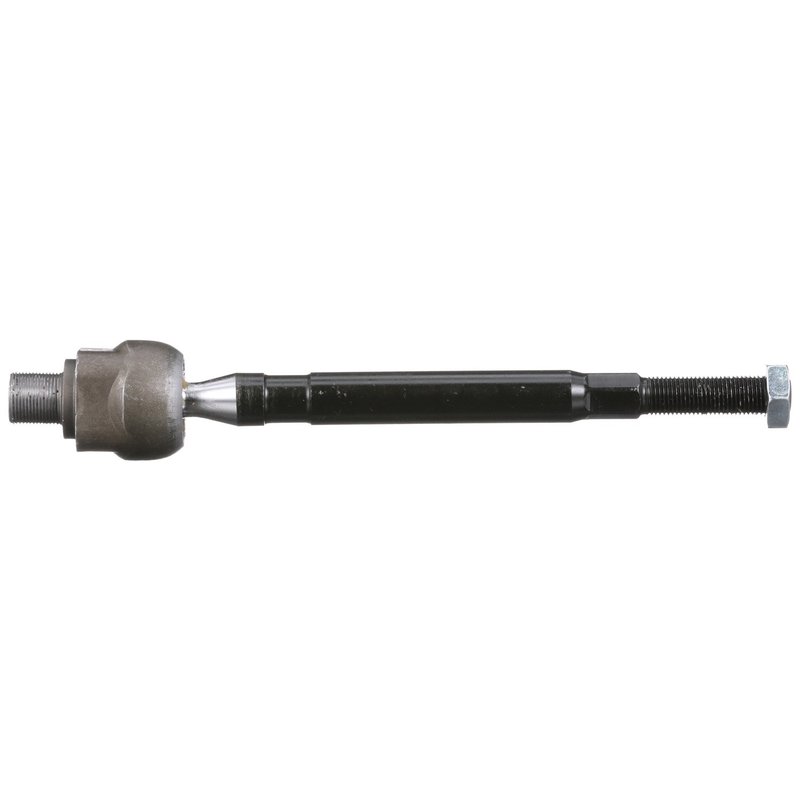

Delphi TA1957 Steering Tie Rod End - Left Inner
OE Quality 60-Day Returns
Delphi

Delphi TA1957 Steering Tie Rod End - Left Inner

Brand Delphi TA1957
Position Left Inner
Adjustable No
Bearing Material Plastic
Color Black and Gray
Dust Boot Included No
End 1 Gender Male
End 1 Thread Diameter 16.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.0
End 2 Gender Male
End 2 Thread Diameter 12.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.25
Friction Material Thickness Coated
Grade Standard
Grease Fitting Included No
Greaseable No
Height 229.5
Housing Material Steel
Item Grade Standard Replacement
Length 229.5
Length Stud Center to End 7.382
Length Stud Center to End 187.5
Mounting Hardware Included Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.63
Tube Diameter 16.0
Type Straight
Weight 1.13
Width 37.0
Fits Honda · 3 vehicles

Standard replacement. Built as an OE-compatibility aftermarket steering part.

Coated steel construction. Helps resist corrosion in demanding conditions.

Straight tie rod end. Includes mounting hardware for easier installation.

Cross-references Beck/Arnley 101-5650, 53011-SLN-A00 and EV800553 for the same application. See all 3.

$35.37Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $35.37
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA1957 Left Inner Tie Rod End

Delphi TA1957 is a straight steering tie rod end built for the left inner position on select Honda Fit applications. It combines OE-based dimensional control with a coated steel construction to support precise steering linkage service on 2006-2008 Honda Fit models with 16mm threads.

For buyers searching for a Honda Fit left inner tie rod end, Delphi TA1957 provides a direct replacement option with the correct thread direction, thread sizes, and mounting style for the listed application.

Key Features

  • Fits 2006-2008 Honda Fit, left inner
  • Part number: TA1957
  • Straight steering tie rod end design
  • Steel housing and steel tie rod material
  • Coated finish for added surface protection
  • Male end connections with threaded stud type
  • End 1 thread diameter: 16.0 mm, 1.0 pitch, clockwise
  • End 2 thread diameter: 12.0 mm, 1.25 pitch, clockwise
  • Mounting hardware included
  • No grease fitting and no dust boot included

Detailed Description

Delphi TA1957 is engineered as a standard replacement steering tie rod end for the left inner steering position. It is built with a steel housing, steel tie rod material, and a coated exterior to help maintain durability in demanding steering service. Delphi applies OE-focused dimensional and material analysis to support proper fitment and consistent steering linkage geometry for the listed Honda Fit applications.

This part cross-references Beck/Arnley 101-5650 for the same application. If you are replacing a worn Honda Fit inner tie rod end, TA1957 is a direct-fit service part for 2006-2008 Honda Fit models with 16mm threads. The Delphi TA1957 part number is also useful when matching steering components by OE-style specifications.

Common Problems This Part Can Address

  • Excessive steering play from a worn inner tie rod end
  • Clunking or looseness in the steering linkage
  • Uneven tire wear caused by steering component wear
  • Imprecise steering response on the left inner side
  • Replacement of a damaged or corroded steering tie rod end

Installation Notes and Tips

Verify the vehicle is a 2006-2008 Honda Fit with the left inner steering position and 16mm threads before installation. Confirm thread direction, thread diameter, and overall length against the removed part to ensure correct replacement. After installation, a professional wheel alignment is recommended to restore steering geometry.

Quality Assurance

Delphi tests steering components across extreme temperature ranges below -40 degrees C and above 120 degrees C, and subjects parts to 720 hours of salt spray exposure. These validation steps support OE-level performance expectations for the TA1957 in the listed Honda Fit applications.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008HondaFitLeft Innerwith 16mm Threads
2007HondaFitLeft Innerwith 16mm Threads
2006HondaFitLeft Innerwith 16mm Threads
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-565053011-SLN-A00EV800553
