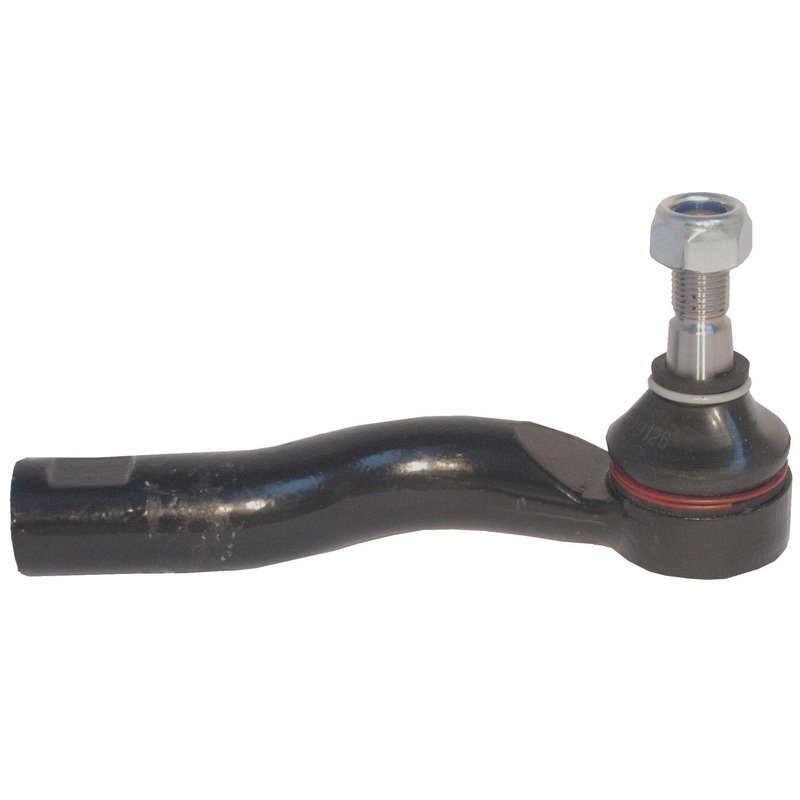

Delphi TA1971 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Delphi

Delphi TA1971 Steering Tie Rod End - Right Outer

Brand Delphi TA1971
Position Right Outer
Adjustable No
Bearing Material Plastic
Color Gray
Cone Outside Diameter 15.2
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Thread Diameter 0.472
End 1 Thread Diameter 12.0
End 1 Thread Direction Clockwise
End 2 Gender Female
End 2 Thread Diameter 0.551
End 2 Thread Diameter 14.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grease Fitting Included No
Greaseable No
Height 81.6
Housing Material Steel
Item Grade Standard Replacement
Length Stud Center to End 5.669
Length Stud Center to End 144.0
Mounting Hardware Included Yes
Position(s) Front Right Outer
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Tube Diameter 0.984
Tube Diameter 25.0
Type Bent
Weight 1.67
Width 46.0
Fits Mazda · 6 vehicles

OE expertise. Delphi applies OE engineering to its aftermarket steering portfolio.

Standard replacement. Built as a direct-fit steering tie rod end for straightforward service.

Coated steel construction. Helps resist corrosion while the pre-greased design reduces upkeep.

Cross-references Beck/Arnley 101-5511, MAS Industries TO65032 and Mevotech Supreme MS76604 for the same application. See all 13.

$34.94Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $34.94
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA1971 Front Right Outer Tie Rod End

Delphi TA1971 is a standard replacement steering tie rod end for the front right outer position on select Mazda 6 models. Built with OE-focused dimensional and material analysis, it supports precise steering response and consistent fitment for 2003-2008 Mazda 6 applications.

Key Features

  • Fits 2003-2008 Mazda 6, front right outer
  • Delphi TA1971 steering tie rod end for OE-style replacement
  • Pre-greased design with no grease fitting required
  • Dust boot included to help protect the joint from contamination
  • Steel housing and steel tie rod construction with coated finish
  • Bent design with threaded stud and mounting hardware included
  • Clockwise thread direction on both ends for straightforward replacement matching

Detailed Description

Delphi TA1971 is engineered for the steering system on the Mazda 6, front right outer position. It uses a pre-greased, non-greaseable design with a chloroprene rubber dust boot, plastic bearing material, and coated steel construction to support dependable steering linkage service. Delphi validates its aftermarket steering parts through extreme temperature and salt-spray exposure testing, helping confirm durability in demanding road conditions. This part cross-references MOOG Chassis Products ES800027 for the same application.

What It Helps Fix

  • Loose or vague steering feel at the front right wheel
  • Clunking or play from a worn outer tie rod end
  • Uneven steering response caused by steering linkage wear
  • Front-end alignment issues related to tie rod end deterioration
  • Contamination-related joint wear from a damaged dust boot

Installation Notes and Tips

Verify the vehicle is a 2003-2008 Mazda 6 and confirm the front right outer position before installation. After replacement of the Delphi TA1971 tie rod end, a professional wheel alignment is recommended to restore steering geometry and tire wear patterns. Compare thread direction, thread diameter, and overall dimensions to the removed part before final assembly.

Quality Assurance

Delphi applies OE-level dimensional and material analysis to its steering portfolio and subjects parts to temperature and corrosion testing to support consistent aftermarket performance. The TA1971 is built as a standard replacement steering component for Mazda 6 applications.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008Mazda6Right Outer—
2007Mazda6Right Outer—
2006Mazda6Right Outer—
2005Mazda6Right Outer—
2004Mazda6Right Outer—
2003Mazda6Right Outer—
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 101-5511MAS Industries — TO65032Mevotech Supreme — MS76604MOOG Chassis Products — ES800027534-809ER03013ES4295G26A-32-280GJ6E-32-280GJ6E-32-280AJTE7585MD-T205MDES-23-62
