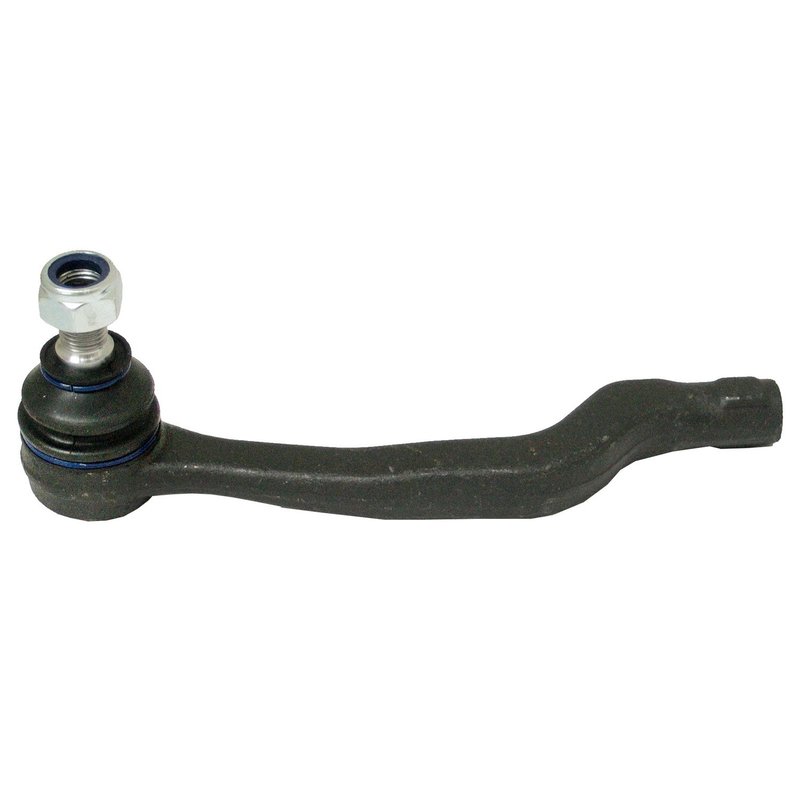

Delphi TA1983 Steering Tie Rod End - Left Outer
| Brand | Delphi TA1983 |
|---|---|
| Position | Left Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Gray |
| Cone Outside Diameter | 14.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Thread Diameter | 0.551 |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Female |
| End 2 Thread Diameter | 0.551 |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 76.2 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 7.972 |
| Length Stud Center to End | 202.5 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Left Outer |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.787 |
| Tube Diameter | 20.0 |
| Type | Bent |
| Weight | 1.81 |
| Width | 54.8 |
| Fits | Mercedes-Benz · 6 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built for durability with a pre-greased, dust-booted design.
OE performance testing. Withstands extreme temperatures and 720 hours of salt spray.
Cross-references Beck/Arnley 101-7724, Mevotech Supreme MS10618 and 169 330 05 03 for the same application. See all 6.
Delphi TA1983 Front Left Outer Tie Rod End
Delphi TA1983 is a standard replacement steering tie rod end for the front left outer position. It is built with OE-focused dimensional and material analysis to match the original steering geometry on select Mercedes-Benz applications, including the 2006-2011 Mercedes-Benz B200.
- Fits 2006-2011 Mercedes-Benz B200, left outer
- Part number: TA1983
- Pre-greased design for ready-to-install service
- Dust boot included to help protect the joint from contamination
- Steel housing and steel tie rod construction
- Coated gray finish for added surface protection
- Clockwise thread direction on both ends
- Female end 2 with 14.0 mm thread diameter and 1.5 pitch
- Mounting hardware included
- Non-adjustable, non-greaseable bent tie rod end
OE-Style Steering Fitment
This Delphi steering tie rod end is engineered for precise front-end steering response and consistent alignment geometry. It is a direct replacement for the front left outer position on the Mercedes-Benz B200, and the TA1983 part number is also useful when cross-checking catalog listings for the same application. This part cross-references Beck/Arnley 101-7724 for the same application.
Common Problems It Can Address
- Loose or vague steering feel at the front left outer tie rod location
- Clunking or play from a worn steering linkage joint
- Uneven tire wear caused by steering end wear or excess movement
- Steering pull or alignment instability after component wear
- Contamination-related joint wear when the dust boot is damaged
Installation Notes
Verify thread direction, end diameter, and position before installation. Because this tie rod end is pre-greased and non-greaseable, no routine grease service is required. After installation on a 2006-2011 Mercedes-Benz B200, a professional wheel alignment is recommended to restore correct steering geometry.
Quality Assurance
Delphi applies OE-level testing and material analysis to its steering portfolio. This part is evaluated for extreme temperature exposure and salt-spray resistance to support durability in demanding road conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Mercedes-Benz | B200 | Left Outer | — |
| 2010 | Mercedes-Benz | B200 | Left Outer | — |
| 2009 | Mercedes-Benz | B200 | Left Outer | — |
| 2008 | Mercedes-Benz | B200 | Left Outer | — |
| 2007 | Mercedes-Benz | B200 | Left Outer | — |
| 2006 | Mercedes-Benz | B200 | Left Outer | — |
