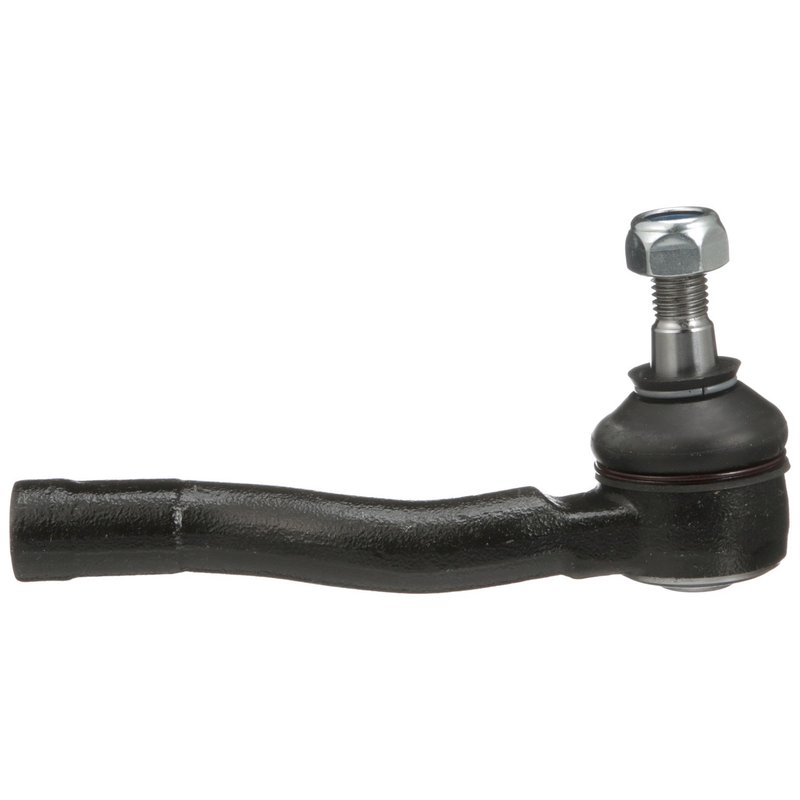

Delphi TA2069 Steering Tie Rod End - Right Outer
OE Quality 60-Day Returns
Delphi

Delphi TA2069 Steering Tie Rod End - Right Outer

Brand Delphi TA2069
Position Right Outer
Adjustable No
Bearing Material Plastic
Color Black
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Female
End 1 Thread Diameter 14.0
End 1 Thread Direction Clockwise
End 1 Thread Pitch 1.5
End 2 Gender Male
End 2 Thread Diameter 12.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.5
Friction Material Thickness Coated
Grade Standard
Grease Fitting Included No
Greaseable No
Height 90.0
Housing Material Steel
Item Grade Standard Replacement
Length 161.7
Mounting Hardware Included Yes
Position(s) Front Right Outer
Stud Type Threaded
Tie Rod Material Steel
Type Bent
Weight 1.34
Width 39.5
Fits Suzuki and Chevrolet · 5 vehicles

OE safety technology. Delphi applies OE expertise to its aftermarket steering portfolio.

Standard replacement. Built for compatibility with OE dimensions and materials.

Coated steel construction. Includes a dust boot and mounting hardware for added protection.

Cross-references 96407486 for the same application. See all 1.

$26.85Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $26.85
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA2069 Front Right Outer Tie Rod End

Delphi TA2069 is a steering tie rod end built for the front right outer position on select Suzuki Forenza models. It combines OE-focused dimensional and material analysis with a coated steel housing, dust boot protection, and a standard replacement design for direct steering service.

Key Features

  • Fits 2004-2008 Suzuki Forenza, right outer
  • Front right outer steering tie rod end
  • Steel housing with coated finish
  • Dust boot included for joint protection
  • Threaded stud design with clockwise thread direction on both ends
  • Standard replacement part number TA2069
  • Cross-reference: 96407486

Detailed Description

Delphi TA2069 is engineered as a steering tie rod end for the front right outer location on 2004-2008 Suzuki Forenza applications. The part uses a bent, steel construction with a coated finish and a chloroprene rubber dust boot to help protect the joint from road contamination. Delphi applies OE-level dimensional and material analysis to support proper fit between the original steering component and the aftermarket replacement. The TA2069 is a standard replacement tie rod end with a 12.0 mm end 2 thread diameter, 14.0 mm end 1 thread diameter, and matching 1.5 thread pitch on both ends. Delphi TA2069 is a direct-fit steering service part for drivers addressing wear in the outer tie rod assembly on Suzuki Forenza steering systems.

What It Helps Address

  • Loose or imprecise steering feel at the front right outer tie rod
  • Clunking or play from a worn steering linkage joint
  • Uneven tire wear caused by steering geometry issues
  • Steering response problems from a damaged outer tie rod end
  • Contamination-related joint wear when the dust boot is compromised

Installation Notes and Tips

Verify the front right outer position before installation and confirm thread size, pitch, and direction against the removed part. After replacement, have the steering system inspected and the alignment checked to restore proper toe settings. Delphi TA2069 includes mounting hardware and a dust boot, and the threaded design should be installed to the vehicle’s specified torque values.

Quality Assurance

Delphi tests steering components across extreme temperature ranges and extended salt-spray exposure to evaluate durability and corrosion resistance. The brand’s OE engineering background and dimensional analysis support consistent replacement fitment for 2004-2008 Suzuki Forenza steering service.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008SuzukiForenzaRight Outer—
2007SuzukiForenzaRight Outer—
2006SuzukiForenzaRight Outer—
2005SuzukiForenzaRight Outer—
2004SuzukiForenzaRight Outer—
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
96407486
