Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

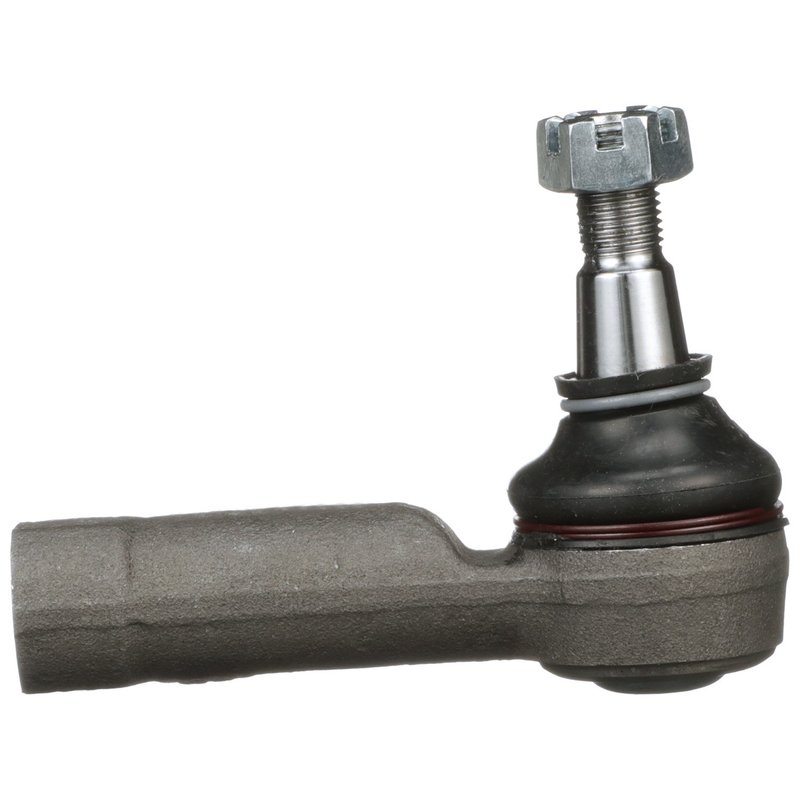

Delphi TA2153 Steering Tie Rod End - Outer
| Brand | Delphi TA2153 |
|---|---|
| Position | Outer |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Gray |
| Cone Outside Diameter | 16.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Thread Diameter | 0.472 |
| End 1 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Female |
| End 2 Thread Diameter | 0.63 |
| End 2 Thread Diameter | 16.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 2.0 |
| Friction Material Thickness | Coated |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 79.6 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 3.425 |
| Length Stud Center to End | 87.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Tube Diameter | 0.906 |
| Tube Diameter | 23.0 |
| Type | Straight |
| Weight | 0.84 |
| Width | 39.0 |
| Fits | Pontiac · 3 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built to resist corrosion and harsh temperature extremes.
Pre-greased design. Includes a dust boot and mounting hardware for easier service.
Cross-references 92143049 and TO91155 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Outer Tie Rod End for Pontiac GTO
Delphi TA2153 is a standard replacement steering tie rod end built for the outer position on select Pontiac GTO models. It uses OE-focused materials and dimensional analysis to support proper fit, steering response, and long-term durability in everyday driving.
- Fits 2004-2006 Pontiac GTO, outer
- Pre-greased design for ready-to-install service
- Dust boot included to help protect the joint from road contamination
- Steel housing and steel tie rod construction with a coated finish
- Threaded stud design with clockwise thread direction at both ends
- Mounting hardware included
- Standard replacement part number TA2153
Built Around OE Specifications
Delphi applies OE steering expertise to its aftermarket line, with testing that includes extreme temperature exposure from below -40 degrees C to over 120 degrees C and salt spray exposure for 720 hours. For Pontiac GTO steering service, TA2153 is engineered as an outer tie rod end with a straight profile, female end 2, and a pre-installed dust boot made from chloroprene rubber. The part number TA2153 also cross-references Monroe Shocks & Struts 172286 for the same application.
Common Uses
- Corrects looseness or play at the outer steering linkage
- Addresses uneven tire wear caused by worn steering joints
- Helps restore steering precision and road feel
- Replaces a damaged or corroded outer tie rod end on Pontiac GTO models
- Supports proper front-end alignment after steering component wear
Installation Notes
Verify outer position fitment before installation on 2004-2006 Pontiac GTO applications. Compare thread diameter, thread pitch, and stud dimensions to the removed part to confirm match. After replacement, a professional wheel alignment is recommended to set steering geometry correctly.
Quality Assurance
Delphi backs this steering component with OE-oriented design, material analysis, and environmental testing intended to support consistent aftermarket performance. TA2153 is built as a standard replacement part for the specified Pontiac GTO outer steering application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Pontiac | GTO | Outer | — |
| 2005 | Pontiac | GTO | Outer | — |
| 2004 | Pontiac | GTO | Outer | — |
| No rows match your filter. | ||||
