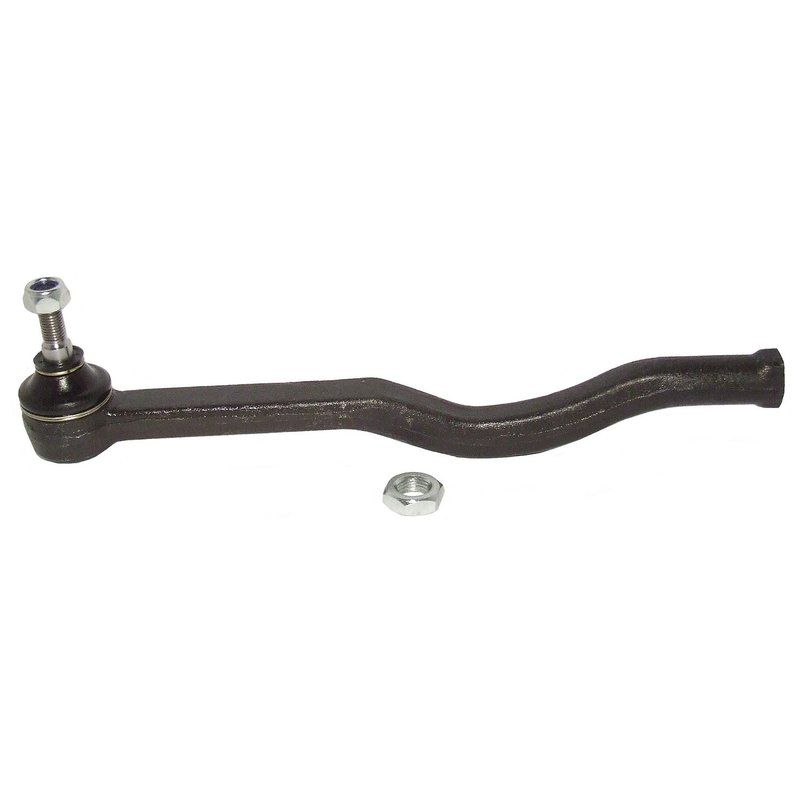

Delphi TA2171 Steering Tie Rod End - Right Inner
| Brand | Delphi TA2171 |
|---|---|
| Position | Right Inner |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Gray |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Female |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Direction | Counterclockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 10.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| Friction Material Thickness | Coated |
| Grade | Standard |
| Grade Type | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 77.0 |
| Housing Material | High Strength Steel |
| Item Grade | Standard Replacement |
| Length | 316.7 |
| Mounting Hardware Included | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Bent |
| Weight | 2.4 |
| Width | 39.5 |
| Fits | Dodge, Mitsubishi, and Plymouth · 18 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the original part.
Coated finish. Helps resist harsh temperatures and salt spray for dependable steering performance.
High-strength steel. Built with a steel tie rod and dust boot for durable steering support.
Cross-references Mevotech Supreme MES2199R, 101-2715 and ES2199R for the same application. See all 6.
Delphi TA2171 Right Inner Tie Rod End
Delphi TA2171 is a steering tie rod end built for the right inner position on select Dodge and Mitsubishi trucks. It combines OE-focused dimensional and material analysis with a coated high-strength steel housing, a steel tie rod, and a protective dust boot for dependable steering service.
Key Features
- Part number: TA2171
- Position: right inner steering tie rod end
- Fits 1979-1982 Dodge D50, right inner
- Fits 1983-1989 Dodge Ram 50, right inner
- Fits 1983-1989 Mitsubishi Mighty Max, right inner
- High-strength steel housing with coated finish
- Steel tie rod construction
- Dust boot included; grease fitting not included
- Mounting hardware included
- Non-adjustable, standard replacement design
Detailed Description
Delphi TA2171 is a standard replacement steering tie rod end for the right inner steering position on Dodge D50, Dodge Ram 50, and Mitsubishi Mighty Max applications. Delphi applies OE-level dimensional and material analysis to help ensure proper fit and consistent steering geometry, while the coated housing and chloroprene rubber dust boot help protect the joint from road contamination. This part cross-references Mevotech Supreme MES2199R for the same application.
Common Steering Issues It Can Address
- Excessive steering play or looseness at the right inner tie rod
- Clunking or knocking from the steering linkage
- Uneven tire wear caused by worn steering components
- Imprecise steering response or wandering
- Boot damage that exposes the joint to dirt and moisture
Installation Notes and Tips
Confirm the vehicle’s steering layout and right inner position before installation. The TA2171 uses a female end 1 with counterclockwise thread direction and a male end 2 with clockwise thread direction, so thread orientation should be matched carefully during service. After installation, a professional alignment is recommended to restore correct toe settings and steering feel.
Quality Assurance
Delphi subjects steering components to extreme temperature and corrosion testing, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. That validation supports OE-style durability for daily driving and long-term service on compatible Dodge and Mitsubishi trucks.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1989 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1988 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1988 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1987 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1987 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1986 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1986 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1985 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1985 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1984 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1984 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1983 | Dodge | Ram 50 | RWD | Right Inner | — |
| 1983 | Mitsubishi | Mighty Max | RWD | Right Inner | — |
| 1982 | Dodge | D50 | RWD | Right Inner | — |
| 1981 | Dodge | D50 | — | Right Inner | — |
| 1980 | Dodge | D50 | — | Right Inner | — |
| 1979 | Dodge | D50 | — | Right Inner | — |
