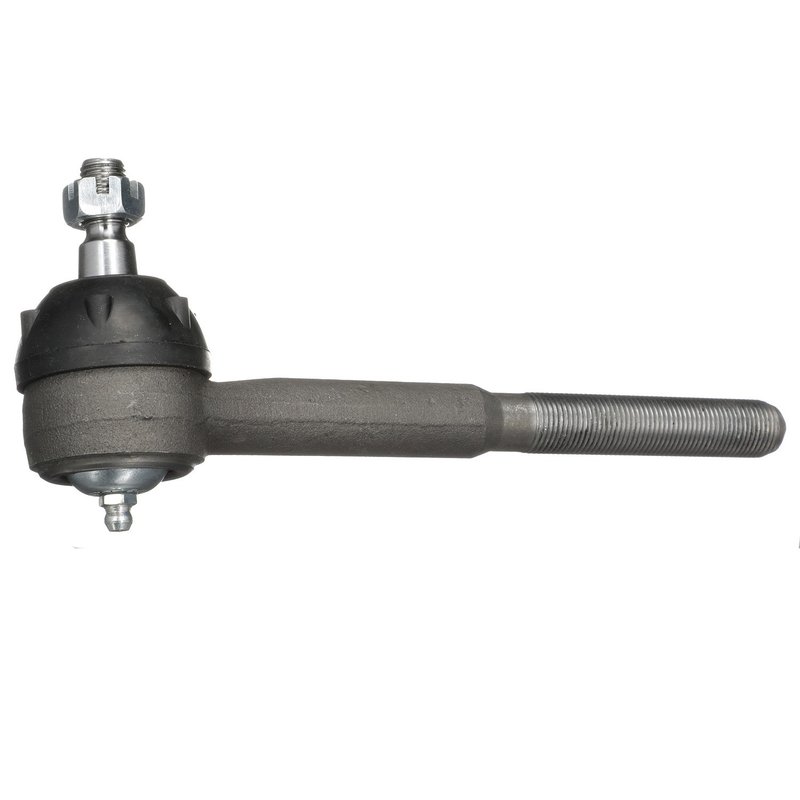

Delphi TA2198 Steering Tie Rod End - Inner or Right Outer
| Brand | Delphi TA2198 |
|---|---|
| Position | Inner |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 0.625 |
| End 1 Thread Direction | Clockwise |
| End 1 Threads Per Inch | 18 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.438 |
| End 2 Thread Direction | Clockwise |
| End 2 Threads Per Inch | 20 |
| Friction Material Thickness | Coated |
| Grade | Standard |
| Grade Type | Standard |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Height | 85.0 |
| Housing Material | High Strength Steel |
| Item Grade | Standard Replacement |
| Length | 205.0 |
| Length Stud Center to End | 183.0 |
| Mounting Hardware Included | Yes |
| Position(s) | Inner, Right Outer. For the position specific to your vehicle, refer to the Application tab. |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Straight |
| Weight | 1.32 |
| Width | 44.5 |
| Fits | Chevrolet and GMC · 21 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated finish. Helps resist harsh conditions and salt spray exposure.
Pre-greased. Includes a grease fitting and dust boot for serviceability.
Cross-references Mevotech Supreme MES370R, MOOG Chassis Products ES370R and 3855947 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA2198 Steering Tie Rod End
Delphi TA2198 is a standard replacement steering tie rod end built for precise steering linkage service on select classic Chevrolet and GMC applications. It uses OE-focused dimensional and material analysis to support proper fit, while the pre-greased, greaseable design helps simplify service.
Key Features
- Steering tie rod end for inner and right outer positions, depending on vehicle application
- High strength steel housing with coated finish
- Pre-greased and greaseable with grease fitting included
- Dust boot included to help protect the joint
- Threaded stud design with clockwise thread direction on both ends
- Mounting hardware included
- Standard replacement part number TA2198
Detailed Description
Delphi TA2198 is engineered for steering systems that require a straight tie rod end with OE-style dimensional accuracy. Delphi subjects its steering components to extreme temperature cycling from below -40 degrees C to over 120 degrees C, along with extended salt spray exposure, to evaluate durability in demanding conditions. This part is built with a steel tie rod body, high strength steel housing, and a chloroprene rubber dust boot for added protection at the joint. It is a direct-fit style replacement for applications such as Chevrolet C10 Suburban, Chevrolet Bel Air, Chevrolet Caprice, Chevrolet Impala, GMC G15/G1500 Van, and GMC G1000 Series. For buyers searching for Delphi TA2198 steering tie rod end fitment, this part supports the specified inner and right outer positions listed below.
This part cross-references Mevotech Supreme MES370R and MOOG Chassis Products ES370R for the same application.
Vehicle Fitment
- Fits 1967-1970 Chevrolet C10 Suburban, Inner
- Fits 1965-1968 Chevrolet Bel Air, Inner
- Fits 1966-1968 Chevrolet Caprice, Inner
- Fits 1965-1968 Chevrolet Impala, Inner
- Fits 1967-1970 GMC G15/G1500 Van, Right Outer
- Fits 1965-1966 GMC G1000 Series, Right Outer
Common Repair Uses
- Loose or imprecise steering response
- Worn tie rod end ball joint movement
- Steering play caused by joint wear
- Boot damage that exposes the joint to contamination
- Service replacement for inner or right outer steering linkage wear
Installation Notes
Verify the position on your vehicle before ordering, since Delphi TA2198 is listed for inner and right outer applications depending on model. Match thread direction, thread diameter, and overall dimensions to the original part during installation. After replacement, a professional alignment is recommended to restore steering geometry and tire wear characteristics. Search terms such as Delphi TA2198, Chevrolet Impala tie rod end, and GMC G15/G1500 Van steering tie rod end can help confirm the correct application.
Quality Assurance
Delphi applies OE-level engineering practices to its aftermarket steering portfolio, including dimensional and material analysis for fit consistency and durability testing under extreme temperature and corrosion conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1970 | Chevrolet | C10 Suburban | Inner | — |
| 1970 | GMC | G15/G1500 Van | Right Outer | — |
| 1969 | Chevrolet | C10 Suburban | Inner | — |
| 1969 | GMC | G15/G1500 Van | Right Outer | — |
| 1968 | Chevrolet | Bel Air | Inner | — |
| 1968 | Chevrolet | C10 Suburban | Inner | — |
| 1968 | Chevrolet | Caprice | Inner | — |
| 1968 | Chevrolet | Impala | Inner | — |
| 1968 | GMC | G15/G1500 Van | Right Outer | — |
| 1967 | Chevrolet | Bel Air | Inner | — |
| 1967 | Chevrolet | C10 Suburban | Inner | — |
| 1967 | Chevrolet | Caprice | Inner | — |
| 1967 | Chevrolet | Impala | Inner | — |
| 1967 | GMC | G15/G1500 Van | Right Outer | — |
| 1966 | Chevrolet | Bel Air | Inner | — |
| 1966 | Chevrolet | Caprice | Inner | — |
| 1966 | Chevrolet | Impala | Inner | — |
| 1966 | GMC | G1000 Series | Right Outer | — |
| 1965 | Chevrolet | Bel Air | Inner | — |
| 1965 | Chevrolet | Impala | Inner | — |
| 1965 | GMC | G1000 Series | Right Outer | — |
