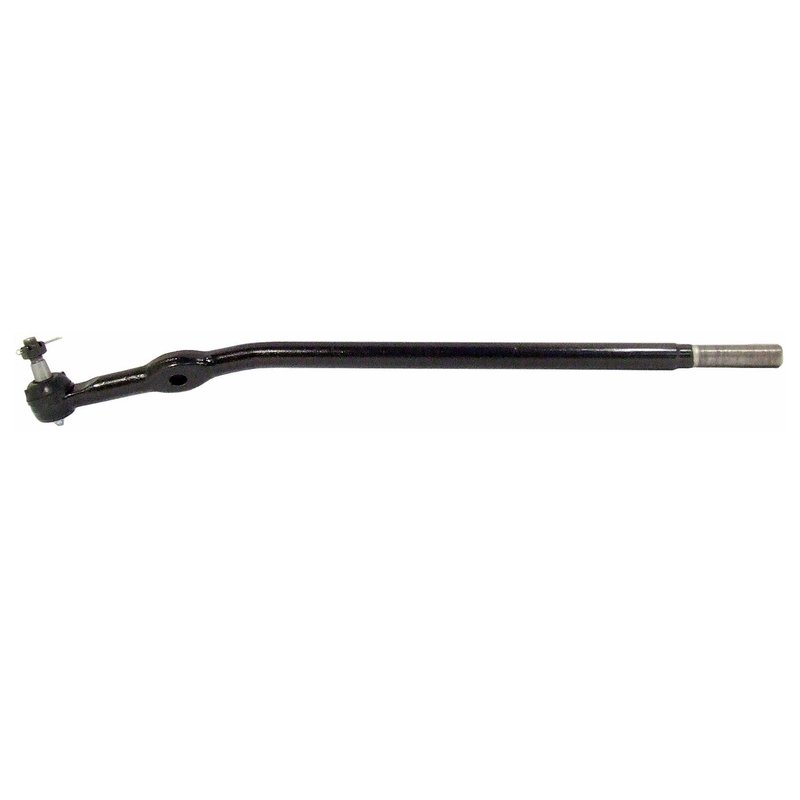

Delphi TA2226 Steering Tie Rod End - Right Inner
| Brand | Delphi TA2226 |
|---|---|
| Position | Right Inner |
| Adjustable | No |
| Bearing Material | Plastic |
| Color | Black |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Male |
| End 1 Thread Diameter | 22.0 |
| End 1 Thread Direction | Counterclockwise |
| End 1 Thread Pitch | 1.5 |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.563 |
| End 2 Thread Direction | Clockwise |
| End 2 Threads Per Inch | 18 |
| Friction Material Thickness | Coated |
| Grade | Standard |
| Grade Type | Standard |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Height | 105.0 |
| Housing Material | High Strength Steel |
| Item Grade | Standard Replacement |
| Length | 717.0 |
| Length Stud Center to End | 695.0 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Bent |
| Weight | 7.23 |
| Width | 45.0 |
| Fits | Ford and Mazda · 31 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Coated steel construction. Built with high-strength steel for durable steering performance.
Pre-greased design. Includes a grease fitting, dust boot, and mounting hardware.
Cross-references Beck/Arnley 101-4703, Mevotech Supreme MDS1161 and MOOG Chassis Products DS1161 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Steering Tie Rod End for Right Inner Applications
Delphi TA2226 is a steering tie rod end built for right inner steering applications on select Ford and Mazda vehicles. It combines OE-based dimensional analysis with materials and testing practices aimed at consistent steering response and fitment.
- Part number: TA2226
- Position: right inner
- Pre-greased with grease fitting included
- Dust boot included for joint protection
- High-strength steel housing with coated finish
- Steel tie rod construction with threaded stud design
- Non-adjustable, standard replacement grade
- End 1 thread direction: counterclockwise; End 2 thread direction: clockwise
- Black finish with chloroprene rubber dust boot
Built for OE Fit and Steering Control
Delphi TA2226 is engineered as a standard replacement steering tie rod end for the right inner position. Delphi applies OE-focused dimensional and material analysis to help match the original part’s fit and function, while its steering components are tested across extreme temperature ranges and salt-spray exposure to support durability in demanding road conditions. This part cross-references MOOG Chassis Products DS1161 for the same application.
Vehicle Fitment
- Fits 1989-1997 Ford Ranger, right inner.
- Fits 1994-1997 Mazda B2300, right inner.
- Fits 1994-1997 Mazda B3000, right inner.
- Fits 1994-1997 Mazda B4000, right inner.
- Fits 1991-1994 Ford Explorer, right inner.
- Fits 1991-1994 Mazda Navajo, right inner.
- Fits 1989-1990 Ford Bronco II, right inner.
What This Part Helps Address
- Loose or wandering steering feel at the right inner tie rod location
- Excessive play caused by worn steering linkage joints
- Clunking or knocking from a deteriorated tie rod end
- Uneven steering response from a damaged or corroded joint
- Boot failure that can expose the joint to contamination
Installation Notes
Verify the right inner steering position before installation and confirm thread direction, thread diameter, and overall dimensions against the original part. TA2226 is pre-greased and includes a grease fitting and dust boot, which supports serviceability after installation. Because this is a non-adjustable steering tie rod end, alignment should be checked after replacement.
Quality Assurance
Delphi uses OE safety technology and applies OE-level engineering practices to its aftermarket steering portfolio. This part is evaluated for temperature extremes and salt-spray resistance, and its dimensional and material analysis is used to support proper OE-to-aftermarket compatibility for the listed Ford Ranger, Ford Explorer, Mazda B2300, Mazda B3000, Mazda B4000, Mazda Navajo, and Ford Bronco II applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | Ranger | — | Right Inner | — |
| 1997 | Mazda | B2300 | — | Right Inner | — |
| 1997 | Mazda | B3000 | — | Right Inner | — |
| 1997 | Mazda | B4000 | — | Right Inner | — |
| 1996 | Ford | Ranger | — | Right Inner | — |
| 1996 | Mazda | B2300 | — | Right Inner | — |
| 1996 | Mazda | B3000 | — | Right Inner | — |
| 1996 | Mazda | B4000 | — | Right Inner | — |
| 1995 | Ford | Ranger | — | Right Inner | — |
| 1995 | Mazda | B2300 | — | Right Inner | — |
| 1995 | Mazda | B3000 | — | Right Inner | — |
| 1995 | Mazda | B4000 | — | Right Inner | — |
| 1994 | Ford | Explorer | 4WD | Right Inner | — |
| 1994 | Ford | Ranger | — | Right Inner | — |
| 1994 | Mazda | B2300 | — | Right Inner | — |
| 1994 | Mazda | B3000 | — | Right Inner | — |
| 1994 | Mazda | B4000 | — | Right Inner | — |
| 1994 | Mazda | Navajo | 4WD | Right Inner | — |
| 1993 | Ford | Explorer | 4WD | Right Inner | — |
| 1993 | Ford | Ranger | — | Right Inner | — |
| 1993 | Mazda | Navajo | 4WD | Right Inner | — |
| 1992 | Ford | Explorer | 4WD | Right Inner | — |
| 1992 | Ford | Ranger | — | Right Inner | — |
| 1992 | Mazda | Navajo | 4WD | Right Inner | — |
| 1991 | Ford | Explorer | 4WD | Right Inner | — |
| 1991 | Ford | Ranger | — | Right Inner | — |
| 1991 | Mazda | Navajo | — | Right Inner | — |
| 1990 | Ford | Bronco II | — | Right Inner | — |
| 1990 | Ford | Ranger | — | Right Inner | — |
| 1989 | Ford | Bronco II | RWD | Right Inner | — |
| 1989 | Ford | Ranger | RWD | Right Inner | — |
