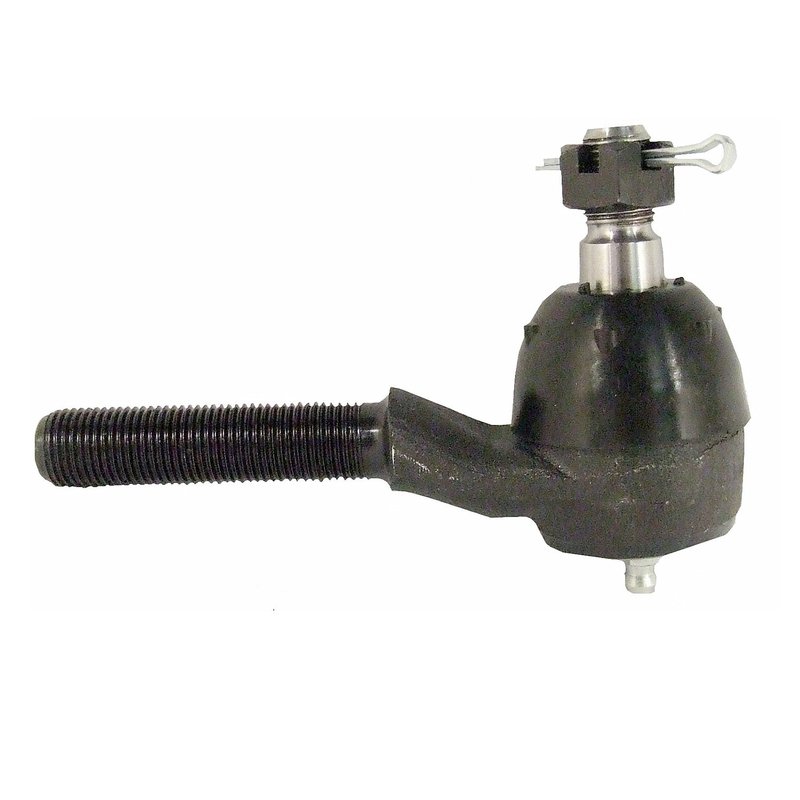

Delphi TA2309 Steering Tie Rod End - Outer

Delphi Steering Tie Rod End TA2309 Overview

The Delphi TA2309 steering tie rod end is engineered for reliable steering performance on select Chrysler and Dodge vehicles. Designed with durability and precision in mind, this gray-coated bent tie rod end ensures consistent handling and control for models like the Dodge Charger and Chrysler Town & Country.

• Length: 122.0 mm with a width of 38.0 mm and height of 83.0 mm
• Coated finish for corrosion resistance
• Pre-greased and grease fitting included for maintenance ease
• Dust boot made of chloroprene rubber to protect internal components
• High strength steel housing with plastic bearing material
• Both ends feature male threaded studs with clockwise thread direction
• Mounting hardware included for straightforward installation
• Standard grade replacement part, non-adjustable

Technical Details and Construction

The TA2309 tie rod end is constructed from high strength steel, providing the necessary durability for steering components subjected to constant stress. Its bent design accommodates specific steering geometry requirements for Chrysler and Dodge vehicles such as the Dodge Dakota and Chrysler LeBaron. The coated finish helps resist corrosion, extending the service life of the part. Both ends have male threaded studs with precise thread diameters (0.563" and 0.5") and thread pitches (18 and 20 threads per inch), ensuring secure fitment. The chloroprene rubber dust boot safeguards the internal plastic bearing from dirt and moisture, while the included grease fitting allows for easy lubrication to maintain smooth operation.

Compatible Vehicles and Applications

This Delphi steering tie rod end TA2309 is compatible with a range of Chrysler and Dodge models, including:

• Chrysler Aspen, Fifth Avenue, Imperial, LeBaron, Magnum, Monaco, Newport, New Yorker, Town & Country
• Dodge Challenger, Charger, Dakota, Dart

It is designed as a standard replacement part to restore proper steering function and alignment on these vehicles.

Common Issues Addressed by TA2309 Tie Rod End

• Steering play or looseness causing imprecise handling
• Uneven tire wear due to misalignment
• Noise or clunking sounds from worn tie rod ends
• Difficulty maintaining vehicle alignment
• Vibration or instability during driving

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Use included mounting hardware for proper torque specifications
• Verify thread directions and diameters match vehicle requirements
• Grease fitting allows for lubrication after installation to prolong part life
• Check alignment after installation to ensure proper steering geometry

Quality Assurance and Warranty

Delphi manufactures the TA2309 tie rod end to meet standard replacement grade specifications, using high strength steel and durable materials for reliable performance. The part comes pre-greased and includes a dust boot and grease fitting to support maintenance. While specific warranty details may vary, Delphi parts typically carry coverage against manufacturing defects to ensure customer confidence in product quality.
