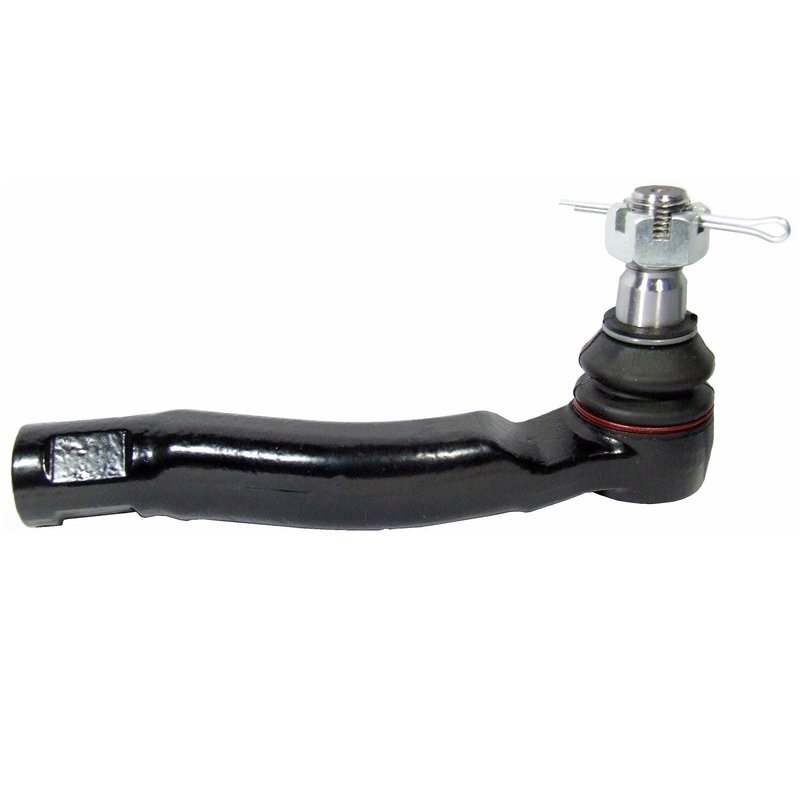

Delphi TA2369 Steering Tie Rod End - Right Outer
| Brand | Delphi TA2369 |
|---|---|
| Position | Right Outer |
| Adjustable | Yes |
| Bearing Material | Polyoxymethilen (POM) |
| Color | Black |
| Cone Outside Diameter | 20.0 |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| End 1 Gender | Female |
| End 1 Thread Diameter | 0.787 |
| End 1 Thread Diameter | 20.0 |
| End 1 Thread Direction | Clockwise |
| End 2 Gender | Male |
| End 2 Thread Diameter | 0.63 |
| End 2 Thread Diameter | 16.0 |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 |
| Friction Material Thickness | Coated |
| Grade | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 86.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length Stud Center to End | 6.909 |
| Length Stud Center to End | 175.5 |
| Mounting Hardware Included | Yes |
| Position(s) | Front Right Outer, Right Outer. For the position specific to your vehicle, refer to the Application tab. |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| Type | Bent |
| Weight | 2.17 |
| Width | 48.0 |
| Fits | Lexus and Toyota · 12 vehicles |
Standard replacement. OE expertise and dimensional analysis help match the original part.
Coated steel construction. Built with a steel housing and tie rod for durable steering performance.
Pre-greased design. Includes a dust boot and mounting hardware for easier installation.
Cross-references Beck/Arnley 101-4853, Mevotech Supreme MS86607 and MOOG Chassis Products ES800451 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TA2369 Steering Tie Rod End
Delphi TA2369 is a front right outer steering tie rod end built for direct replacement on select Lexus LX470 and Toyota Land Cruiser applications. It combines OE-based dimensional analysis with tested materials to support precise steering response and consistent fitment.
Key Features
- Steering tie rod end for the front right outer position
- Pre-greased design with dust boot included
- Steel housing and steel tie rod construction
- Coated black finish for added surface protection
- Adjustable design with threaded stud connection
- Mounting hardware included
- Standard replacement grade
Application Details
Compatible with 2003-2007 Lexus LX470, right outer; 2004-2007 Toyota Land Cruiser, right outer; 2002-2003 Toyota Land Cruiser, right outer from 08/2002; and 2002 Lexus LX470, right outer from 08/2002. Delphi TA2369 is engineered around OE dimensions and material specifications to help maintain proper steering geometry on these vehicles.
This part cross-references MOOG Chassis Products ES800451 for the same application.
What It Helps Address
- Loose or vague steering feel at the front end
- Uneven tire wear caused by worn steering linkage components
- Clunking or play from a worn outer tie rod end
- Steering alignment issues after component wear
- Restoration of steering response on Lexus LX470 and Toyota Land Cruiser models
Installation Notes
Verify the front right outer position before installation and confirm thread direction, thread diameter, and stud dimensions against the removed part. After replacement, perform a wheel alignment to set steering geometry correctly. Delphi TA2369 includes a dust boot and is pre-greased, which supports installation on service-ready steering repairs.
Quality Assurance
Delphi applies OE-focused testing and dimensional analysis to its steering portfolio. This tie rod end is evaluated for temperature extremes and salt-spray exposure to support durability in demanding road conditions, while matching OE-style compatibility requirements for the listed Lexus and Toyota applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Lexus | LX470 | Right Outer | — |
| 2007 | Toyota | Land Cruiser | Right Outer | — |
| 2006 | Lexus | LX470 | Right Outer | — |
| 2006 | Toyota | Land Cruiser | Right Outer | — |
| 2005 | Lexus | LX470 | Right Outer | — |
| 2005 | Toyota | Land Cruiser | Right Outer | — |
| 2004 | Lexus | LX470 | Right Outer | — |
| 2004 | Toyota | Land Cruiser | Right Outer | — |
| 2003 | Lexus | LX470 | Right Outer | — |
| 2003 | Toyota | Land Cruiser | Right Outer | From 08/2002 |
| 2002 | Lexus | LX470 | Right Outer | From 08/2002 |
| 2002 | Toyota | Land Cruiser | Right Outer | From 08/2002 |
