Delphi TA2394 Steering Tie Rod End - Outer
OE Quality 60-Day Returns
Delphi

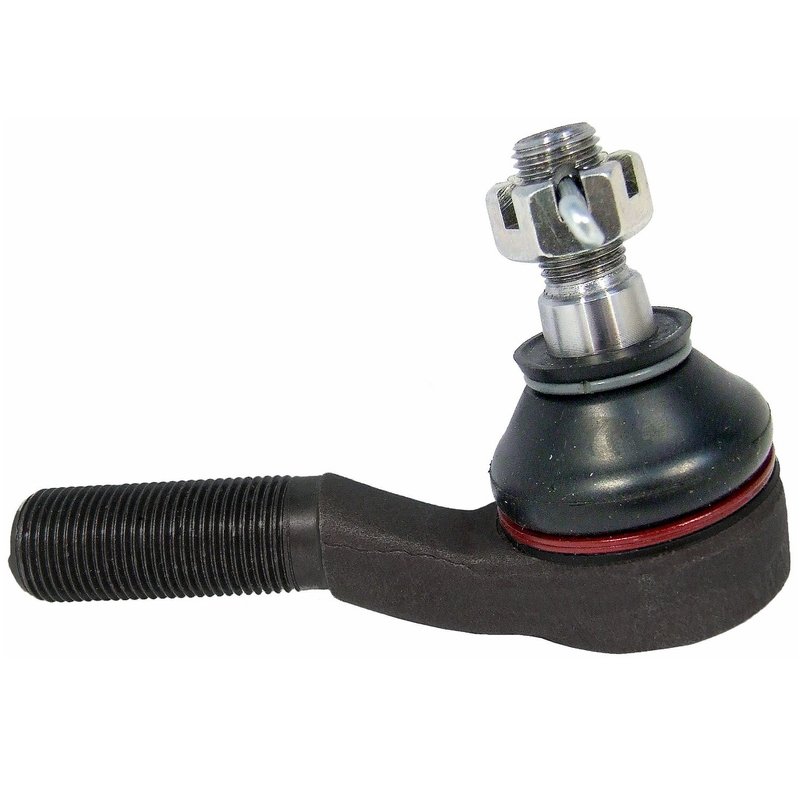

Delphi TA2394 Steering Tie Rod End - Outer

Brand Delphi TA2394
Position Outer
Adjustable Yes
Bearing Material Polyoxymethilen (POM)
Color Black
Cone Outside Diameter 16.4
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Thread Diameter 0.709
End 1 Thread Diameter 18.0
End 1 Thread Direction Counterclockwise
End 2 Gender Male
End 2 Thread Diameter 0.472
End 2 Thread Diameter 12.0
End 2 Thread Direction Clockwise
End 2 Thread Pitch 1.25
Friction Material Thickness Coated
Grade Standard
Grease Fitting Included No
Greaseable No
Height 74.0
Housing Material Steel
Item Grade Standard Replacement
Length Stud Center to End 3.74
Length Stud Center to End 95.0
Mounting Hardware Included Yes
Position(s) Front Outer
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Straight
Weight 0.86
Width 40.0
Fits Nissan · 7 vehicles

OE expertise. Delphi applies OE engineering to its aftermarket steering parts.

Coated steel construction. Helps resist wear while maintaining a precise steering connection.

Pre-greased design. Ready for installation with a dust boot and mounting hardware included.

Cross-references Mevotech Supreme MES80589, MOOG Chassis Products ES80589 and 101-4748 for the same application. See all 10.

$29.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $29.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Front Outer Tie Rod End for Nissan Frontier

Delphi TA2394 is a front outer steering tie rod end built for OE-style replacement on select Nissan Frontier models. It combines a steel housing, coated finish, pre-greased construction, and a dust boot to support precise steering response and consistent joint protection.

Fits 1998-2004 Nissan Frontier, outer. Delphi applies OE-focused dimensional and material analysis to help match the original part’s fit and function for this application.

Key Features

  • Front outer steering tie rod end for Nissan Frontier applications
  • Delphi part number TA2394
  • Steel housing with coated finish
  • Pre-greased design for ready-to-install service
  • Dust boot included to help protect the joint
  • Adjustable straight design
  • Mounting hardware included
  • Standard replacement grade

Detailed Description

Delphi TA2394 is engineered as a standard replacement steering tie rod end for the front outer position on 1998-2004 Nissan Frontier models. The straight, adjustable design supports proper steering linkage setup, while the steel tie rod and housing provide a durable foundation for everyday road use. A chloroprene rubber dust boot and POM bearing material help protect the joint and maintain smooth movement. Delphi TA2394 also cross-references MOOG ES80589 and Mevotech Supreme MES80589 for the same application.

Common Issues This Part Can Address

  • Loose or vague steering feel at the front end
  • Excessive play in the outer steering linkage
  • Uneven tire wear caused by worn steering components
  • Clunking or knocking from the front suspension and steering area
  • Difficulty maintaining alignment after steering wear develops

Installation Notes and Tips

Verify thread direction, thread diameter, and overall dimensions before installation. This front outer tie rod end uses a male end 2 with a 12.0 mm thread diameter and a clockwise thread direction on end 2, along with a counterclockwise thread direction on end 1. After installation on a Nissan Frontier, a professional wheel alignment is recommended to restore correct steering geometry.

Quality Assurance

Delphi uses OE-based engineering and extensive dimensional and material analysis for aftermarket steering parts. This tie rod end is tested across extreme temperature ranges and salt-spray exposure to evaluate durability in demanding conditions.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2004NissanFrontierRWDOuter—
2003NissanFrontierRWDOuter—
2002NissanFrontierRWDOuter—
2001NissanFrontierRWDOuter—
2000NissanFrontierRWDOuter—
1999NissanFrontierRWDOuter—
1998NissanFrontierRWDOuter—
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mevotech Supreme — MES80589MOOG Chassis Products — ES80589101-474848520-2S485D8520VK91AER02021ES4027JTE793NI-S608TO69155
