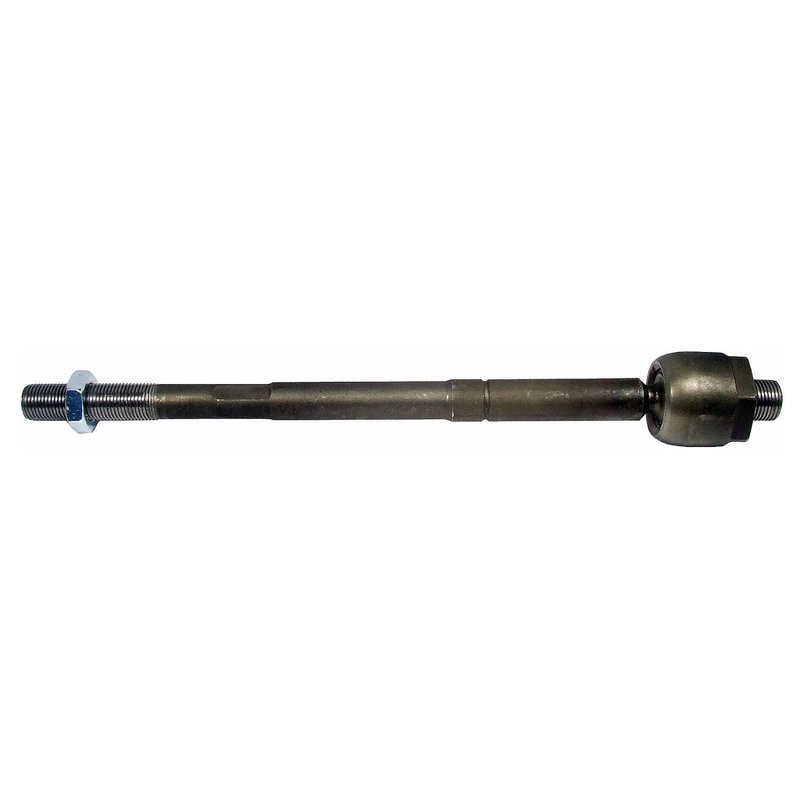

Delphi TA2496 Steering Tie Rod End - Inner

OE-Style Steering Tie Rod End

Delphi TA2496 is a standard replacement steering tie rod end built for front inner steering applications. It is engineered for vehicles that need precise steering linkage support, including Cadillac XTS, Buick LaCrosse, Buick Regal, Saab 9-5, and Buick Allure applications listed below.

Key Features

• Front inner steering tie rod end
• Male end 1 gender
• Standard replacement grade
• Mounting hardware included
• No grease fitting and no dust boot included
• Non-greaseable design
• Delphi OE-focused dimensional and material analysis for fit consistency
• Tested for temperature extremes and salt-spray exposure

Detailed Description

Delphi TA2496 is part of Delphi’s steering portfolio, which draws on OE safety and engineering experience used on millions of vehicles worldwide. This front inner tie rod end is built to match OE-style dimensions and material requirements for consistent steering linkage fitment. It is a direct service part for select Cadillac XTS, Buick LaCrosse, Buick Regal, Saab 9-5, and Buick Allure models with the steering configurations listed in the fitment data. This part cross-references MOOG Chassis Products EV800900 for the same application.

Vehicle Fitment

• Fits 2018-2019 Cadillac XTS, inner, Variable Effort Power Steering.
• Fits 2016-2017 Cadillac XTS, inner, without Performance Package.
• Fits 2014-2016 Buick LaCrosse, inner, 18mm Thread At Steering Gear; Variable Effort Power Steering.
• Fits 2010-2012 Buick LaCrosse, inner, 18mm Thread At Steering Gear; Variable Effort Power Steering.
• Fits 2014-2015 Cadillac XTS, inner, without Performance Handling Package.
• Fits 2013 Buick LaCrosse, inner, Non-Variable Hydraulic Steering; 18mm Thread At Steering Gear; Variable Effort Power Steering.
• Fits 2012-2013 Buick Regal, inner, without Performance Package.
• Fits 2013 Cadillac XTS, inner, without Performance Suspension.
• Fits 2011 Buick Regal, inner.
• Fits 2010-2011 Saab 9-5, inner, without Performance Handling Package.
• Fits 2010 Buick Allure, inner, without Performance Handling Package.
• Fits 2010 Buick LaCrosse, inner, without Performance Suspension.

Common Steering Issues Addressed

• Loose or vague steering response
• Excessive play in the steering linkage
• Uneven front-end steering feel
• Wear-related tie rod end replacement during suspension service
• Restoration of proper steering geometry after component wear

Installation Notes and Tips

Confirm steering gear thread size, steering system type, and package-specific fitment before installation. Because this part is a front inner tie rod end, alignment should be checked after replacement to verify steering wheel centering and toe settings. Mounting hardware is included, while a grease fitting and dust boot are not.

Quality Assurance

Delphi applies OE-level testing and validation to its aftermarket steering parts. TA2496 is evaluated for temperature resistance below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray to assess durability in harsh conditions.
