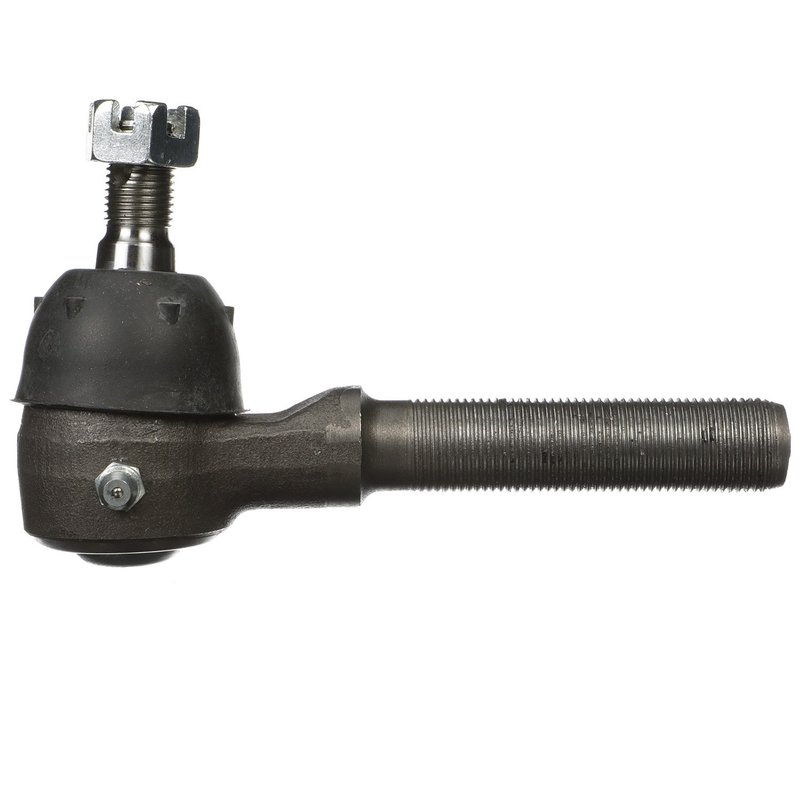

Delphi TA2540 Steering Tie Rod End - Right Inner
OE Quality 60-Day Returns
Delphi

Delphi TA2540 Steering Tie Rod End - Right Inner

Brand Delphi TA2540
Position Right Inner
Adjustable No
Bearing Material Plastic
Color Gray
Dust Boot Included Yes
Dust Boot Material Choloroprene Rubber (CR)
End 1 Gender Male
End 1 Thread Diameter 0.688
End 1 Thread Direction Clockwise
End 1 Threads Per Inch 18
End 2 Gender Male
End 2 Thread Diameter 0.5
End 2 Thread Direction Clockwise
End 2 Threads Per Inch 20
Friction Material Thickness Coated
Grade Standard
Grade Type Standard
Grease Fitting Included Yes
Greaseable Yes
Height 77.0
Housing Material High Strength Steel
Item Grade Standard Replacement
Length 134.0
Length Stud Center to End 115.0
Mounting Hardware Included Yes
Pre-Greased Yes
Stud Type Threaded
Tie Rod Material Steel
Type Straight
Weight 1.01
Width 38.0
Fits Jeep · 23 vehicles

Standard replacement. OE expertise and dimensional analysis help ensure compatibility.

Coated steel construction. Built with high-strength steel and a corrosion-resistant finish.

Greaseable design. Pre-greased with a grease fitting and dust boot included.

Cross-references Mevotech Supreme MES2223R, Pure Energy T2223 and 52000599 for the same application. See all 4.

$28.94Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $28.94
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Tie Rod End options

Delphi TA2540 Steering Tie Rod End

Delphi TA2540 is a right inner steering tie rod end built for OE-style steering performance and direct replacement service. It is engineered for Jeep Cherokee, Comanche, Wagoneer, and Wrangler applications with a straight, greaseable design and included dust boot.

Key Features

  • Right inner steering tie rod end for select Jeep steering systems
  • Straight, standard replacement design
  • Pre-greased with grease fitting included
  • Dust boot included for added joint protection
  • High-strength steel housing with coated finish
  • Threaded stud design with clockwise thread direction on both ends
  • Mounting hardware included
  • Delphi part number TA2540

Detailed Description

Delphi TA2540 is a steering tie rod end for the right inner position on 1984-1990 Jeep Cherokee, 1986-1990 Jeep Comanche, 1984-1990 Jeep Wagoneer, and 1987-1990 Jeep Wrangler. This Delphi TA2540 replacement uses a steel tie rod body, high-strength steel housing, and a chloroprene rubber dust boot to support steering linkage service in demanding conditions. Delphi applies OE-level dimensional and material analysis to help ensure proper part matching for the intended application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Loose or imprecise steering feel at the right inner linkage
  • Clunking or play from a worn tie rod end
  • Uneven steering response caused by joint wear
  • Contamination entering the steering joint through a damaged boot
  • Service replacement needs on Jeep Cherokee, Comanche, Wagoneer, and Wrangler steering systems

Installation Notes and Tips

Verify right inner position, thread direction, and thread size before installation. After replacing the tie rod end, inspect the full steering linkage and perform a professional wheel alignment to restore correct toe settings. Confirm fitment against the vehicle year, model, and steering configuration before service.

Quality Assurance

Delphi subjects steering components to extreme temperature and corrosion testing, including sub-zero and high-heat exposure plus extended salt-spray testing. This OE-focused validation supports consistent fitment and durability for Jeep Cherokee, Comanche, Wagoneer, and Wrangler steering repair applications.

Related reading

This part fits 23 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1990JeepCherokeeRight Inner—
1990JeepComancheRight Inner—
1990JeepWagoneerRight Inner—
1990JeepWranglerRight Inner—
1989JeepCherokeeRight Inner—
1989JeepComancheRight Inner—
1989JeepWagoneerRight Inner—
1989JeepWranglerRight Inner—
1988JeepCherokeeRight Inner—
1988JeepComancheRight Inner—
1988JeepWagoneerRight Inner—
1988JeepWranglerRight Inner—
1987JeepCherokeeRight Inner—
1987JeepComancheRight Inner—
1987JeepWagoneerRight Inner—
1987JeepWranglerRight Inner—
1986JeepCherokeeRight Inner—
1986JeepComancheRight Inner—
1986JeepWagoneerRight Inner—
1985JeepCherokeeRight Inner—
1985JeepWagoneerRight Inner—
1984JeepCherokeeRight Inner—
1984JeepWagoneerRight Inner—
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Mevotech Supreme — MES2223RPure Energy — T222352000599ES2223R
