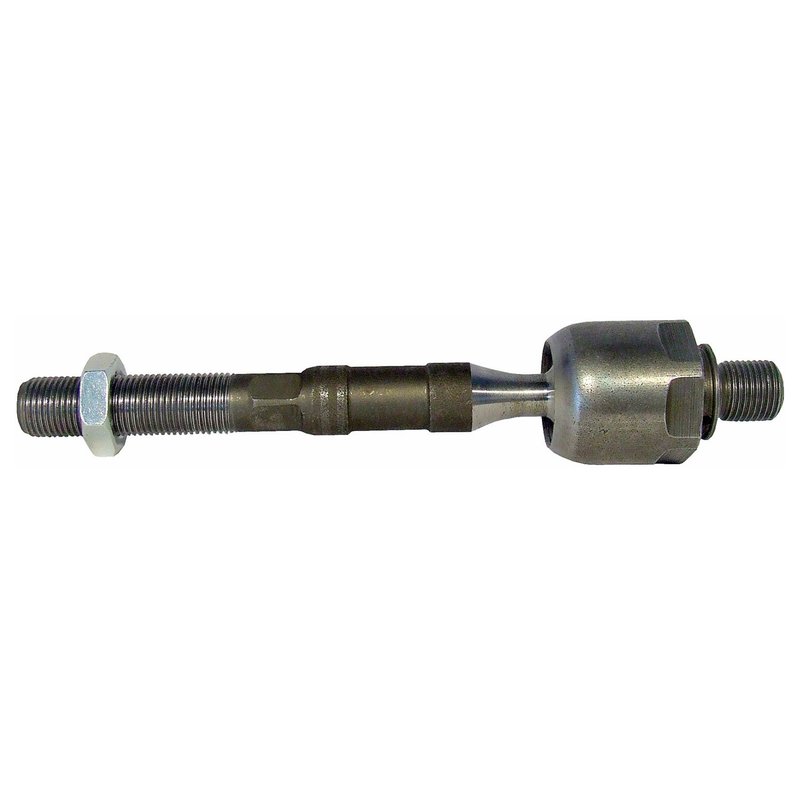

Delphi TA2658 Steering Tie Rod End - Inner

Delphi TA2658 Steering Tie Rod End

Delphi TA2658 is a front inner steering tie rod end built as a standard replacement for select Hyundai and Kia applications. It uses a straight, adjustable steel design with pre-greased construction and coated finish for service-ready steering repair.

Key Features

• Front inner steering tie rod end for steering linkage service
• Fits 2006-2011 Hyundai Azera, inner
• Fits 2006-2010 Hyundai Sonata, inner
• Fits 2007-2009 Kia Amanti, inner
• Fits 2004-2005 Hyundai Sonata, inner, from 03/01/2005
• Steel housing and steel tie rod construction
• Adjustable straight design for alignment correction
• Pre-greased, with no grease fitting and no dust boot included
• Clockwise thread direction on both ends
• Mounting hardware included

Detailed Description

Delphi TA2658 is engineered for front inner steering service where precise linkage geometry matters. The part features male ends, 16.0 mm thread diameter at both ends, a 1.5 thread pitch on the end 2 side, and a stud-center-to-end length of 147.0 mm (5.787 in). Its coated steel housing and steel tie rod are paired with a POM bearing material to support consistent steering movement in replacement applications. Delphi applies OE-level dimensional and material analysis to help match the original part profile for Hyundai Azera, Hyundai Sonata, and Kia Amanti steering repairs. This part cross-references MOOG Chassis Products EV800345 for the same application.

Common Repair Uses

• Restores steering linkage response after tie rod wear
• Addresses looseness or play in the front inner steering system
• Helps correct steering pull after suspension or alignment work
• Replaces damaged or corroded inner tie rod components
• Supports accurate toe adjustment during front-end service

Installation Notes and Tips

Verify the vehicle application by year, make, model, and inner position before installation. Because this is an adjustable steering component, a professional wheel alignment is required after replacement. Confirm thread direction, thread diameter, and overall length against the original part before assembly. For 2004-2005 Hyundai Sonata applications, confirm the build date note of from 03/01/2005.

Quality Assurance

Delphi tests steering components across extreme temperature and corrosion conditions, including exposure below -40 degrees C, above 120 degrees C, and extended salt-spray testing. The brand also uses dimensional and material analysis to support OE-style fit and function in aftermarket steering repairs.
